Summary of Contents for jWIN JX-CD483

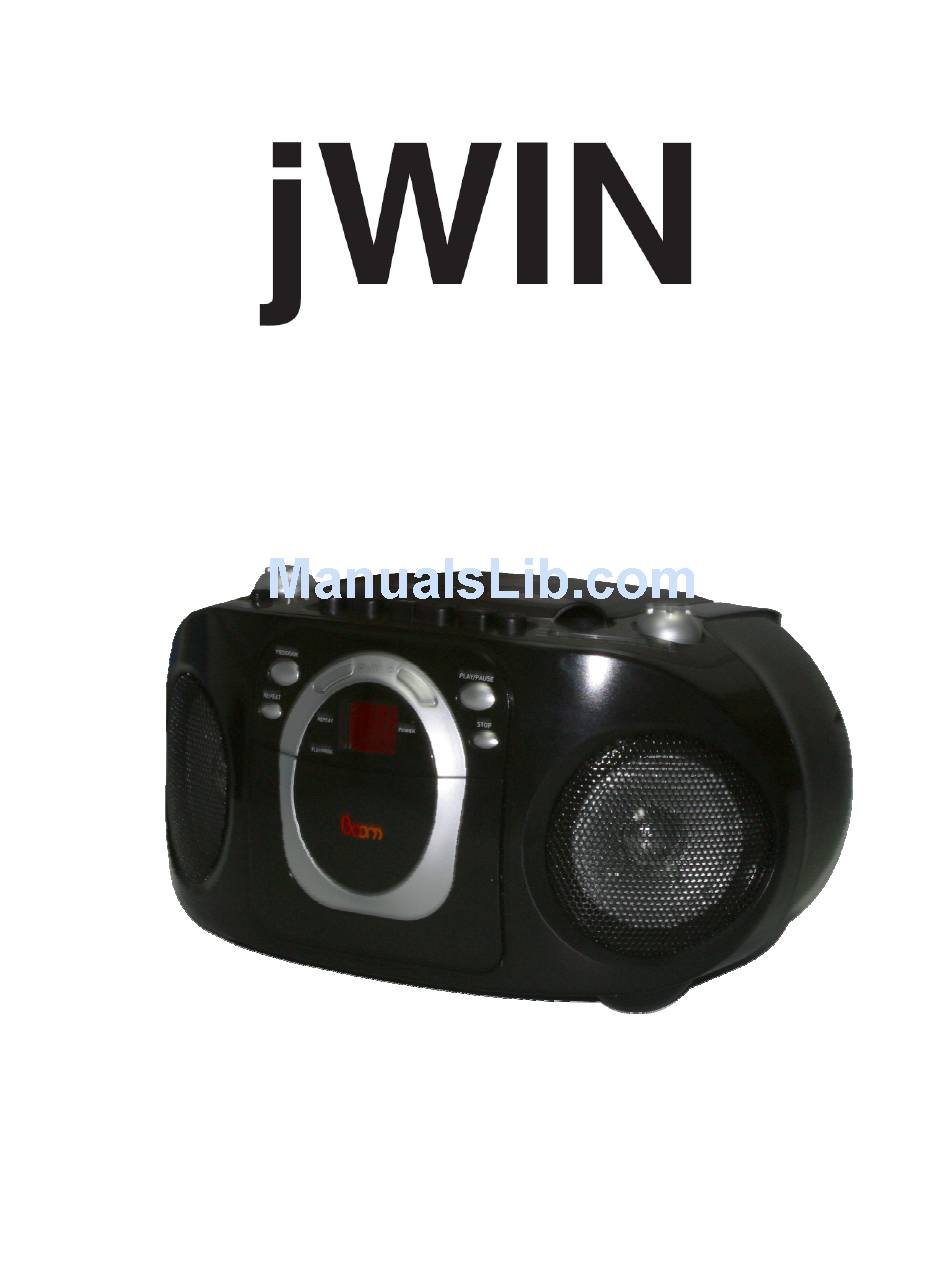

- Page 1 Portable CD player with Cassette and AM/FM Radio Instruction Manual JX-CD438 Please read this manual carefully before operating and save it for future reference. Have a question? Please visit http://www.jWIN.com...
-
Page 2: Important Safety Instructions
Portable CD Radio Cassette Recorder USER SAFETY GIUDE IMPORTANT SAFETY INSTRUCTIONS WARNING: To prevent fire or shock hazard, do not expose this appliance to rain or moisture. These markings are located on the bottom, side or back of the unit. CAUTION: To prevent the risk of electric shock, do not remove cover (or back). -
Page 3: Important Safety Precautions
Portable CD Radio Cassette Recorder USER SAFETY GIUDE INSTRUCTIONS ON ENVIRONMENT PROTECTION Do not dispose of this product in the usual household garbage at the end of its life cycle; bring it to a collection point for the recycling of electrical and electronic appliances. -
Page 4: Fcc Notice (Usa)
Portable CD Radio Cassette Recorder USER SAFETY GIUDE IMPORTANT SAFETY PRECAUTIONS – CONTINUED 14. OBJECT and LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the device’s openings. 15. CARTS AND STANDS - The appliance should be used only with a cart or stand that is recommended by the manufacturer. -
Page 5: Table Of Contents
Portable CD Radio Cassette Recorder TABLE OF CONTENTS Getting Started Introduction ……………………………………………………………………… Location of Controls for unit …………………………………………………… AC operation…………………………………………………………………….. Battery operation………………………………………………………………... FM Antenna……………………………………………………………………… Operational Instructions Listening to the Radio…..……………... Listening to Cassettes…………………………………... Recording to Cassettes………………………….……………………………. Listening to CDs……………………………………………………………….. Audio CD Playback…………………………………………………………… Play/Pause Mode………………………………………………………………. -
Page 6: Getting Started
We recommend that you retain the original carton and packaging materials for future use, should you transport or ship the unit in the future. Portable stereo audio system • Fully Programmable Stereo CD Player • Digital LED Display for CD •... -
Page 7: Location Of Controls
Portable CD Radio Cassette Recorder V10M10_IM_EN_11282007 GETTING STARTED Location of Controls - 6 - www.jWIN.com... -
Page 8: Ac Operation
Portable CD Radio Cassette Recorder GETTING STARTED Location of Controls-continued 1. HANDLE 2. FM ANTENNA 3. CD DOOR 4. VOLUME CONTROL KNOB 5. AM / FM / CD / TAPE SWITCH 6. CASSETTE PAUSE BUTTON 7. CASSETTE STOP / EJECT BUTTON 8. -
Page 9: Listening To The Radio
Portable CD Radio Cassette Recorder OPERATING INSTRUCTIONS Listening to the Radio Slide the FUNCTION SWITCH to the AM or FM position. Turn the TUNING KNOB to your desired radio station. Adjust the sound level by rotating the VOLUME CONTROL KNOB. To turn off the radio, simply slide the FUNCTION SWITCH to TAPE position. -
Page 10: Operational Instructions
Portable CD Radio Cassette Recorder OPERATIONAL INSTRUCTIONS Audio CD Playback When the CD DOOR is closed and a CD is inside, the total number of the tracks in the disc show on the LED SCREEN and the PLAY/PROG indicator will light. If there has no disc inside, the LED SCREEN will display “... -
Page 11: Repeat Mode
Portable CD Radio Cassette Recorder OPERATIONAL INSTRUCTIONS REPEAT MODE Repeat 1: When the REPEAT button is pressed once, the REPEAT indicator light will blink continuously. This single track of music will be repeated. Repeat All: When the REPEAT button is pressed twice, the REPEAT indicator light will light. -
Page 12: Notes On Cds
Portable CD Radio Cassette Recorder MAINTENANCE Notes on CDs Before playing, clean the CD with a cleaning cloth. Wipe the CD from the center out to the ends. Do not use solvents such as benzine, thinner, commercially available cleaners or anti-static spray intended for vinyl LPs. -
Page 13: Troubleshooting Guide
Portable CD Radio Cassette Recorder TROUBLESHOOTING GUIDE When the instructions in this manual are followed, this unit should function properly. However, if any of the following difficulties occur and cannot be corrected by the user or if a problem arises that is not mentioned here, please contact jWIN Customer Service or a qualified service technician. -
Page 14: Specifications
Portable CD Radio Cassette Recorder SPECIFICATIONS • Audio Output: 1.2W (L) + 1.2W Total: 2.4W / 4.8W PEAK • Frequency Range AM: 530kHz – 1710kHz FM: 88MHz – 108MHz • Power Requirement AC 110V, 60Hz Battery: 12V (8 x “C” size or UM2 batteries, not included) •... - Page 15 Portable CD Radio Cassette Recorder V10M10_IM_EN_11282007 - 14 - www.jWIN.com...
- Page 16 TEL: 516-626-7188 FAX: 516-626-7105 website: www.jWIN.com © 2007 jWIN Electronics Corp. All rights reserved. No portion of this printed material or product enclosed herewith including design, shape and graphics, may be reproduced or transmitted in any form without prior written consent of jWIN Electronics Corp. by any means, electronic or mechanical, including photocopying, recording or use of an information storage and retrieval system.
