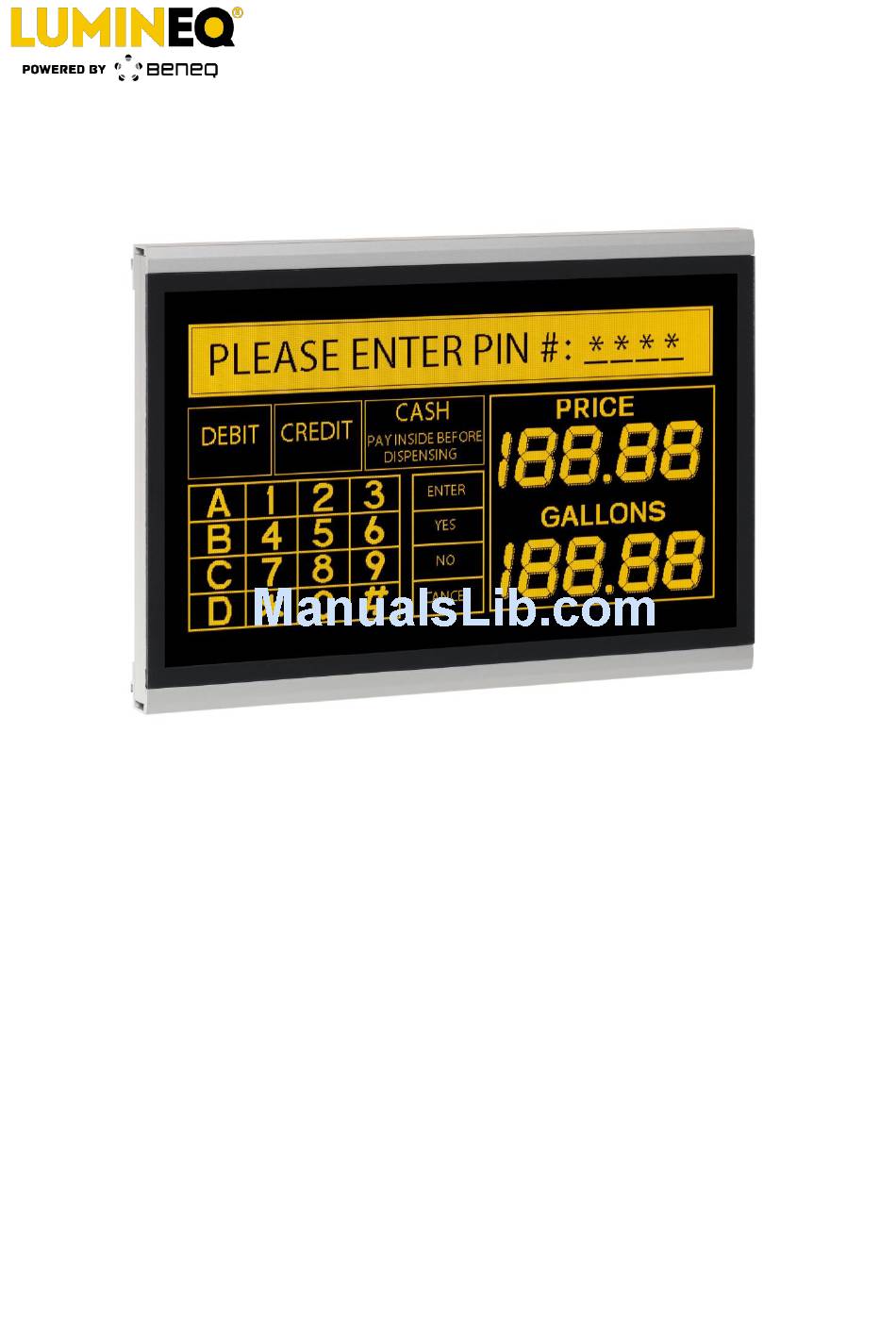

CD3 Display 1 Product profile The EL640.400-C2, -C3 and -CD3 displays are VGA-compatible high-resolution Thin Film Electroluminescent (TFEL) flat panel displays. They replace the bulky CRT in control and instrument product designs. They feature an integrated DC/DC converter, and their compact dimensions save space that allows addition of features or reduction in overall size.
In the EL640.400-C2, -C3 and -CD3, the 640 column electrodes and 400 row electrodes are arranged in an X-Y formation with the intersecting areas performing as pixels. Voltage is applied to both the correct row electrode and the correct column electrode to cause a lit pixel.
Operation Manual EL640.400-C2, -C3 and - CD3 Display Input to the display Table 1. Input to the display Pins Signal Symbol Description J1(Data/power input connector) 1, 2 Voltage Supply voltage (+11 V …+30 V) converted to required internal high voltages (see J2).
Operation Manual EL640.400-C2, -C3 and - CD3 Display Pins Signal Symbol Description Low Power _LOWPWR The power consumption of the display is lowered to LOW-POWER-OPERATION values if the _LOWPWR is low, internally pulled high if left disconnected. Enable ENABLE The operation of the display unit is disabled if the ENABLE input is low, internally pulled high (enable) if left disconnected.
NOTE: Absolute maximum ratings are those values beyond which damage to the device may occur. The minimum and maximum specifications in this Operations Manual should be met, without exception, to ensure the long-term reliability of the display. Beneq does not recommend operation of the display outside these specifications.
200, 350 and 400 row VGA modes and normal mode is similar to normal mode in most Beneq displays. Timing mode is determined from a combination of the polarities of the VS and HS pulses and the _BLANK signal at the rising edge of the VS pulse and the polarities of VS and HS pulses at the rising edge of the _BLANK pulse.
Operation Manual EL640.400-C2, -C3 and - CD3 Display Support timing modes Table 5. Supported timing modes Type Text Char. Vsync Pixels Double Border mode format freq. (software) scan size (Hz) 0, 1 text 40 x 25 8 x 8 320 x 200...
Operation Manual EL640.400-C2, -C3 and - CD3 Display Display enable The display can be totally shut off for screen saving or power reduction by a LOW sate in the ENABLE control input. When disabled, the display stops scanning and only the DC/DC converter remains functional.
47 could be placed at each of the four signal line outputs of the transmitter in order to lower signal reflections. ELECTROSTATIC CAUTION: Beneq display use CMOS and power MOS-FET devices. These components are electrostatic-sensitive. Unpack, assemble and examine this assembly in a static-controlled area only.
Page 13
Operation Manual EL640.400-C2, -C3 and - CD3 Display Table 6. Video input timing, 350 row VGA modes Description Unit T1 Vertical Border T2 Vertical Front Porch T3 VS Pulse Width T4 Vertical Back Porch T5 Vertical Border HS pulses / VS...
Page 14
Operation Manual EL640.400-C2, -C3 and - CD3 Display Table 7. Video input timing, 400 row VGA modes Description Unit T1 Vertical Border T2 Vertical Front Porch T3 VS Pulse Width T4 Vertical Back Porch T5 Vertical Border HS pulses / VS...
1) Needed to display the last row and to change the frame. 2) Only rising edge is used. 3) If vertical positioning is needed, please contact Beneq. 4) If horizontal positioning is needed, please contact Beneq. 5) Video Clock VCLK should be kept running.
Operation Manual EL640.400-C2, -C3 and - CD3 Display 6 Operational specifications Environmental Table 10. Environmental characteristics Temperature Operating 0 °C …+55 °C –25 °C …+65 °C Non-operating –40 °C …+85 °C Operating survival –20 °C …+65 °C (no permanent damage) –40 °C …+65 °C (no permanent damage)
Operation Manual EL640.400-C2, -C3 and - CD3 Display Safety The display will not inhibit the end product from obtaining any of the following specifications: UL544, IEC 950 Optical Determined at 70 Hz frame rate at room temperature. 6.5.1 Display color Wide band amber (Zn:Mn) Table 11.
7 Mechanical characteristics Display external dimensions Figure 7 shows the mechanical dimensions of the standard EL640.400-C2, -C3 and -CD3 display unit. The display can also be delivered with optional FRA aluminium frames (see Figure 7). See Ordering Information on page 23.
Page 19
Operation Manual EL640.400-C2, -C3 and - CD3 Display CAUTION: The ambient temperature of the display should not be allowed to exceed the environmental specifications (see Table 10). In most applications, an air gap of approximately 5 mm is recommended (see mechanical drawings). Some applications may require, however, a larger air gap or cooling of the display unit in the system.
Page 20
Operation Manual EL640.400-C2, -C3 and - CD3 Display Figure 8. EL640.400-C2, -C3 and -CD3 back and side views (dimensions in mm) Beneq Products Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI25115461 FI-02200 Espoo Fax +358 9 7599 5310 www.beneq.com...
Page 21
Operation Manual EL640.400-C2, -C3 and - CD3 Display Figure 9. EL640.400-C2 FRA, -C3 FRA and -CD3 FRA back and side views (dimensions in mm) Beneq Products Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI25115461 FI-02200 Espoo Fax +358 9 7599 5310 www.beneq.com...
LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. 9 Easy to use There are many options available, which make Beneq flat panel displays easy to use, easy to interface, and easy to package. Call Beneq for complete information. Beneq Products Oy Olarinluoma 9 Tel.
This document is compiled and kept up-to-date as conscientiously as possible. Beneq cannot, however, guarantee that the data are free of errors, accurate or complete and, therefore, assumes no liability for loss or damage of any kind incurred directly or indirectly through the use of this document. The information in this document is subject to change without notice.
