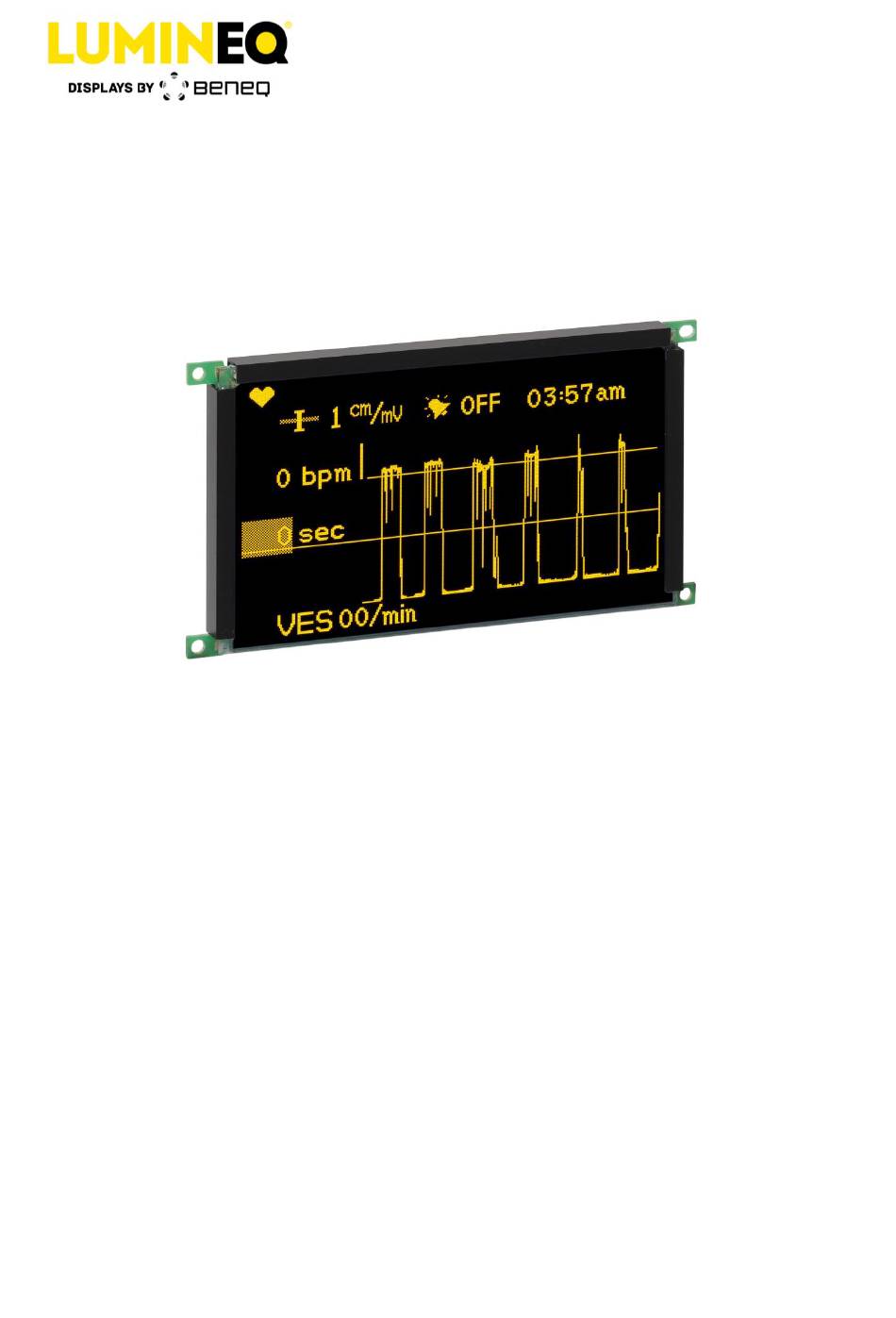

- Page 1 EL240.128.45 Operation Manual Small Graphics Display EL240.128.45 Operation Manual Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI19563372 FI-02200 Espoo Fax +358 9 7599 5310 www.beneq.com Finland lumineq@beneq.com www.lumineq.com Date: February 13, 2017 Document number: ED000810B Page | 1...
-
Page 2: Table Of Contents
Component envelope ........................16 Description of warranty ........................17 Ordering information .......................... 18 Support and service..........................18 RoHS II ............................. 18 Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI19563372 FI-02200 Espoo Fax +358 9 7599 5310 www.beneq.com... -
Page 3: El240.128.45 Display
CAUTION: To prevent injury in the event of glass breakage, an impact-resistant shield or a protective overlay should be used on the viewer side of the display. Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI19563372... -
Page 4: Mounting Tfel Displays
As with other light-emitting displays, displaying fixed patterns on the screen can cause burn- in where luminance variations can be noticed. Use a screensaver or image inversion to avoid causing burn-in on the display. Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530... -
Page 5: Specifications
Performance characteristics are guaranteed when measured at 25C with rated input voltage unless otherwise specified. Beneq does not recommend operation of the display outside these specifications. Table 1. DC input voltage requirements... - Page 6 0.8 x V Logic input current* – µA 10 (-2000) * Signals /WR, /CS, SEL1, /RD, SELFTEST, /RES have pull-up resistors (4.7 kΩ) Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI19563372 FI-02200 Espoo Fax +358 9 7599 5310 www.beneq.com...
-
Page 7: Connector
SEL1 Select Interface READY Display ready output Ground LUMA Luminance control Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI19563372 FI-02200 Espoo Fax +358 9 7599 5310 www.beneq.com Finland lumineq@beneq.com www.lumineq.com Date: February 13, 2017... -
Page 8: Interface Information
Pin 9: Chip select. This active-LOW input enables the RA8835A. It is usually connected to the output of an address decoder device that maps the RA8835A into the memory space of the controlling microprocessor. Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530... -
Page 9: Beneq Oy Olarinluoma
Pins 1 and 2: +12 V supply for DC-DC converter and display analog circuits. LUMA Pin 24: Luminance control input. Pins 3, 4, 12, and 23: Signal return for logic and power supplies. Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI19563372 FI-02200 Espoo Fax +358 9 7599 5310 www.beneq.com... -
Page 10: Video Input Signals
Data hold time RD access time ACC8 Output disable time All signals Tr, Tf Input rise and fall times Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI19563372 FI-02200 Espoo Fax +358 9 7599 5310 www.beneq.com Finland lumineq@beneq.com... - Page 11 Output disable time Access time ACC6 Enable pulse width All signals Tr, Tf Input rise and fall times Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI19563372 FI-02200 Espoo Fax +358 9 7599 5310 www.beneq.com Finland lumineq@beneq.com www.lumineq.com...
-
Page 12: Dimming
If the SELFTEST pin is pulled high during normal operation, the display will enter the self-test mode with the all-pixels-on pattern. Power-up sequence No special power-up or video sequencing is required. Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI19563372... -
Page 13: Optical
Command Description section of the RA8835 manual titled RA8835 Dot Matrix LCD Controller Specification. This document is available on the RAiO website at http://www.raio.com.tw/. Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI19563372... -
Page 14: Required Register Settings And Configuration Items
40 °C for 30 min., room temperature for ~3 min., then 85 °C for 30 min. Cycle repeated five times. Displays are non-operating during the tests performed per IEC 60068-2-14. Test Na. Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530... -
Page 15: Reliability
0.38 (0.015) height 0.38 (0.015) Pixel pitch millimeters (inches) horizontal 0.45 (0.018) nominal vertical 0.45 (0.018) nominal Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI19563372 FI-02200 Espoo Fax +358 9 7599 5310 www.beneq.com Finland lumineq@beneq.com www.lumineq.com... -
Page 16: Component Envelope
The component envelope shown in Figure 4 illustrates the distance the components extend behind the display. Tall components do not necessarily fill this area. Beneq reserves the right to relocate components within the constraints of the component envelope without prior customer notification. -
Page 17: Description Of Warranty
SELLER DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI19563372... -
Page 18: Ordering Information
This document is compiled and kept up-to-date as conscientiously as possible. Beneq cannot, however, guarantee that the data are free of errors, accurate or complete and, therefore, assumes no liability for loss or damage of any kind incurred directly or indirectly through the use of this document. The information in this document is subject to change without notice.
