Beneq Oy
Olarinluoma 9
FI-02200 Espoo
Finland
Date: February 13, 2017

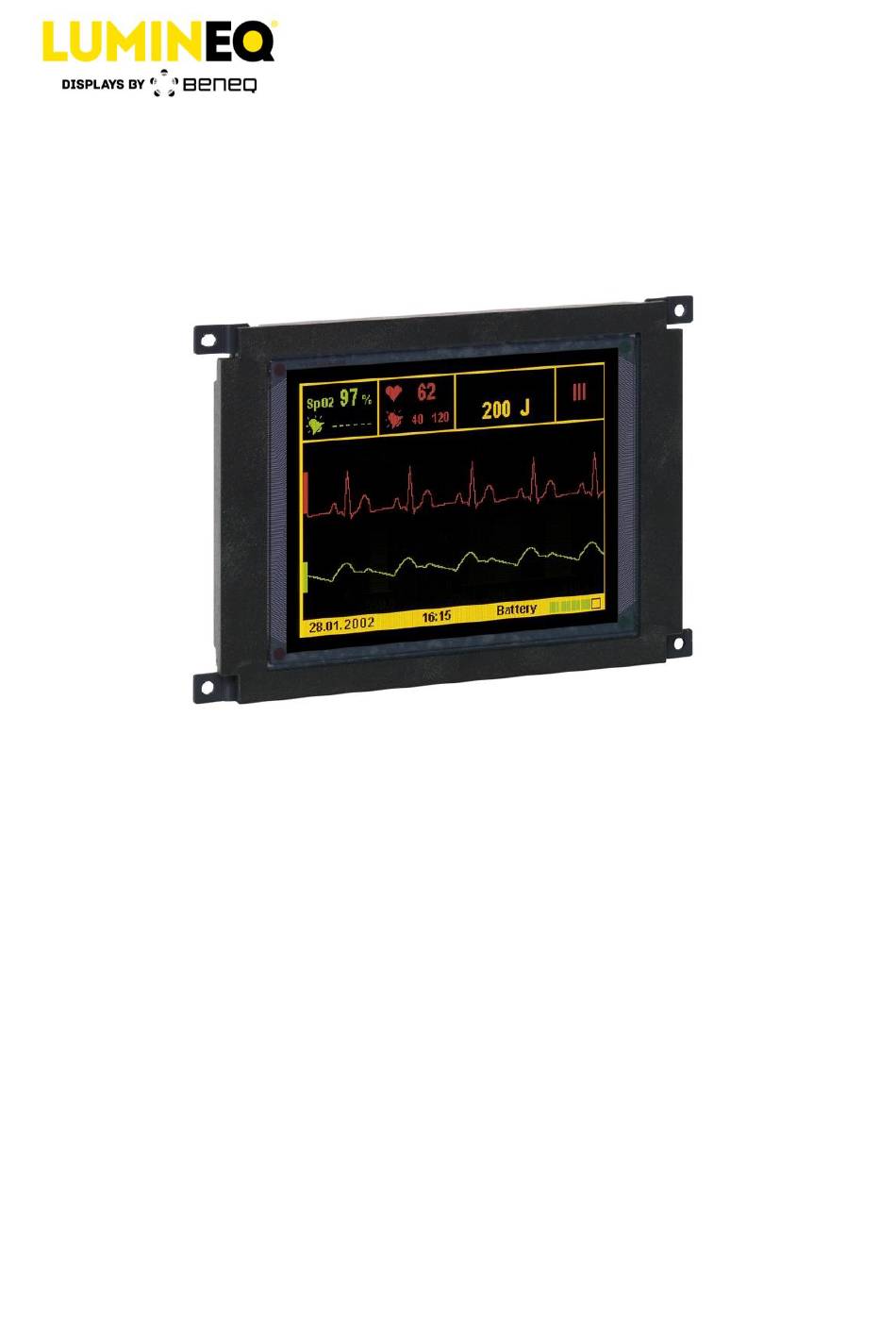

EL320.240-FA3
Multi-Color
QVGA TFEL Display
EL320.240-FA3
Operation Manual
Tel. +358 9 7599 530
Fax +358 9 7599 5310
lumineq@beneq.com
Document number: ED000813B
Operation Manual
VAT ID FI19563372
www.beneq.com
www.lumineq.com
Page | 1
Advertisement
Table of Contents
Related Manuals for beneq Lumineq EL320.240-FA3
Summary of Contents for beneq Lumineq EL320.240-FA3
- Page 1 EL320.240-FA3 Operation Manual Multi-Color QVGA TFEL Display EL320.240-FA3 Operation Manual Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI19563372 FI-02200 Espoo Fax +358 9 7599 5310 www.beneq.com Finland lumineq@beneq.com www.lumineq.com Date: February 13, 2017 Document number: ED000813B...
-
Page 2: Table Of Contents
Display dimensions and component envelope ................23 Description of warranty ........................25 Ordering information .......................... 25 Support and service..........................26 RoHS II ............................. 26 Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI19563372 FI-02200 Espoo Fax +358 9 7599 5310 www.beneq.com... -
Page 3: El320.240-Fa3 Multi-Color Qvga Display
Low cost of ownership: no maintenance, no lamps to replace AMLCD-type panel interface, 3 V and 5 V logic compatible RoHS compliance Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI19563372 FI-02200 Espoo Fax +358 9 7599 5310 www.beneq.com... -
Page 4: Installation And Set-Up
Note that the rate of image burn-in will slow over time so that most of the burned-in image effect occurs in the first few hundred hours of operation. Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530... -
Page 5: Power Supply And Video Sequencing And Overcurrent Protection
There is no overcurrent protection on V , the 12 V power input. To protect against catastrophic faults, Beneq recommends the use of a fuse or similar protection on the V input to the display. -
Page 6: Display Overlay Considerations
Some leading suppliers of display overlays are: EyeSaver International, Cyro Industries, and Dontech Incorporated. Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI19563372... -
Page 7: Specifications And Operation
LUM0 and LUM1 settings. Typically, the 100 °C limit may be reached if the 12 V input power exceeds 6 W with the ambient temperature for the display electronics above 80 °C. Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530... -
Page 8: Optical
“color sets” are distinct but similar to each other in appearance: 1 & 2, 3 & 7, 4 & 8, 7 & 11, 5 & 6 & 9 & 10, and 13 & 14. Beneq Oy Olarinluoma 9 Tel. - Page 9 Bright Neon .480,.521 Green .606,.393 Orange .535,.462 Bright .511,.485 Orange Yellow .497,.498 Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI19563372 FI-02200 Espoo Fax +358 9 7599 5310 www.beneq.com Finland lumineq@beneq.com www.lumineq.com Date: February 13, 2017 Document number: ED000813B...
-
Page 10: Power
2) Abs Max power: 80% of pixels lit (yellow) per row, worst case display sample 2) Typical power: pattern with 10% of pixels lit (yellow) per row, typical display 3) All power numbers are for LUMA open (no analog dimming) Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530... -
Page 11: Display Interface
Percentage of pixels turned on (yellow) per row Display interface The display supports 5 video interface modes: SGD timing as used on the Beneq EL320.240.36-HB (though with video data differences to denote colors) and the 4 AMLCD timing modes used on Sharp and Kyocera QVGA color displays (though using only 2 bits of red and green data). -
Page 12: Video Mode Selection
3) The AMLCD modes are compatible with those found on the following QVGA displays though the video data content of 4 bits/pixel is a subset of the typical 18 bits/pixel: Sharp LQ057Q3DC12, Sharp LQ057Q3DC02, Kyocera TCG057QV1AC. Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530... -
Page 13: Connector
Figure 1. Data/power connector Table 2. J1 Connector pin assignment Signal Signal LUMA LUM0 LUM1 VCLK SHUTDOWN Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI19563372 FI-02200 Espoo Fax +358 9 7599 5310 www.beneq.com Finland lumineq@beneq.com www.lumineq.com... -
Page 14: Display Input Descriptions
All display data will be stored but no new data accepted when SHUTDOWN is high. Internally pulled low. Signal return for power and logic. Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI19563372... -
Page 15: Video Mode Timing-Sgd Video Mode
VS hold after HS VS low setup to HS high HS period µs VS period HS periods VS frequency Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI19563372 FI-02200 Espoo Fax +358 9 7599 5310 www.beneq.com Finland lumineq@beneq.com... - Page 16 VCLK R/G data Data for First Pixel Vertical Timing First Line of Second Line of Pixel Data Pixel Data Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI19563372 FI-02200 Espoo Fax +358 9 7599 5310 www.beneq.com Finland lumineq@beneq.com...
-
Page 17: Video Mode Timing-Amlcd Video Mode, Qvga
Vertical Timing Line 1 Line 2 Line N vertical invalid data period R/G data data for first line Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI19563372 FI-02200 Espoo Fax +358 9 7599 5310 www.beneq.com Finland lumineq@beneq.com... -
Page 18: Video Mode Timing-Amlcd Video Mode, Qvga, Fixed
Vertical Timing Line 1 Line 2 Line N vertical invalid data period R/G data data for first line Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI19563372 FI-02200 Espoo Fax +358 9 7599 5310 www.beneq.com Finland lumineq@beneq.com... -
Page 19: Video Mode Timing-Amlcd Video Mode, Vga
Vertical Timing Line 1 Line 2 Line N vertical invalid data period R/G data data for first line Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI19563372 FI-02200 Espoo Fax +358 9 7599 5310 www.beneq.com Finland lumineq@beneq.com... -
Page 20: Video Mode Timing-Amlcd Video Mode, Vga, Fixed
Vertical Timing Line 1 Line 2 Line N vertical invalid data period R/G data data for first line Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI19563372 FI-02200 Espoo Fax +358 9 7599 5310 www.beneq.com Finland lumineq@beneq.com... -
Page 21: Dimming
LUM0 and LUM1 set for the minimum frame rate. See the following graph for the typical analog dimming response. Note that the actual response may vary depending on the individual display. Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530... -
Page 22: Self-Test Mode
Safety and EMI performance The display will not inhibit the end product from obtaining these certifications: IEC 60101-1; UL60950; CSA 22.2 IEC950; FCC Part 15, Subpart J, Class B; EN55022 Class B. Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530... -
Page 23: Mechanical Characteristics
12.19 mm in height (above the board surface.) While tall components are the minority, Beneq reserves the right to relocate components within the constraints of the component envelope without prior customer notification. - Page 24 Operation Manual EL320.240-FA3 Display Figure 2. Display dimensions (millimeters, ±0.25 mm) Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI19563372 FI-02200 Espoo Fax +358 9 7599 5310 www.beneq.com Finland lumineq@beneq.com www.lumineq.com Date: February 13, 2017 Document number: ED000813B...
-
Page 25: Description Of Warranty
Same as standard FA3, but with the electronics conformal coated (acrylic material: HumiSeal p/n 1B73) to minimize the effects of moisture and conductive debris Design and specifications are subject to change without notice. Beneq Oy Olarinluoma 9 Tel. +358 9 7599 530 VAT ID FI19563372 FI-02200 Espoo Fax +358 9 7599 5310 www.beneq.com... -
Page 26: Support And Service
This document is compiled and kept up-to-date as conscientiously as possible. Beneq cannot, however, guarantee that the data are free of errors, accurate or complete and, therefore, assumes no liability for loss or damage of any kind incurred directly or indirectly through the use of this document. The information in this document is subject to change without notice.
