- Page 1 User Manual Read and understand this manual before using machine. DELUXE AIR FILTER – 3 SPEED Model Number 65120 ® STEEL CITY TOOL WORKS Manual Part No. OR74185 VER. 8.07...
-
Page 3: Table Of Contents
This machine is not to be modified for any reasons. The drawings, illustrations, photographs, and specifications in this user manual represent your machine at time of print. However, changes may be made to your machine or this manual at any time with no obligation to Steel City Tool Works. -
Page 4: Warranty
STEEL CITY TOOL WORKS 5 YEAR LIMITED WARRANTY Steel City Tool Works, LLC (“SCTW”) warrants all “STEEL CITY TOOL WORKS” machinery to be free of defects in workmanship and materials for a period of 5 years from the date of the original retail purchase by the original owner. -
Page 5: Warranty Card
City:______________________________________________ ___ Vacuum Veneer Press ___ Wide Belt Sander Other____________________________________________ How did you first learn of Steel City Tool Works? ___ Advertisement ___ Mail Order Catalog 11. Which benchtop tools do you own? Check all that apply. ___ Web Site... - Page 6 FOLD ON DOTTED LINE PLACE STAMP HERE Steel City Tool Works P.O. Box 10529 Murfreesboro, TN 37129 FOLD ON DOTTED LINE...
-
Page 7: Product Specifications
’ x 8’) ACCESSORIES AND ATTACHMENTS WARNING Use only accessories recommended for this machine. Contact your local Steel City dealer for accessories, or Using other accessories may cause serious injury and visit our website at : www.steelcitytoolworks.com. cause damage to the machine. -
Page 8: Feature Identification

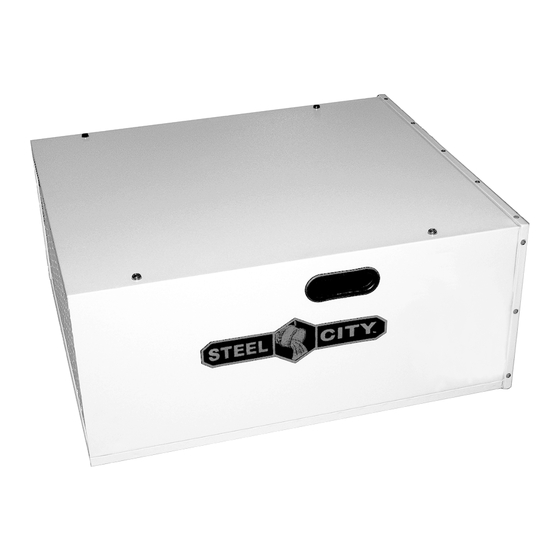

FEATURE IDENTIFICATION Fig. 1-1 A. Air Filter B. Handle C. Eye-bolt D. Outer Electrostatic Pre-Filter E. Intake Side F. Exhaust Side... -
Page 9: General Safety
GENERAL SAFETY WARNING WARNING TO AVOID serious injury and damage to the machine, read and follow all Safety and Operating Instructions before assembling and operating this machine. This manual is not totally comprehensive. It does not Exposure to the dust created by power sanding, saw- and can not convey every possible safety and opera- ing, grinding, drilling and other construction activities tional problem which may arise while using this... - Page 10 10. SECURELY anchor this unit into a supporting struc- WARNING ture when suspending it from the ceiling. Always keep a minimum of 7 feet between the bottom of the unit and the floor surface to allow for sufficient head clearance. Use only a chain rated for a mini- mum of 150 lb.
-
Page 11: Product Safety
Regulations (OSHA). All electrical connections and wiring should be made by qualified personnel only. 12. USE only as described in this manual. USE acces- sories only recommended by Steel City. WARNING 13. DO NOT pull the air filter by the power cord. -
Page 12: Electrical Requirements
ELECTRICAL REQUIREMENTS TO REDUCE the risk of electrical shock, DO NOT use WARNING machine outdoors. DO NOT expose to rain. Store TO PREVENT electrical shock, follow all electrical and indoors in a dry area. safety codes, including the National Electrical Code DO NOT connect the machine to the power source (NEC) and the Occupational Safety and Health before you have completed the set up process. - Page 13 EXTENSION CORDS Fig. 1-1 WARNING To reduce the risk of fire or electrical shock, use the proper gauge of extension cord. When using an extension cord, be sure to use one heavy enough to carry the current your machine will draw. The smaller the gauge-number, the larger the diameter of the extension cord is.
-
Page 14: Unpacking & Inventory
This Air Filter will require a minimal amount of assembly. have been obtained and installed correctly. For missing parts, contact Steel City at 1-877-SC4-TOOL. Remove all of the parts from the shipping box and lay CAUTION: Make certain shipping blocks have been them on a clean work surface. -
Page 15: Assembly
ASSEMBLY STATIONARY UNIT ASSEMBLY WARNING WARNING DO NOT assemble the Air Filter until you are sure the tool IS NOT plugged in. THIS TOOL WEIGHS APPROXIMATELY 55 POUNDS. assemble the Air Filter until you are sure MAKE CERTAIN THE UNIT IS SECURELY SUPPORT- DO NOT the power switch is in the "OFF"... - Page 16 1. The Air Filter must be supported by joists or concrete Figure 2-2 shows one of the four eye-bolts (E) ceiling which can hold a minimum 150 pounds assembled to the top of the Air Filter. NOTE : working load. If the joists are covered by sheet rock, adjust the height of the Air Filter, loosen flange nuts press board or other covering, use stud finder to (F) and rotate eye-bolts as necessary.
-
Page 17: Operations
OPERATIONS CAUTION: Make certain shipping blocks have been Fig. 2-1 removed from between cabinet and blower assembly, before unit is turned on. FUNCTION This Air Filter is furnished with two filters: an outer pre-filter which filters particles that are five microns and larger, and a secondary disposable three-pocket inner filter that captures 91% of the dust particles that are one micron and larger (one micron = one millionth of... -
Page 18: Maintenance
Repairs to the Air Filter should be performed by filter. The outer pre-filter can be cleaned in one of trained personnel only. Contact your nearest Steel City three methods. Method one is using a shop vacuum to remove the dust. Method two is by using com- Authorized Service Center for authorized service. -
Page 19: Troubleshooting Guide
TROUBLESHOOTING GUIDE TO PREVENT INJURY TO YOURSELF or damage to the Air Filter, turn the switch to the “OFF” position and unplug the power cord from the electrical receptacle before making any adjustments. PROBLEM LIKELY CAUSE(S) SOLUTION Motor does not 1. - Page 20 PARTS...
-
Page 21: Parts List
SC10003 CIRCUITRY PLANK COVER OR70253 CABINET ASSEMBLY SC71001 WIRE NUT CE-2 OR91341 SC72001 PROTECTOR, 4AMP OR70003 STEEL CITY LABEL OR90601 INTAKE WARNING LABEL SC81601 5/16-18 RIVET NUT SC80402 M4 x 12mm PAN HEAD TAP SCREW SC10005 INLET GUARD OR91324 1/4-20 x 5/8" HEX HEAD SCREW... - Page 22 x NOTES x...
