Summary of Contents for Steel City 65120

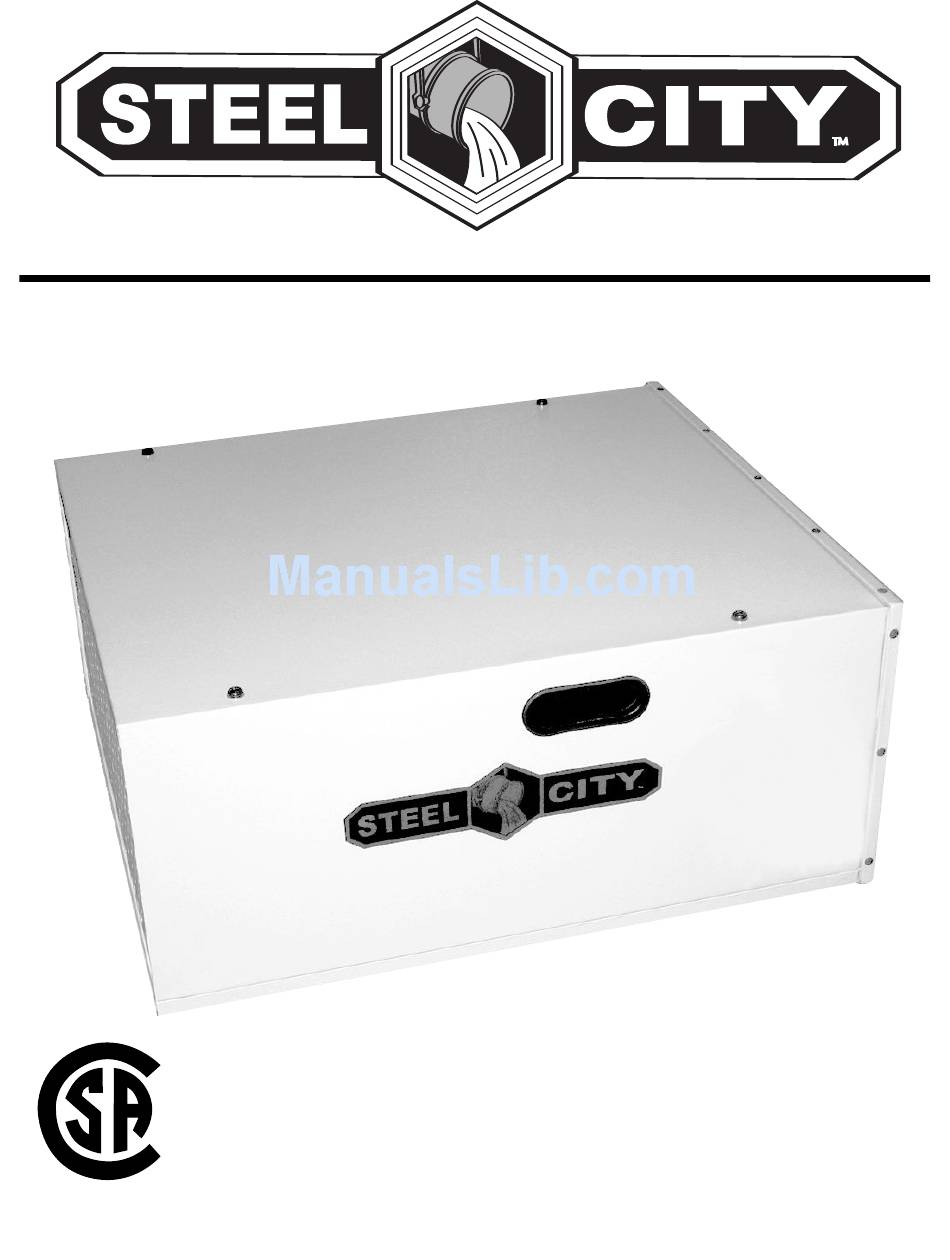

- Page 1 User Manual Read and understand this manual before using machine. DELUXE AIR FILTER – 3 SPEED Model Number 65120 ® STEEL CITY TOOL WORKS Manual Part No. OR74185 VER. 3.08...
-
Page 3: Table Of Contents
This machine is not to be modified for any reasons. The drawings, illustrations, photographs, and specifications in this user manual represent your machine at time of print. However, changes may be made to your machine or this manual at any time with no obligation to Steel City Tool Works. -
Page 4: Warranty
2 YEAR LIMITED WARRANTY Steel City Tool Works, LLC (SCTW) warrants this SCTW machinery to be free of defects in workmanship and materials for a period of 2 years from the date of the original retail purchase by the original owner for domestic use. Granite components are warranted for 2 years based on normal use and is void if non SCTW accessories are used that cause the break or chip. - Page 5 City:______________________________________________ ___ Vacuum Veneer Press ___ Wide Belt Sander Other____________________________________________ How did you first learn of Steel City Tool Works? ___ Advertisement ___ Mail Order Catalog 11. Which benchtop tools do you own? Check all that apply. ___ Web Site...
- Page 6 FOLD ON DOTTED LINE PLACE STAMP SteelCityToolWorks #4 Northpoint Court Bolingbrook, IL 60440 FOLD ON DOTTED LINE...
-
Page 7: Product Specifications
’ x 8’) ACCESSORIES AND ATTACHMENTS WARNING Use only accessories recommended for this machine. Contact your local Steel City dealer for accessories, or Using other accessories may cause serious injury and visit our website at : www.steelcitytoolworks.com. cause damage to the machine. -
Page 8: Feature Identification
FEATURE IDENTIFICATION Fig. 1-1 A. Air Filter B. Handle C. Eye-bolt D. Outer Electrostatic Pre-Filter E. Intake Side F. Exhaust Side... -
Page 9: General Safety
GENERAL SAFETY WARNING WARNING TO AVOID serious injury and damage to the machine, read and follow all Safety and Operating Instructions before assembling and operating this machine. This manual is not totally comprehensive. It does not Exposure to the dust created by power sanding, saw- and can not convey every possible safety and opera- ing, grinding, drilling and other construction activities tional problem which may arise while using this... - Page 10 10. SECURELY anchor this unit into a supporting struc- WARNING ture when suspending it from the ceiling. Always keep a minimum of 7 feet between the bottom of the unit and the floor surface to allow for sufficient head clearance. Use only a chain rated for a mini- mum of 150 lb.
-
Page 11: Product Safety
Regulations (OSHA). All electrical connections and wiring should be made by qualified personnel only. 12. USE only as described in this manual. USE acces- sories only recommended by Steel City. WARNING 13. DO NOT pull the air filter by the power cord. -
Page 12: Electrical Requirements
ELECTRICAL REQUIREMENTS TO REDUCE the risk of electrical shock, DO NOT use WARNING machine outdoors. DO NOT expose to rain. Store TO PREVENT electrical shock, follow all electrical and indoors in a dry area. safety codes, including the National Electrical Code DO NOT connect the machine to the power source (NEC) and the Occupational Safety and Health before you have completed the set up process. - Page 13 EXTENSION CORDS Fig. 1-1 WARNING To reduce the risk of fire or electrical shock, use the proper gauge of extension cord. When using an extension cord, be sure to use one heavy enough to carry the current your machine will draw. The smaller the gauge-number, the larger the diameter of the extension cord is.
-
Page 14: Unpacking & Inventory
Filter should only be turned “ON” after all the parts assembly. have been obtained and installed correctly. For missing parts, contact Steel City at 1-877-SC4-TOOL. Remove all of the parts from the shipping box and lay CAUTION: Make certain shipping blocks have been them on a clean work surface. -
Page 15: Assembly
INSTRUCTION FOR REMOVING SHIPPING BLOCKS 1.Remove the Electrostatic per filter P/N54 and the Fig.1-5 three pocket inner filter P/N 53. 2.Using a screw driver, remove the two screws on either side of the inlet guard screen. SEE FIG. 1-4 Fig.1-4 4.Replace inlet guard screen and install and tighten the two screws removed in step#2. - Page 16 1. The Air Filter must be supported by wood or Fig.2-1 concrete structural member able to hold a minimum of 150 pounds working load per support. 2. When Supported by Wood structural member: • The minimum recommended Lag eye-bolt size is 5/16-18 x 2 ".
-
Page 17: Operations
OPERATIONS Fig.3 CAUTION: Make certain shipping blocks have been removed from between cabinet and blower assembly, before unit is turned on. FUNCTION This Air Filter is furnished with two filters: an outer pre- filter which filters particles that are five microns and larger, and a secondary disposable three-pocket inner filter that captures 91% of the dust particles that are one micron and larger (one micron = one millionth of a... -
Page 18: Maintenance
Repairs to the Air Filter should be performed by trained pressed air to blow the dust out of the filter. Method personnel only. Contact your nearest Steel City three is by washing with soap and water. Authorized Service Center for authorized service. -
Page 19: Troubleshooting
TROUBLESHOOTING GUIDE TO PREVENT INJURY TO YOURSELF or damage to the Air Filter, turn the switch to the “OFF” position and unplug the power cord from the electrical receptacle before making any adjustments. PROBLEM LIKELY CAUSE(S) SOLUTION 1.Depress switch in or make sure switch 1.Switch not pressed in far enough is in the “On”position or switch in the “OFF”positon. - Page 20 PARTS...
-
Page 21: Parts List
INTAKE WARNING LABEL OR70253 CABINET ASSEMBLY SC80402 M4 x 12mm PAN HEAD TAP SCREW OR91341 OR91324 1/4-20 x 5/8" HEX HEAD SCREW OR70003 STEEL CITY LABEL OR90502 M6 LOCK WASHER SC81601 5/16-18 RIVET NUT OR70274 HOUSING END CAP SC10005 INLET GUARD... - Page 22 x NOTES x...
