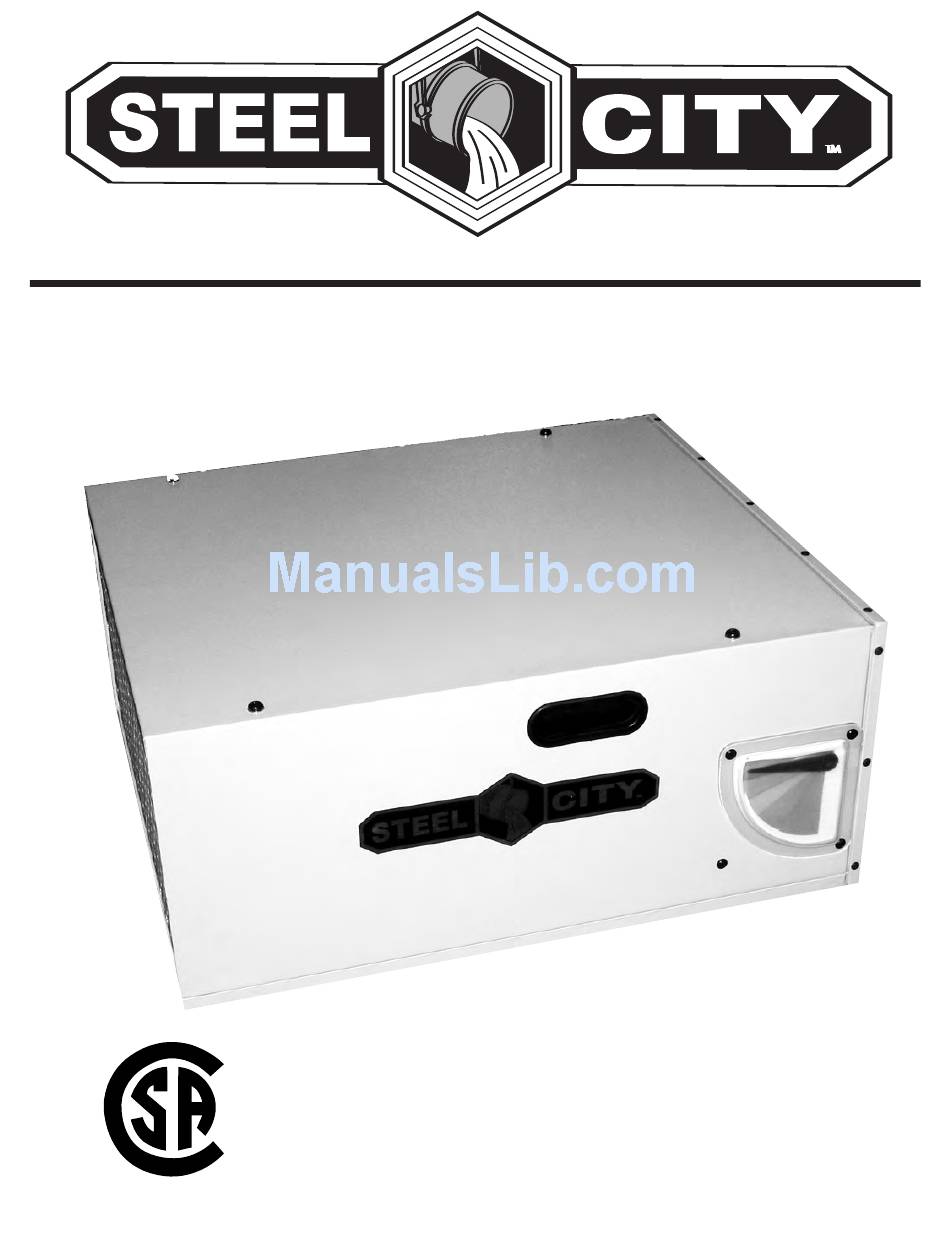

- Page 1 User Manual Read and understand this manual before using machine. DELUXE AIR CLEANER – 3 SPEED Model Number 65105 ® STEEL CITY TOOL WORKS Manual Part No. OR70271...
-
Page 3: Table Of Contents
This machine is not to be modified for any reasons. The drawings, illustrations, photographs, and specifications in this user manual represent your machine at time of print. However, changes may be made to your machine or this manual at any time with no obligation to Steel City Tool Works. -
Page 4: Warranty
STEEL CITY TOOL WORKS 5 YEAR LIMITED WARRANTY Steel City Tool Works, LLC (“SCTW”) warrants all “STEEL CITY TOOL WORKS” machinery to be free of defects in workmanship and materials for a period of 5 years from the date of the original retail purchase by the original owner. -
Page 5: Warranty Card
City:______________________________________________ ___ Vacuum Veneer Press ___ Wide Belt Sander Other____________________________________________ How did you first learn of Steel City Tool Works? ___ Advertisement ___ Mail Order Catalog 11. Which benchtop tools do you own? Check all that apply. ___ Web Site... - Page 6 FOLD ON DOTTED LINE PLACE STAMP HERE Steel City Tool Works P.O. Box 10529 Murfreesboro, TN 37129 FOLD ON DOTTED LINE...
-
Page 7: Product Specifications
(20’ x 20’ x 8’) ACCESSORIES AND ATTACHMENTS WARNING Use only accessories recommended for this machine. Contact your local Steel City dealer for accessories, or Using other accessories may cause serious injury and visit our website at: www.steelcitytoolworks.com. cause damage to the machine. -
Page 8: Feature Identification
FEATURE IDENTIFICATION Fig. 1-1 A. Air Cleaner B. Handle C. Eye-bolt D. Outer Electrostatic Pre-Filter E. Intake Side F. Exhaust Side... -
Page 9: General Safety
GENERAL SAFETY WARNING WARNING TO AVOID serious injury and damage to the machine, read and follow all Safety and Operating Instructions before assembling and operating this machine. This manual is not totally comprehensive. It does not Exposure to the dust created by power sanding, saw- and can not convey every possible safety and opera- ing, grinding, drilling and other construction activities tional problem which may arise while using this... - Page 10 10. SECURELY anchor this unit into a supporting struc- WARNING ture when suspending it from the ceiling. Always keep a minimum of 7 feet between the bottom of the unit and the floor surface to allow for sufficient head clearance. Use only a chain rated for a mini- mum of 150 lb.
-
Page 11: Product Safety
12. USE only as described in this manual. USE acces- Regulations (OSHA). All electrical connections and sories only recommended by Steel City. wiring should be made by qualified personnel only. 13. DO NOT pull the air cleaner by the power cord. -
Page 12: Electrical Requirements
ELECTRICAL REQUIREMENTS TO REDUCE the risk of electrical shock, DO NOT use WARNING machine outdoors. DO NOT expose to rain. Store TO PREVENT electrical shock, follow all electrical and indoors in a dry area. safety codes, including the National Electrical Code DO NOT connect the machine to the power source (NEC) and the Occupational Safety and Health before you have completed the set up process. - Page 13 EXTENSION CORDS Fig. 1-1 WARNING To reduce the risk of fire or electrical shock, use the proper gauge of extension cord. When using an extension cord, be sure to use one heavy enough to carry the current your machine will draw. The smaller the gauge-number, the larger the diameter of the extension cord is.
-
Page 14: Unpacking & Inventory
Cleaner should only be turned “ON” after all the parts assembly. have been obtained and installed correctly. For missing parts, contact Steel City at 1-877-SC4-TOOL. Remove all of the parts from the shipping box and lay CAUTION: Make certain shipping blocks have been them on a clean work surface. -
Page 15: Assembly
ASSEMBLY WARNING Fig. 2-1 1. DO NOT assemble the Air Cleaner until you are sure the tool IS NOT plugged in. 2. DO NOT assemble the Air Cleaner until you are sure the power switch is in the “OFF” position. 3. -
Page 16: Operations
OPERATIONS CAUTION: Make certain shipping blocks have been REMOTE CONTROL UNIT removed from between cabinet and blower assembly, before unit is turned on. WARNING FUNCTION This Air Cleaner is furnished with two filters: an outer pre-filter which filters particles that are five microns and To reduce the risk of fire or electric shock, do not use larger, and a secondary disposable three-pocket inner this unit with any solid-state speed control device. - Page 17 This air cleaner has a timer that can be set by remote WARNING control. DO NOT USE THIS UNIT TO FILTER METAL DUST. 1. When the “TIME” button (B) on the remote control Combining wood and metal dust can create an explo- is pressed, the blower will run for 1/2 hour.
-
Page 18: Maintenance
3. Turn the air cleaner OFF and let the blower come to WARNING a complete stop before proceeding. Repairs to the Air Cleaner should be performed by trained personnel only. Contact your nearest Steel City WARNING Authorized Service Center for authorized service. Compressed air can be dangerous. For operator safety,... -
Page 19: Troubleshooting
TROUBLESHOOTING GUIDE TO PREVENT INJURY TO YOURSELF or damage to the Air Cleaner, turn the switch to the “OFF” position and unplug the power cord from the electrical receptacle before making any adjustments. PROBLEM LIKELY CAUSE(S) SOLUTION Motor does not 1. - Page 20 PARTS...
-
Page 21: Parts List
SPEC LABEL OR70271 USER MANUAL, 65105 (NOT SHOWN) OR91347 SPACER OR70408 MOTOR ASSEMBLY, 1/5 HP, 3-SPEED OR70688 USER MANUAL, 65105 FRENCH (NOT SHOWN) OR70275 CAPACITOR (NOT SHOWN) OR70689 USER MANUAL, 65105 SPANISH (NOT SHOWN) OR70357 MOTOR SPEC LABEL (NOT SHOWN) OR70254 65100 &... - Page 22 x NOTES x...
- Page 23 STEEL CITY TOOL WORKS www.steelcitytoolworks.com 5 Year Warranty...
