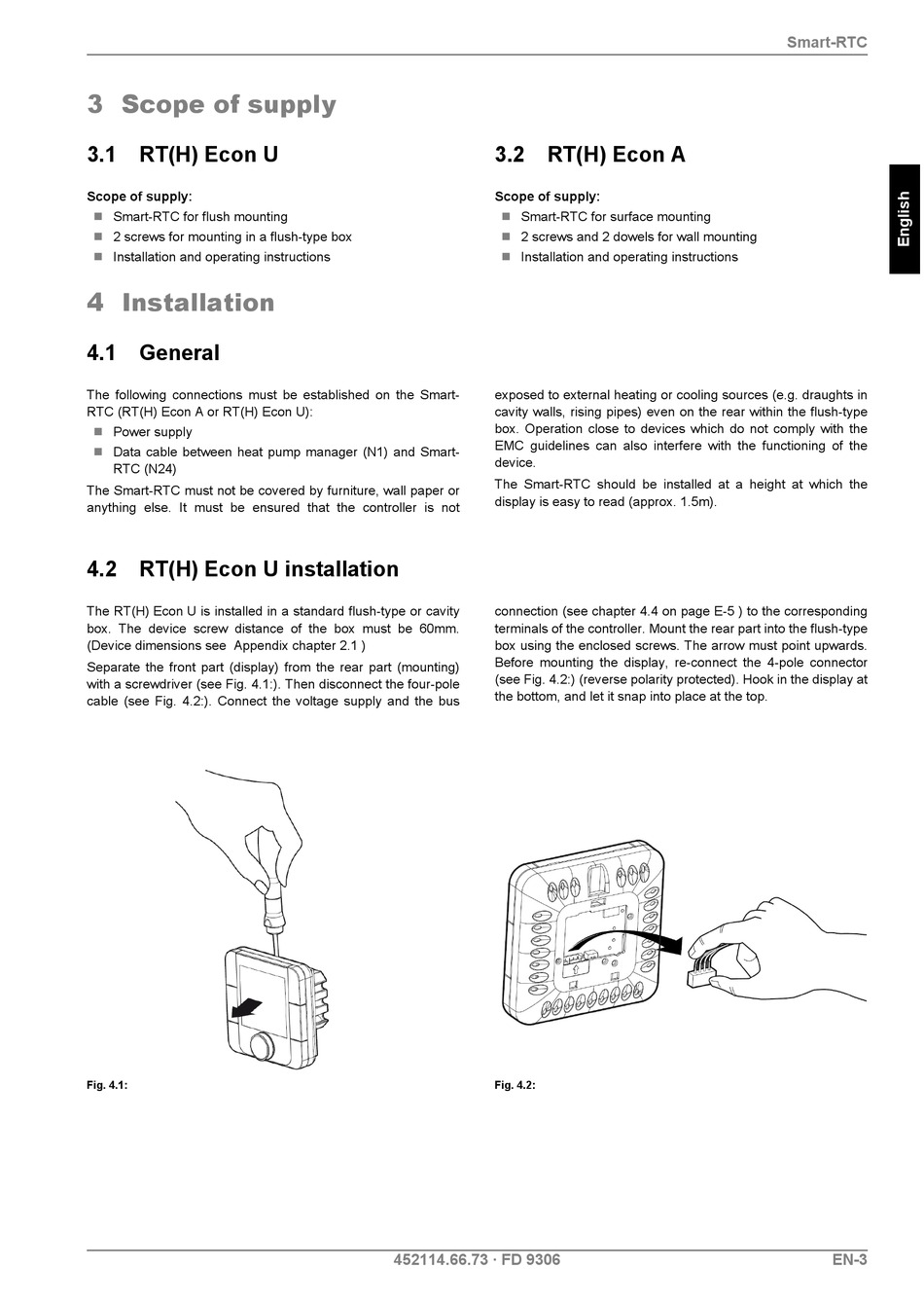

3 Scope of supply

3.1 RT(H) Econ U

Scope of supply:
 Smart-RTC for flush mounting
2 screws for mounting in a flush-type box

 Installation and operating instructions

4 Installation

4.1 General

The following connections must be established on the Smart-
RTC (RT(H) Econ A or RT(H) Econ U):
 Power supply
Data cable between heat pump manager (N1) and Smart-

RTC (N24)
The Smart-RTC must not be covered by furniture, wall paper or
anything else. It must be ensured that the controller is not

4.2 RT(H) Econ U installation

The RT(H) Econ U is installed in a standard flush-type or cavity
box. The device screw distance of the box must be 60mm.
(Device dimensions see Appendix chapter 2.1 )
Separate the front part (display) from the rear part (mounting)
with a screwdriver (see Fig. 4.1:). Then disconnect the four-pole
cable (see Fig. 4.2:). Connect the voltage supply and the bus
Fig. 4.1:

3.2 RT(H) Econ A

Scope of supply:
 Smart-RTC for surface mounting
2 screws and 2 dowels for wall mounting

 Installation and operating instructions
exposed to external heating or cooling sources (e.g. draughts in
cavity walls, rising pipes) even on the rear within the flush-type
box. Operation close to devices which do not comply with the
EMC guidelines can also interfere with the functioning of the
device.
The Smart-RTC should be installed at a height at which the
display is easy to read (approx. 1.5m).
connection (see chapter 4.4 on page E-5 ) to the corresponding
terminals of the controller. Mount the rear part into the flush-type
box using the enclosed screws. The arrow must point upwards.
Before mounting the display, re-connect the 4-pole connector
(see Fig. 4.2:) (reverse polarity protected). Hook in the display at
the bottom, and let it snap into place at the top.
Fig. 4.2:
452114.66.73 · FD 9306
Smart-RTC
EN-3
