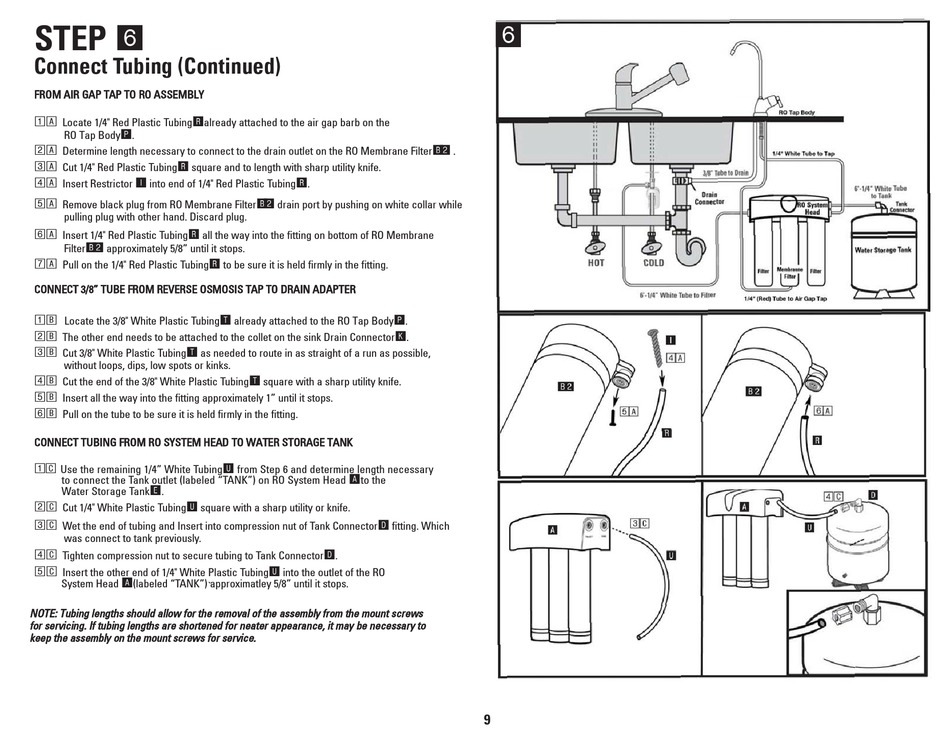

Spectrum PTL RO System Installation Instructions Manual page 10

STEP 6
Connect Tubing (Continued)
FROM AIR GAP TAP TO RO ASSEMBLY
1A R
Locate 1/4" Red Plastic Tubing already attached to the air gap barb on the
P
RO Tap Body .
2A
Determine length necessary to connect to the drain outlet on the RO Membrane Filter
3A R
Cut 1/4" Red Plastic Tubing square and to length with sharp utility knife.
4A I
Insert Restrictor into end of 1/4" Red Plastic Tubing
5A
Remove black plug from RO Membrane Filter
pulling plug with other hand. Discard plug.
6A R
Insert 1/4" Red Plastic Tubing all the way into the fitting on bottom of RO Membrane
B 2
Filter approximately 5/8" until it stops.
7A R
Pull on the 1/4" Red Plastic Tubing
CONNECT 3/8" TUBE FROM REVERSE OSMOSIS TAP TO DRAIN ADAPTER
1B
Locate the 3/8" White Plastic Tubing
2B
The other end needs to be attached to the collet on the sink Drain Connector
3B T
Cut 3/8" White Plastic Tubing as needed to route in as straight of a run as possible,
without loops, dips, low spots or kinks.
4B
Cut the end of the 3/8" White Plastic Tubing
5B
Insert all the way into the fitting approximately 1" until it stops.
6B
Pull on the tube to be sure it is held firmly in the fitting.
CONNECT TUBING FROM RO SYSTEM HEAD TO WATER STORAGE TANK
1C
Use the remaining 1/4" White Tubing
to connect the Tank outlet (labeled "TANK") on RO System Head
E
Water Storage Tank .
2C U
Cut 1/4" White Plastic Tubing square with a sharp utility or knife.
3C
Wet the end of tubing and Insert into compression nut of Tank Connector
was connect to tank previously.
4C
Tighten compression nut to secure tubing to Tank Connector
5C
Insert the other end of 1/4" White Plastic Tubing
A
System Head (labeled "TANK") approximatley 5/8" until it stops.
`
NOTE: Tubing lengths should allow for the removal of the assembly from the mount screws
for servicing. If tubing lengths are shortened for neater appearance, it may be necessary to
keep the assembly on the mount screws for service.
