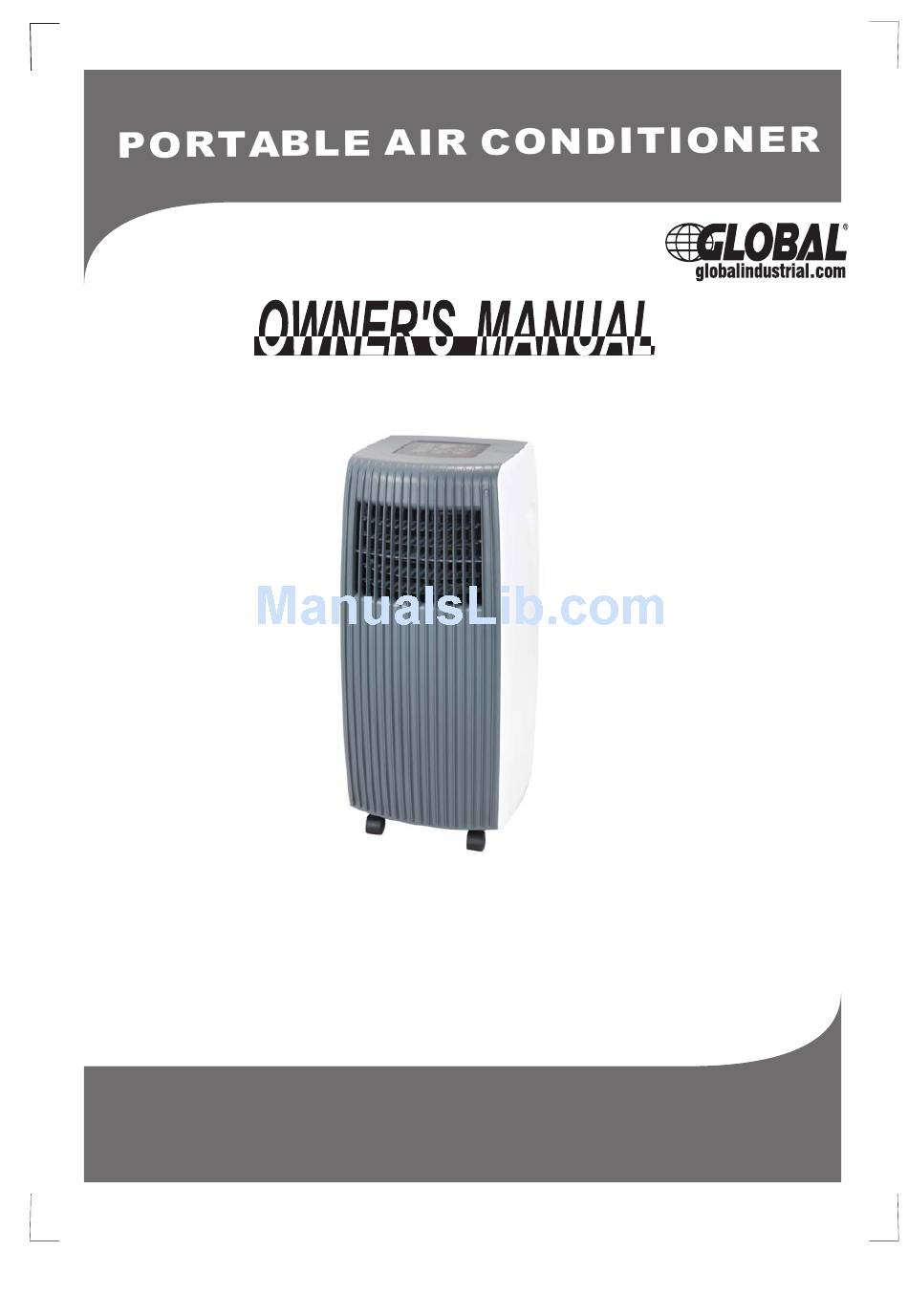

- Page 1 Model: 600506 600507 Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventative care on your part can save you a great deal of time and money over the life of your air conditioner.
- Page 3 1 866 646 4332...
- Page 4 Read This Manual Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner. You'll find many answers to common problems in the chart of troubleshooting tips.
-
Page 5: Table Of Contents
CONTENTS SOCIABLE REMARK Sociable remark..........................2 SAFETY PRECAUTIONS Safety rules ............................3 Operating condition ...........................3 Electrical information .........................4 IDENTIFICATION OF PARTS Accessories ............................4 Names of parts...........................5 AIR CONDITIONER FEATURES Electronic control operating instructions ...................6 OPERATING INSTRUCTIONS Operating instructions ........................7 INSTALLATION INSTRUCTIONS Location ............................9 Window kit installation ........................9 Exhaust hose installation ........................12 Water drainage ..........................13... -
Page 6: Sociable Remark
SOCIABLE REMARK When using this air conditioner in the European countries, the following inform- ation must be followed: DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. It is prohibited to dispose of this appliance in domestic household waste. For disposal, there are several possibilities: A) The municipality has established collection systems, where electronic waste can be disposed of at least free of charge to the user. -
Page 7: Safety Precautions Safety Rules
SAFETY PRECAUTIONS Safety rules To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. Always do this Never do this Do not operate your air conditioner in a wet room such as a bathroom or laundry room. -
Page 8: Electrical Information
IDENTIFICATION OF PARTS For your safety Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor plug. Do not remove any prong from the power cord. -
Page 9: Names Of Parts

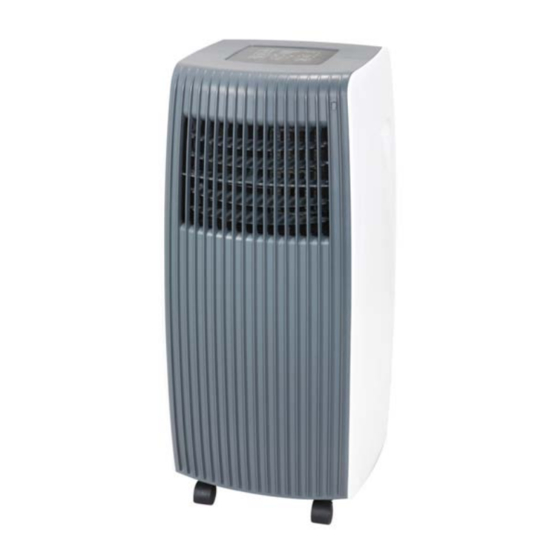

IDENTIFICATION OF PARTS NAMES OF PARTS Front Operation Panel Horizontal Louver Blade (adjust manually) Carrying Handle (both sides) Remote signal receptor Fig.1 Panel Rear Upper Air Filter (Behind the grille) Air Outlet Wheel Air intake Drain Outlet Air intake Lower Air Filter (Behind the grille) Bottom tray drain outlet Fig.2... -
Page 10: Air Conditioner Features
AIR CONDITIONER FEATURES ELECTRONIC CONTROL OPERATING INSTRUCTIONS Before you begin, thoroughly familiarize yourself with the control panel and remote controller and all its functions, then follow the symbol for the functions you desire. The unit can be controlled by the unit control panel alone or with the remote controller . NOTE: This manual does not include Remote Controller Operations, see the <<Remote Controller Instruction>>... -
Page 11: Operating Instructions
OPERATING INSTRUCTIONS Error codes: without), or fan only operation depen- E1- Room temperature sensor error- ding on what temperature you have Unplug the unit and plug it back in. selected and the room temperature. If error repeats, call for service. The air conditioner will control room E2- Evaporator temperature sensor error- temperature automatically round the... - Page 12 OPERATING INSTRUCTIONS SLEEP operation Press this button, the set temperature will increase C/2 F in 30 (cooling) or decrease(heating) by 1 minutes.The set temperature will then increase C/2 F (cooling) or decrease (heating) by another 1 after an additional 30 minutes. This new temper- ature will be maintained for 7 hours before it returns to the originally selected temperature.
-
Page 13: Installation Instructions
INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS Location The air conditioner should be placed on a firm foundation to minimize noise and vibration. For safe and secure positioning, place the unit on a smooth,level floor strong enough to support the unit. The unit has casters to aid placement, but it should only be rolled on smooth, flat surfaces. - Page 14 INSTALLATION INSTRUCTIONS Installation in a double-hung sash window Foam seal A (adhesive type) 1. Cut the foam seal A(adhesive type) to the proper length and attach it to the window stool. Fig.8.Then cut the foam seal B to the proper length and place it on the above foam sael A. Fig.9 Fig.8 2.
-
Page 15: Installation In A Sliding Sash Window
INSTALLATION INSTRUCTIONS Installation in a sliding sash window 1. Cut the foam seal(adhesive type) to the proper length and Foam seal A (adhesive type) attach it to the window frame. See Fig.12. 2. Attach the window slider kit to the window stool. Adjust the length of the window slider kit according to the width of Fig.12 window, shorten the adjustable window kit if the width of... -
Page 16: Exhaust Hose Installation
INSTALLATION INSTRUCTIONS Exhaust hose installation: The exhaust hose and adaptor must be installed or removed in accordance with the usage mode. Fig.16 Fig.17 COOL mode and AUTO mode Install Remove FAN or DEHUMIDIIFY mode 1. Install the window Exhaust adaptor B onto the exhaust hose as shown in Fig.16. -
Page 17: Water Drainage
INSTALLATION INSTRUCTIONS Water drainage: - During dehumidifying modes, remove the drain Remove the plug from the back of the unit, install the drain drain plug connector(5/8 universal female mender) with 3 4 hose(locally purchased). For the models without drain connector, just attach the drain hose to the hole. -
Page 18: Care And Maintenance
CARE AND MAINTENANCE CARE AND MAINTENANCE IMPORTANT: Upper filter (take out) 1) Be sure to unplug the unit before cleaning or servicing. 2) Do not use gasoline, thinner or other chemicals to clean the unit. 3) Do not wash the unit directly under a tap or using a hose. It may cause electrical danger. -
Page 19: Troubleshooting Tips
TROUBLESHOOTING TIPS TROUBLE SHOOTING TROUBLES POSSIBLE CAUSES SUGGEST REMEDIES - P1 appears in the display window Drain the water in the bottom tray. 1. Unit does not Start when Pressing on/off - Room temperature is lower than Reset the temperature. Button the set temperature.(Cooling mode) - The windows or doors in the room... - Page 20 Midea GLOBAL INDUSTRIAL Midea GLOBAL INDUSTRIAL GLOBAL INDUSTRIAL GLOBAL INDUSTRIAL Midea 1-866-646-4332...
