Global FM-1209-2 User Manual

User's manual
Customer Service
US: 1-800-645-2986
1. WIRING DIAGRAM
Black
Black
Blue Black
Brown
Red
Transformer
Yellow Green
FM-1209-2 246608
FM-1212-2 246609
2. SPECIFICATIONS
SIZE
Model
INCH
FM-1209-2
36
246608
FM-1212-2
48
246609
FM-1215-2
60
246610
Manual del usuario
Servicio de atención al Cliente
US: 1-800-645-2986

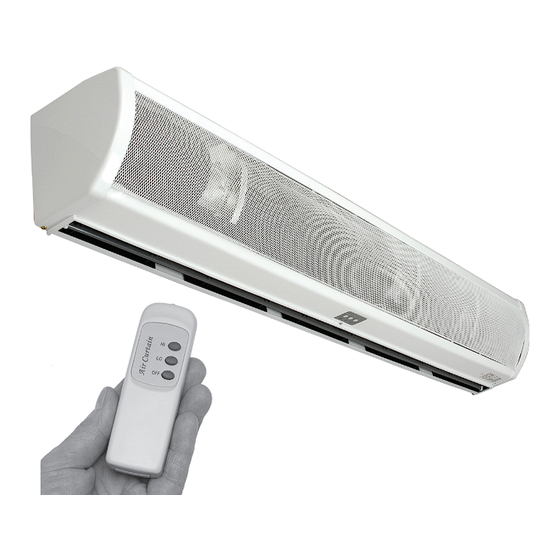

AIR CURTAIN
Models 246608, 246609 & 246610
Capacitor
White (Hi)
MOTOR
Brown (Low)
Brown (Low)
MOTOR White (Hi)
Capacitor
Brown
Remote
White
Control
Receiver
Red
LOW
Current Power Velocity
A W
2.10 255
2.65 320
3.60 440
CAUTION:
• READ and FOLLOW all instructions prior to operating
the Air Curtain.
• Do NOT operate the unit if any equipment is damaged
and/or missing.
WARNING:
To reduce the risk of fire or electrical shock:
• Do NOT expose the unit to moisture, water, rain, or any
other fluids.
• Do NOT use the Air Curtain in conjunction with any solid
state speed control devices.
• Do NOT use the Air Curtain in windows. Rain and moisture
may cause an electrical hazard.
• Disconnect the Air Curtain from the power source when
not in use, when relocating, or prior to maintenance/
servicing.
Black
Black
Black
Blue
Brown Red
Transformer
Yellow Green
Noise Current
m/s DB
16 56 2.85
16 56 3.50
16 56 4.80
1
globalindustrial.ca
Manuel de l'utilisateur
Service à la clientèle
Canada: 888-645-2986
MOTOR
MOTOR
Brown
Remote
White
Control
MOTOR
Red
Receiver
FM-1215-2 246610
HIGH
Power Velocity
A W m/s
345 20
425 20
575 20
Brown (Low)
White (Hi)
Capacitor
Brown (Low)
White (Hi)
Capacitor
Brown (Low)
White (Hi)
Capacitor
Noise
DB
59
59
59
