Page 1: Room Air Conditioner

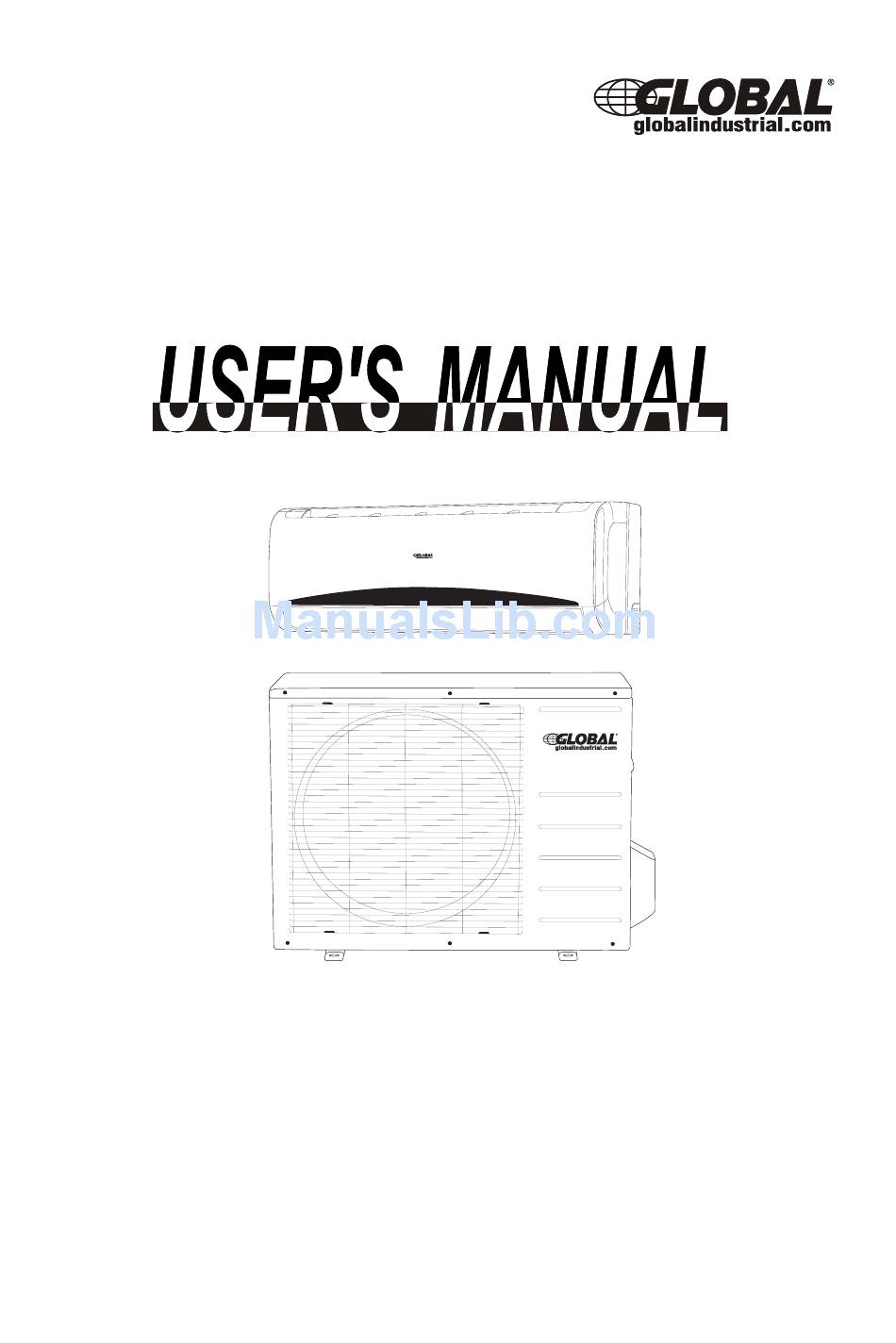

ROOM AIR CONDITIONER ROOM AIR CONDITIONER ROOM AIR CONDITIONER ead This Manual Model:600CP514A Inside you will find many helpful hints on how 600CP514B to use and maintain your air conditioner properly. Just a little preventative care on your part can... -
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS Warning ........................Caution ........................OPERATING INSTRUCTIONS Parts names ......................Special functions ......................Operating temperature....................Manual operation ......................Airflow direction control ....................How the air conditioner works ..................CARE AND MAINTENANCE Care and maintenance ....................OPERATION TIPS Operation tips .... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. This symbol indicates the possibility of death or serious injury. - Page 4 SAFETY PRECAUTIONS CAUTION Do not clean the air Ventilate the room well When the air filter is to be conditioner with water. when used together removed, do not touch the with a stove, etc. metal parts of the unit. Water may enter the unit and An oxygen shortage It may cause an injury.
-
Page 5: Operating Instructions Parts Names
OPERATING INSTRUCTIONS Parts names Indoor unit NOTE: The indoor unit you purchased would like one of the following. There is a slightly difference on front panel and display window, but the features are the same. Indoor unit 1. Front panel 2. - Page 6 OPERATING INSTRUCTIONS Indicator Lights on Display panel Auto indicator: NOTE:The display panel of the indoor This indicator illuminates when the air unit you purchased may be look like conditioner is in AUTO operation. one of the following: Timer indicator: This indicator illuminates when TIMER is set ON/OFF.
-
Page 7: Operating Temperature
OPERATING INSTRUCTIONS NOTE: This manual does not include Remote Controller Operations, see the <<Remote Controller Instruction>> packed with the unit for details. Operating temperature Mode Temperature Room temperature Outdoor temperature CAUTION: 1. If air conditioner is used outside of the above conditions, certain safety protection features may come into operation and cause the unit to function abnormally. -
Page 8: Airflow Direction Control
OPERATING INSTRUCTIONS Airflow direction control Adjust the air flow direction properly otherwise, it might cause discomfort or cause uneven room temperatures. Adjust the horizontal louver using the remote controller. Adjust the vertical louver manually. To set the vertical air flow(Up--Down) direction Range Perform this function while the unit is in operation. -
Page 9: How The Air Conditioner Works
OPERATING INSTRUCTIONS How the air conditioner works AUTO operation When you set the air conditioner in AUTO mode, it will SLEEP operation automatically select cooling, heating(cooling/heating 7 hours timer off models only), or fan only operation depending on what temperature you have selected and the room temperature. -
Page 10: Care And Maintenance
CARE AND MAINTENANCE Care and maintenance Cleaning the Grille, Case and Remote Controller Turn the system off before cleaning. To clean, wipe with a soft, dry cloth. Do not use bleach or abrasives. NOTE: Supply power must be disconnectd before cleaning the indoor unit. - Page 11 CARE AND MAINTENANCE 4. Remove the Air Freshening Filter from its support frame (on some models). (The optional filter include :Plasma Dust Collector/ Silver Ion filter /Bio filter /Vitamin C filter/3M air purifier filter, etc. The removing and installation methods are slightly different, see the pictures marked on the left.
-
Page 12: Operation Tips
OPERATION TIPS The following events may occur during normal operation. 1. Protection of the air conditioner. Compressor protection The compressor can't restart for 3 minutes after it stops. Anti-cold air (Cooling and heating models only) The unit is designed not to blow cold air on HEAT mode, when the indoor heat exchanger is in one of the following three situations and the set temperature has not been reached. - Page 13 OPERATION TIPS 7. Dripping water may generate on the surface of the indoor unit when cooling in a high relatively humidity (relative humidity higher than 80%). Adjust the horizontal louver to the maximum air outlet position and select HIGH fan speed. 8.
- Page 14 TROUBLESHOOTING TIPS Troubleshooting Tips Stop the air conditioner immediately if one of the following faults occur. Disconnect the power and contact the nearest customer service center. If the following code appears on the LED window, disconnect the power and contact the service people: E0,E1,E2,E3,E4,E5,E6,E7,E8 or P0,P1,P2,P3,P4, P6.
- Page 15 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. CS002U-BP9A1(UL) 202000192382...
