Summary of Contents for Genesis GMT15A

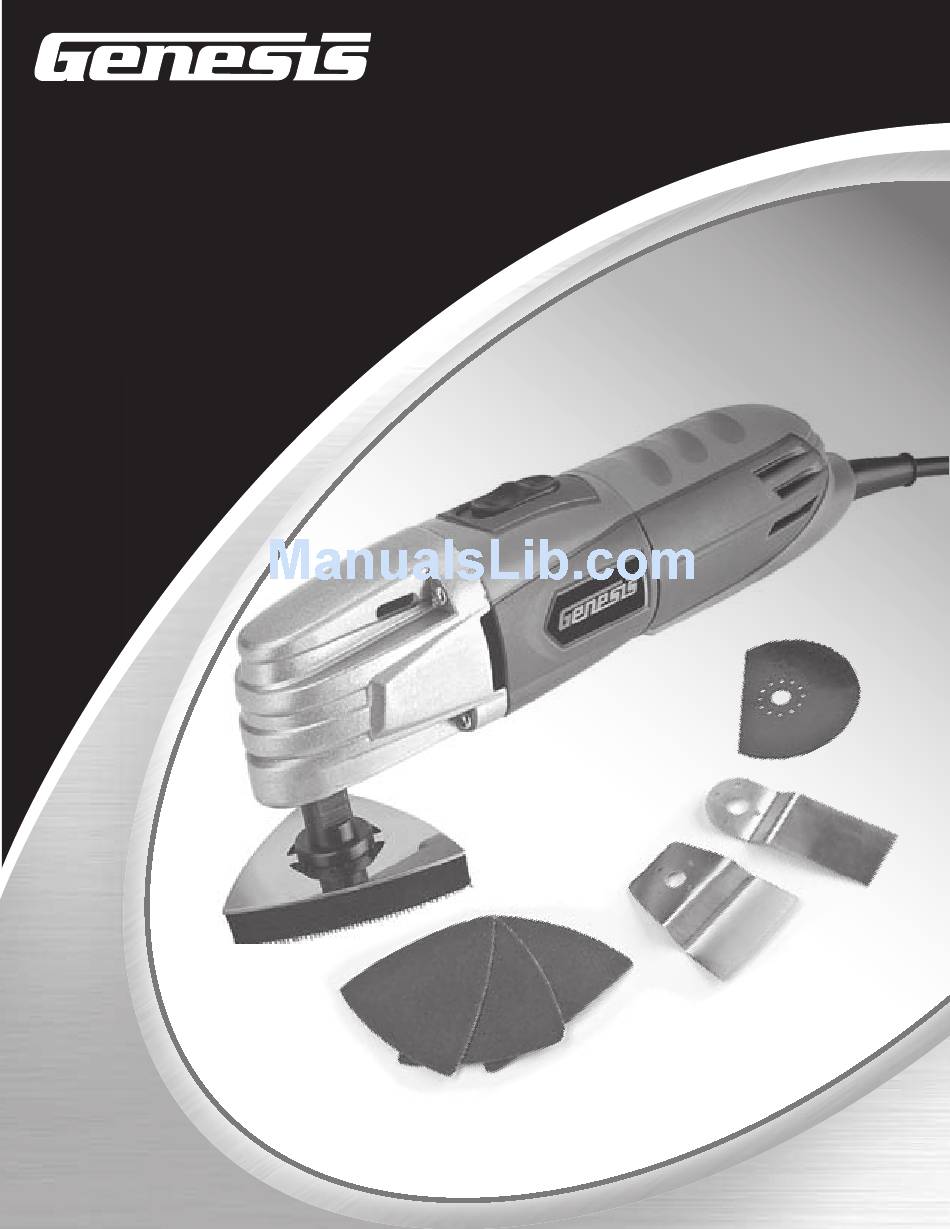

- Page 1 Multi-Purpose Oscillating Tool Operator’s Manual Outil oscillant à usages multiples Manuel d’utilisation Herramienta oscilante multiuso Manual del Operario GMT15A...
-
Page 2: Specifications

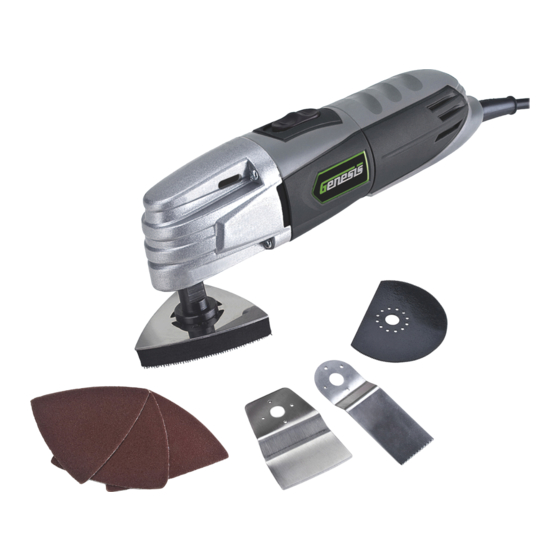

Multi-Purpose Oscillating Tool 1.5 AMP Operator’s Manual Specifications: • Model: GMT15A • Rated Input: 120V~AC, 60HZ, 1.5A • No Load Speed: 21,000/min (OPM) Includes: Oscillating Tool, Hook & Loop Sanding Pad, Assorted Sandpaper, Rigid Scraper Blade, 1-3/16" (30mm) E-Cut (Flush Cut) Saw Blade, 3” Wood & Drywall Saw Blade, and Wrench WArnIng: To reduce the risk of injury, user must read and understand this operator’s manual before operating this tool. Save this Manual for future reference. -
Page 3: Electrical Safety
Ensure the switch is in the off position before plugging in. Carrying power tool with your finger on the switch or plugging in power tools that have the switch on invites accidents. • Remove any adjusting keys or wrenches before turning the power tool on. A wrench or key that is left attached to a rotating part of the tool may result in personal injury. • Do not overreach. Maintain proper footing and balance at all times. Loss of balance can cause an injury in an unexpected situation • If devices are provided for connection of dust extraction and collection facilities, ensure these are connected and properly used. use of these devices can reduce dust related hazards. • Do not use a ladder or unstable support. Stable footing on a solid surface enables better control of the tool in unexpected situations. • Keep tool handles dry, clean and free from oil and grease. Slippery handles cannot safely control the tool. TOOL USE AND CARE Secure the work piece. • use clamp or other practical way to hold the work piece to a stable platform. Holding the work piece by hand or against your body is unstable and may lead to loss of control. Multi-Purpose Oscillating Tool Operator’s Manual GMT15A... - Page 4 WArnIng: rEAD AnD UnDErSTAnD ALL WArnIngS, CAUTIOnS AnD OPErATIng InSTrUCTIOnS BEFOrE USIng THIS EQUIPMEnT. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS Multi-Purpose Oscillating Tool Operator’s Manual GMT15A...
-
Page 5: Guidelines For Using Extension Cords
• Always wear safety glasses or goggles. Normal prescription eye or sunglasses are not safety glasses. • Hold the Oscillating Tool by its insulated gripping surfaces to avoid electrical shock from unseen “live” wires. • Always hold the tool firmly. DO not leave the tool running unless hand held. • Check your work area for proper clearances before cutting. This will avoid cutting into your workbench, the floor, etc. • DO not cut nails or screws unless you are using a blade specifically designed for this purpose. Inspect your material before cutting • Before switching on the tool, be sure the blade is not contacting the work piece. • Do not use tool if switch does not turn it on or off. Any tool which can not be controlled by the switch is dangerous and must be repaired. • Wear cushioned protective gloves to minimize the vibration. Excessive vibration may cause personal injury. • Do not wet-sand with this tool. Water or moisture entering the motor housing can cause electric shock and serious personal injury. • Always be sure that the tool is switched off and unplugged before adjusting, adding accessories, or checking a function on the tool Multi-Purpose Oscillating Tool Operator’s Manual GMT15A... - Page 6 If you find anything wrong, do not operate the tool until the parts have been replaced or the fault has been rectified. Failure to do so could result in serious personal injury. Contents in Package: Description Oscillating Tool 1-3/16” (30mm)Flush Saw Blade 3” Wood and Drywall Saw Blade Rigid Scraper Blade Hook & Loop Sanding Pad Sandpaper Allen Wrench Cap screw and washers Operator’s Manual Multi-Purpose Oscillating Tool Operator’s Manual GMT15A...
-
Page 7: Assembly And Adjustments
Failure to disconnect or unplug the tool may cause accidental starting, resulting in serious personal injury. STArTIng AnD STOPPIng THE OSCILLATIng TOOL To start the oscillating tool, slide the ON/OFF switch forward to ON position. (FIG 2 ) To stop the oscillating tool, slide the ON/OFF switch backward to OFF position. (FIG 2) FIG 2 Multi-Purpose Oscillating Tool Operator’s Manual GMT15A... - Page 8 APPLICATIOnS nOTE: This tool must be used only with gEnESIS oscillating tool accessories. See Accessories Chart for details. This multi-purpose oscillating tool is intended for cutting and sanding wood, plastic, plaster and non-ferrous metals. It is especially suitable for cutting in tight spaces and for flush cutting. Following are a few typical uses. Cutting: use a flush cutting saw blade (or “e-cut blade”) for making precise cuts in tight areas, close to edges or flush to a surface. It is important not to force the tool during the flush cutting. If you are experiencing a strong vibration in your hand during the plunge cut, it indicates too much pressure on the tool. Back off on the pressure and let the speed of tool do the work. See FIG 3, FIG 4 for typical uses of flush cutting saw blade. nOTE It is suggested that you have a piece of scrap material supporting the blade when making a flush cut.
-
Page 9: Maintenance
ACCESSOrIES nOTE: This tool must be used only with gEnESIS oscillating tool accessories. Model Picture Description Recommended Application Flush Cut Saw Blade Assortment Cutting and flush cuts in Wood, Plastic, Drywall and Pack, other soft materials. Size: 3/8" (10mm), For example: Size: 3/4"... - Page 12 Richpower Industries, Inc. 736 Hampton Road Williamston, SC USA www.richpowerinc.com...
