 Copyright:
Copyright 2011
All rights reserved by Celluon. All page contents are properties of Celluon.
 Celluon, evoMouse®, Magic Cube® are trademarks or registered trademark of Celluon.
All other products are trademarks or registered trademarks of their respective
companies.
 Please refer to host device instruction manual for Bluetooth pairing information.

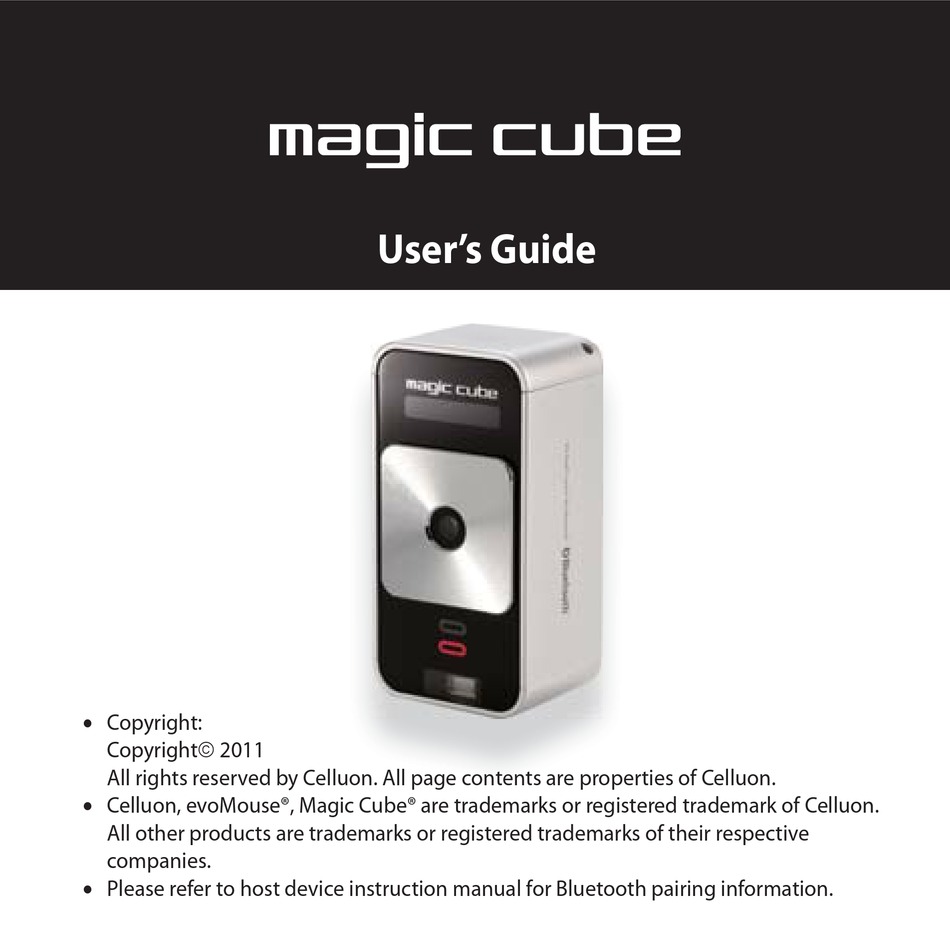

User's Guide
uon All page contents are prope

Advertisement

Table of Contents
loading

Related Manuals for Celluon magic cube

Summary of Contents for Celluon magic cube

  • Page 1 All rights reserved by Celluon. All page contents are properties of Celluon. uon All page contents are prope  Celluon, evoMouse®, Magic Cube® are trademarks or registered trademark of Celluon. All other products are trademarks or registered trademarks of their respective companies.

  • Page 2: Safety Precautions

    Safety Precautions 7. Avoid placing any object within the space between the main unit and the laser projection keyboard layout. 1. Avoid exposing this product to direct sunlight for 8. Please do not use this product on uneven or irregular extended periods of time, and keep it away from heat surfaces.
  • Page 3 - Reorient or relocate the receiving antenna. FCC Class B Notice - Increase separation between the equipment and receiver. This equipment has been tested and found to comply within - Connect the equipment to an outlet on a circuit diff erent the limits for a Class B digital device, pursuant to Part 15 of from which the receiver is connected.
  • Page 4 ❏ Certifi cation RF Exposure Information IEC 60825 : CLASS I KC The antenna used for this transmitter must be installed FDA : CLASS II to provide a separation distance of at least 20 cm from KCC-CMM-CLK- all persons and must not be co-located or operating in MagicCube conjunction with any other antenna or transmitter.
  • Page 5 To protect the environment, Charging time increases if product is used while charging. dispose of this product separately from household waste once it has reached its end of life, or take it to your nearest Celluon Service Center.

  • Page 6: Table Of Contents

    Contents Cautions 1. For safety reasons, be sure to use only the mini USB to 1. Product Features ............12 USB cable specifi ed for this product. 2. Package Contents ............12 2. Make sure to fully charge the battery before using the product for the fi rst time.

  • Page 7: Product Features

    If 2. Package Contents the amount of refl ected infrared light is appropriate, the  Magic Cube sensor will have no problem detecting objects such as  USB Cable fi ngers. However, if the amount of refl ected infrared light ...
  • Page 8 4. Avoid a table or surface that is as transparent or Adjusting Sensitivity refl ective as glass or mirror. Magic Cube features sensitivity adjustment for better 5. Avoid placing any objects within the space between the accuracy. To increase sensitivity, press and hold key and main unit and the laser projected keyboard layout.

  • Page 9: Identifying Parts And Their Functions

    4. Identifying Parts and their Functions. Caution Although this equipment is classifi ed as Class 2 laser product, (1) Projector: Uses a red laser to project the image of a for your safety, do not directly expose your eyes to pattern keyboard onto a fl at surface in front of the typist.

  • Page 10: Front View

    Front View Rear View Pattern Projector STRAP LOOP Sensor POWER SWITCH Battery / Bluetooth/ Keyboard/ Mouse/ Charging/ Operating Status LED Battery Lower LED USB Upper LED Charging Connected Green Green HID/SPP MODE MINI USB PORT Full Green SWITCH Keyboard Upper LED Orange Connected via USB Green Upper LED...

  • Page 11: Using The Projection Keyboard

    USB HID connection allows plug-n-play, without Bluetooth HID Switch (Top) installing a separate driver. 1) Connect Magic Cube® and host device using supplied Bluetooth SPP Switch (Bottom) USB cable. Host device must support USB HID. Note: Most Windows devices support USB HID.

  • Page 12: Connecting Via Bluetooth Hid

    Bluetooth profi les can be selected through slide switch tion on connecting Magic Cube® to Android devices. behind the device: * Please refer to Android driver installation info card - HID mode: Slide the switch up included in retail package.
  • Page 13 Upon successful pairing, Blue LED will stop blinking and Tap only mouse cursor button once (do not press and become solid blue. hold the key). If Magic Cube® cannot locate previously paired host Adjusting key stroke sound level ■ ...
  • Page 14 Bluetooth HID and a driver is not required.  Press and hold “FN” key and press left arrow key to 1) Make sure the Magic Cube® is on a HID mode. lower brightness. (Sliding button should be pushed to ‘up’ position).
  • Page 15 4) Turn Bluetooth on by tapping the ON button. 6) Locate “Celluon” under Device. 5) iPhone/iPad will now search for pairing device. 7) Select “Celluon” by tapping “Celluon”.
  • Page 16 LED on Magic Cube® becomes Celluon”. solid. 9) Type passkey on Magic Cube keyboard and press ENTER. 11) To turn off Magic Cube®, slide power button to the left. 12) With iPhone/iPad Bluetooth on, Magic Cube® will connect automatically upon power on.
  • Page 17 Note Pairing your Android device iPhone/iPad OS (iOS4) does not support mouse function. 1) Make sure the Magic Cube® is on HID mode by When keyboard does not function with successful pairing, sliding the slide button to up position. please make sure the device is in keyboard mode. If device 2) Turn on Magic Cube®...
  • Page 18 3) Navigate through Android as follows: 4) Turn on Bluetooth on Android by checking the box. Home  Main Menu  Settings  Wireless and Network  Bluetooth setting.
  • Page 19 5) From the same screen, with Bluetooth ON, tap on 6) Android device will detect “Celluon” and display Scan devices. message “Pair with this device”. 7) Tap on “Pair with this device”.
  • Page 20 9) Type passkey on Magic Cube® and press ENTER. Connecting via Bluetooth HID When correct passkey is entered, the Android 1) Please make sure Magic Cube® is on HID mode by device is paired. sliding the switch to the up position.
  • Page 21 USB cable. * Note: There are 6 stages of adjustments. Each 2) Turn on Magic Cube® by slide the power button to the adjustment requires repeated steps. right (ON). 3) Successful connection is indicated by solid green LED.
  • Page 22 Projection keyboard brightness adjustment – From keyboard mode, press and hold FN and tap on Press and hold FN and tap ‘right’ arrow to increase cursor button, located adjacent to space bar to switch brightness to mouse function. Blinking LED indicates mouse mode.

  • Page 23: Specifi Cation

    Specifi cation From mouse mode, tap on cursor button to switch back to keyboard mode. Solid LED indicates keyboard ■ Pattern Projector mode. * Please note: mouse function is only available on Item Specifi cation devices that support cursor/mouse function. Light Source Red Laser Diode Keyboard Layout...
  • Page 24 ■ Environmental Conditions ■ Electrical Characteristics Item Specifi cation Item Specifi cation Operating 0 ~ 35°C External Power Temperature USB Power / less than 5V 500mA Supply Storage -5 ~ 35°C (with batteries included) Lithium-polymer battery, Temperature Battery & Capacity 700mAH(MAX) @ 3.7V Battery Operating Approx.
  • Page 25 Celluon, Inc. Ace High-End Tower 918, 235-2 Guro-dong, Guro-gu, Seoul, Korea (152-740) sales@celluon.com , support@celluon.com...
