Celluon Magic Cube User Manual

Bluetooth laser virtual keyboard
Hide thumbs Also See for Magic Cube:
Table of Contents

Advertisement

Quick Links

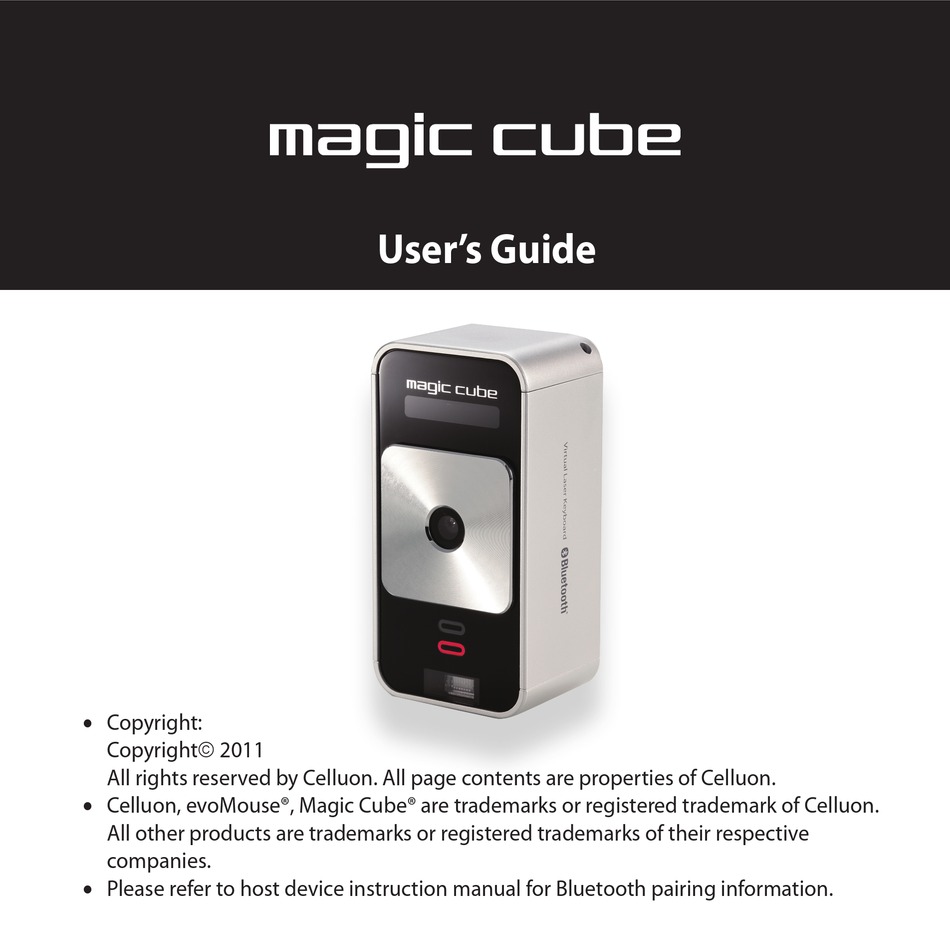

• Copyright:
Copyright 2011
All rights reserved by Celluon. All page contents are properties of Celluon.
• Celluon, evoMouse®, Magic Cube® are trademarks or registered trademark of Celluon.
All other products are trademarks or registered trademarks of their respective
companies.
• Please refer to host device instruction manual for Bluetooth pairing information.
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Magic Cube and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Celluon Magic Cube

Summary of Contents for Celluon Magic Cube

  • Page 1 • Copyright: Copyright 2011 All rights reserved by Celluon. All page contents are properties of Celluon. • Celluon, evoMouse®, Magic Cube® are trademarks or registered trademark of Celluon. All other products are trademarks or registered trademarks of their respective companies.

  • Page 2: Safety Precautions

    Safety Precautions 7. Avoid placing any object within the space between the main unit and the laser projection keyboard layout. 1. Avoid exposing this product to direct sunlight for 8. Please do not use this product on uneven or irregular extended periods of time, and keep it away from heat surfaces.
  • Page 3 - Reorient or relocate the receiving antenna. FCC Class B Notice - Increase separation between the equipment and receiver. This equipment has been tested and found to comply within - Connect the equipment to an outlet on a circuit different the limits for a Class B digital device, pursuant to Part 15 of from which the receiver is connected.
  • Page 4 ❏ Certification RF Exposure Information IEC 60825 : CLASS I • • The antenna used for this transmitter must be installed FDA : CLASS II • to provide a separation distance of at least 20 cm from KCC-CMM-CLK- all persons and must not be co-located or operating in MagicCube conjunction with any other antenna or transmitter.
  • Page 5 To protect the environment, Charging time increases if product is used while charging. dispose of this product separately from household waste once it has reached its end of life, or take it to your nearest Celluon Service Center.

  • Page 6: Table Of Contents

    Contents Cautions 1. For safety reasons, be sure to use only the mini USB to 1. Product Features ............12 USB cable specified for this product. 2. Package Contents ............12 2. Make sure to fully charge the battery before using the product for the first time.

  • Page 7: Product Features

    If 2. Package Contents the amount of reflected infrared light is appropriate, the • Magic Cube sensor will have no problem detecting objects such as • USB Cable fingers. However, if the amount of reflected infrared light •...
  • Page 8 4. Avoid a table or surface that is as transparent or Adjusting Sensitivity reflective as glass or mirror. Magic Cube features sensitivity adjustment for better 5. Avoid placing any objects within the space between the accuracy. To increase sensitivity, press and hold key and main unit and the laser projected keyboard layout.

  • Page 9: Identifying Parts And Their Functions

    4. Identifying Parts and their Functions. Caution Although this equipment is classified as Class 2 laser product, (1) Projector: Uses a red laser to project the image of a for your safety, do not directly expose your eyes to pattern keyboard onto a flat surface in front of the typist.

  • Page 10: Front View

    Front View Rear View Pattern Projector STRAP LOOP Sensor POWER SWITCH Battery / Bluetooth/ Keyboard/ Mouse/ Charging/ Operating Status LED Battery Lower LED USB Upper LED HID MODE MINI USB PORT Charging Connected Green Green SWITCH Full Green Keyboard Upper LED Orange Connected via USB Green Upper LED...

  • Page 11: Using The Projection Keyboard

    USB HID connection allows plug-n-play, without Bluetooth HID Switch (Top) installing a separate driver. 1) Connect Magic Cube® and host device using supplied USB cable. Host device must support USB HID. Note: Most Windows devices support USB HID. 2) Turn on Magic Cube®.

  • Page 12: Connecting Via Bluetooth Hid

    Connection via Bluetooth HID does not require * Some restrictions apply to Android devices. Please installation of separate driver. visit our website www.celluon.com or refer to quick Bluetooth HID profiles can be selected through slide guide for more information on connecting Magic switch behind the device: Cube®...
  • Page 13 Upon successful pairing, Blue LED will stop blinking and Tap only mouse cursor button once (do not press and become solid blue. hold the key). If Magic Cube® cannot locate previously paired host Adjusting key stroke sound level ■ device within 30 seconds, it will delete previously stored •...
  • Page 14 Bluetooth HID and a driver is not required. • Press and hold “FN” key and press left arrow key to 1) Make sure the Magic Cube® is on a HID mode. lower brightness. (Sliding button should be pushed to ‘up’ position).
  • Page 15 4) Turn Bluetooth on by tapping the ON button. 6) Locate “Celluon” under Device. 5) iPhone/iPad will now search for pairing device. 7) Select “Celluon” by tapping “Celluon”.
  • Page 16 LED on Magic Cube® becomes Celluon”. solid. 9) Type passkey on Magic Cube keyboard and press ENTER. 11) To turn off Magic Cube®, slide power button to the left. 12) With iPhone/iPad Bluetooth on, Magic Cube® will connect automatically upon power on.
  • Page 17 Note Pairing your Android device iPhone/iPad OS (iOS4) does not support mouse function. 1) Make sure the Magic Cube® is on HID mode by When keyboard does not function with successful pairing, sliding the slide button to up position. please make sure the device is in keyboard mode. If device 2) Turn on Magic Cube®...
  • Page 18 3) Navigate through Android as follows: 4) Turn on Bluetooth on Android by checking the box. Home → Main Menu → Settings → Wireless and Network → Bluetooth setting.
  • Page 19 5) From the same screen, with Bluetooth ON, tap on 6) Android device will detect “Celluon” and display Scan devices. message “Pair with this device”. 7) Tap on “Pair with this device”.
  • Page 20 9) Type passkey on Magic Cube® and press ENTER. Connecting via Bluetooth HID When correct passkey is entered, the Android 1) Please make sure Magic Cube® is on HID mode by device is paired. sliding the switch to the up position.
  • Page 21 USB cable. * Note: There are 6 stages of adjustments. Each 2) Turn on Magic Cube® by slide the power button to the adjustment requires repeated steps. right (ON). 3) Successful connection is indicated by solid green LED.
  • Page 22 Projection keyboard brightness adjustment – From keyboard mode, press and hold FN and tap on Press and hold FN and tap ‘right’ arrow to increase cursor button, located adjacent to space bar to switch brightness to mouse function. Blinking LED indicates mouse mode.

  • Page 23: Specification

    Specification From mouse mode, tap on cursor button to switch back to keyboard mode. Solid LED indicates keyboard ■ Pattern Projector mode. * Please note: mouse function is only available on Item Specification devices that support cursor/mouse function. Light Source Red Laser Diode Keyboard Layout Approx.
  • Page 24 ■ Electrical Characteristics ■ Environmental Conditions Item Specification Item Specification External Power Operating USB Power / less than 5V 500mA 0 ~ 35°C / 90%RH Supply Temperature Lithium-ion Polymer Battery, Storage Battery & Capacity -5 ~ 35°C / ~90%RH 700mAH(MAX) @ 3.7V Temperature Battery Operating Approx.
  • Page 25 Celluon, Inc. Ace High-End Tower 918, 235-2 Guro-dong, Guro-gu, Seoul, Korea (152-740) sales@celluon.com , support@celluon.com...
