Procedure for Disassembly and Reassembly
NDOOR UN T MODEL

. Front Panel

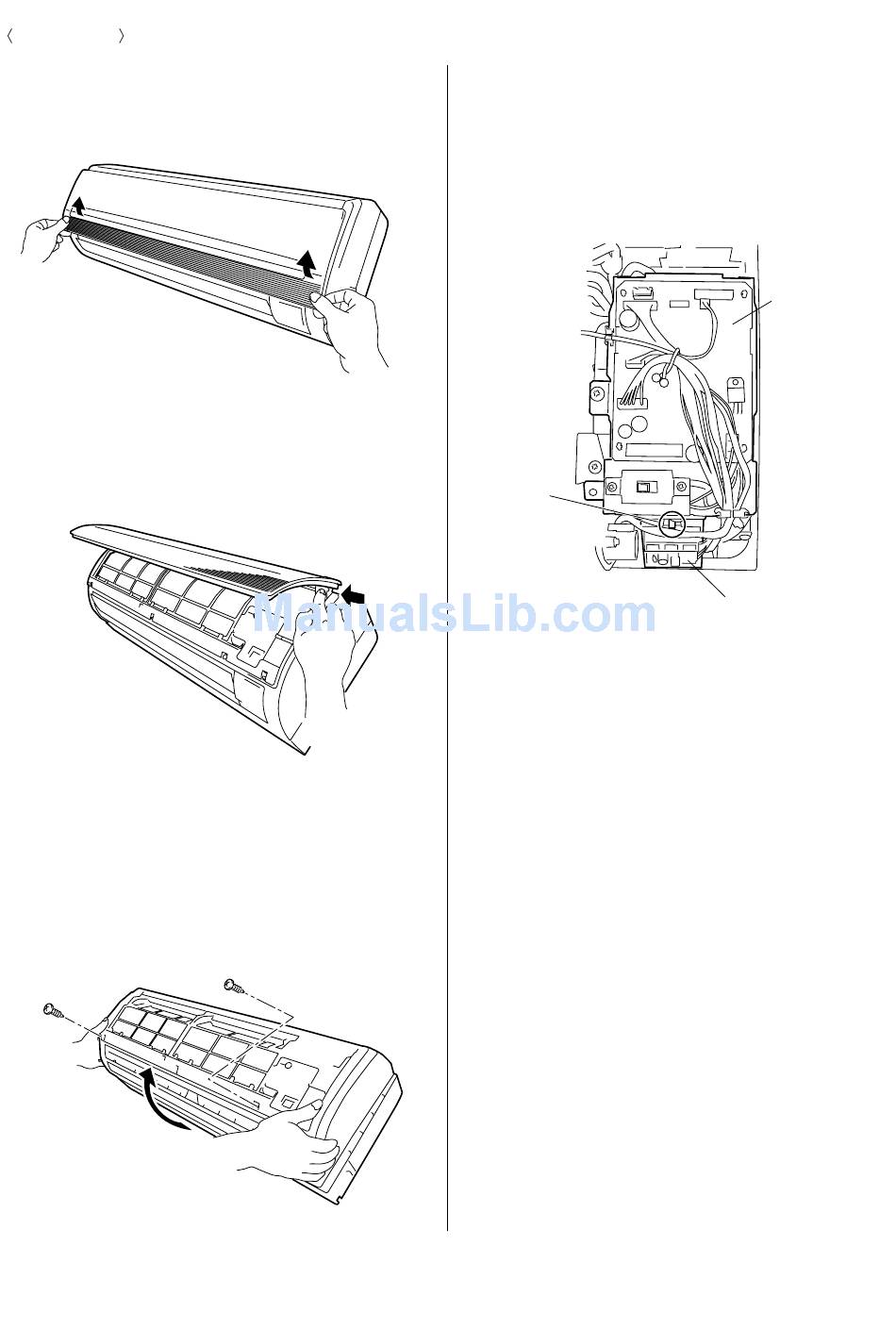

(1) Pull up the washable panel by holding it at both
lower sides with both hands.
(2)W hen the panel opens full, push the inner part
of the right arm into the inside and pull the panel
forward while closing it gradually.

2. Front cover

(1)A fter removing two screws, pull the center of
the front cover forward and release the claws.
(2) Hold the front cover at both lower sides and
pull them forward to remove.
RAS-18YH5
Fig. 1
Fig. 2
Fig. 3
3. Control P.W.B. and Indicating P.W.B.
(1)Remove each connector from the lead wire.
(2)Remove the four P .W.B. supports from the
control P .W.B.
(3)Pull the support hook at the upper side of the
indication lamp of the indicating
P .W.B. and pull out the P .W.B. forward.
Support hook
– 94 –
Control P .W.B.
ndicating P .W.B.
Fig. 4
