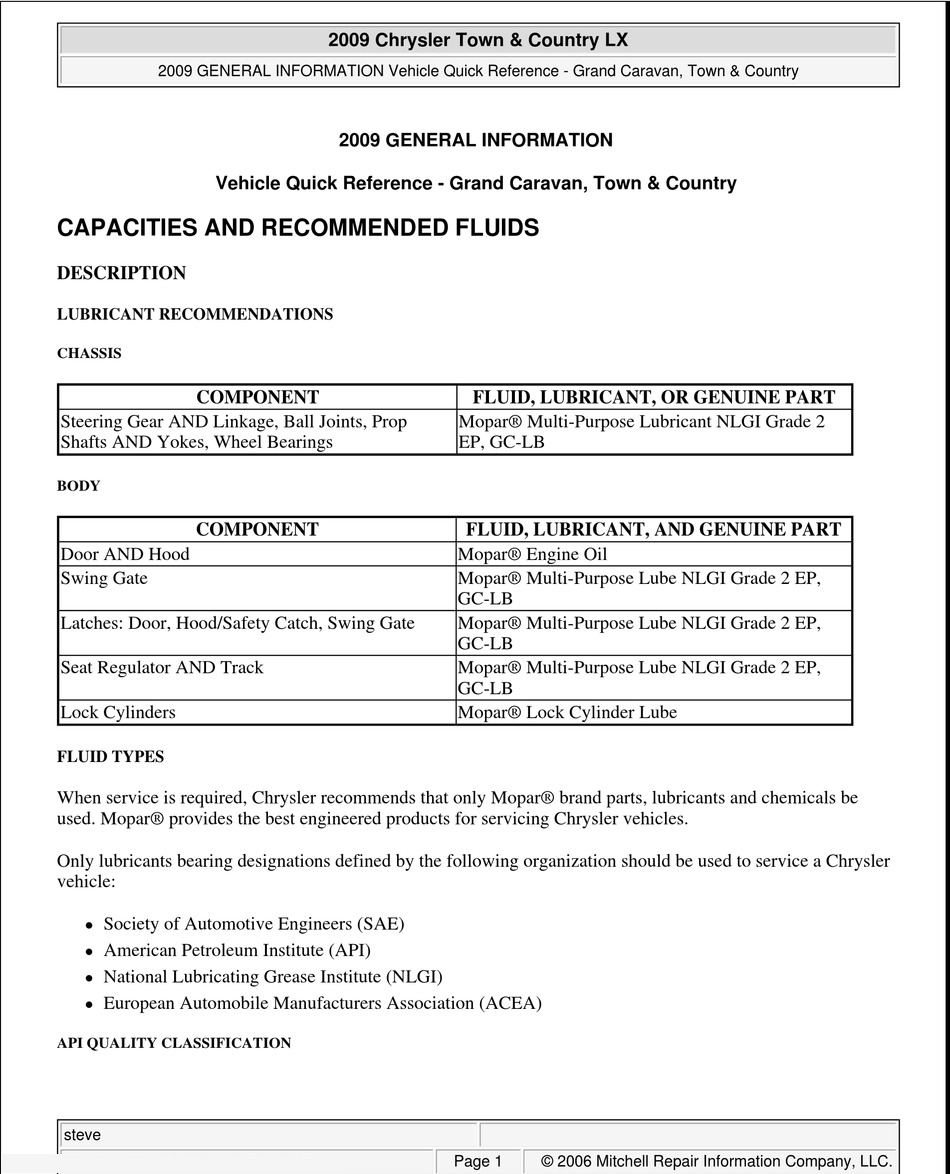

2009 GENERAL INFORMATION Vehicle Quick Reference - Grand Caravan, Town & Country
2009 GENERAL INFORMATION Vehicle Quick Reference - Grand Caravan, Town & Country
Vehicle Quick Reference - Grand Caravan, Town & Country
CAPACITIES AND RECOMMENDED FLUIDS
DESCRIPTION
LUBRICANT RECOMMENDATIONS
CHASSIS
COMPONENT
Steering Gear AND Linkage, Ball Joints, Prop
Shafts AND Yokes, Wheel Bearings
BODY
COMPONENT
Door AND Hood
Swing Gate
Latches: Door, Hood/Safety Catch, Swing Gate
Seat Regulator AND Track
Lock Cylinders
FLUID TYPES
When service is required, Chrysler recommends that only Mopar® brand parts, lubricants and chemicals be
used. Mopar® provides the best engineered products for servicing Chrysler vehicles.
Only lubricants bearing designations defined by the following organization should be used to service a Chrysler
vehicle:
Society of Automotive Engineers (SAE)
American Petroleum Institute (API)
National Lubricating Grease Institute (NLGI)
European Automobile Manufacturers Association (ACEA)
API QUALITY CLASSIFICATION
2009 Chrysler Town & Country LX
2009 Chrysler Town & Country LX
2009 GENERAL INFORMATION
FLUID, LUBRICANT, OR GENUINE PART
Mopar® Multi-Purpose Lubricant NLGI Grade 2
EP, GC-LB
FLUID, LUBRICANT, AND GENUINE PART
Mopar® Engine Oil
Mopar® Multi-Purpose Lube NLGI Grade 2 EP,
GC-LB
Mopar® Multi-Purpose Lube NLGI Grade 2 EP,
GC-LB
Mopar® Multi-Purpose Lube NLGI Grade 2 EP,
GC-LB
Mopar® Lock Cylinder Lube
