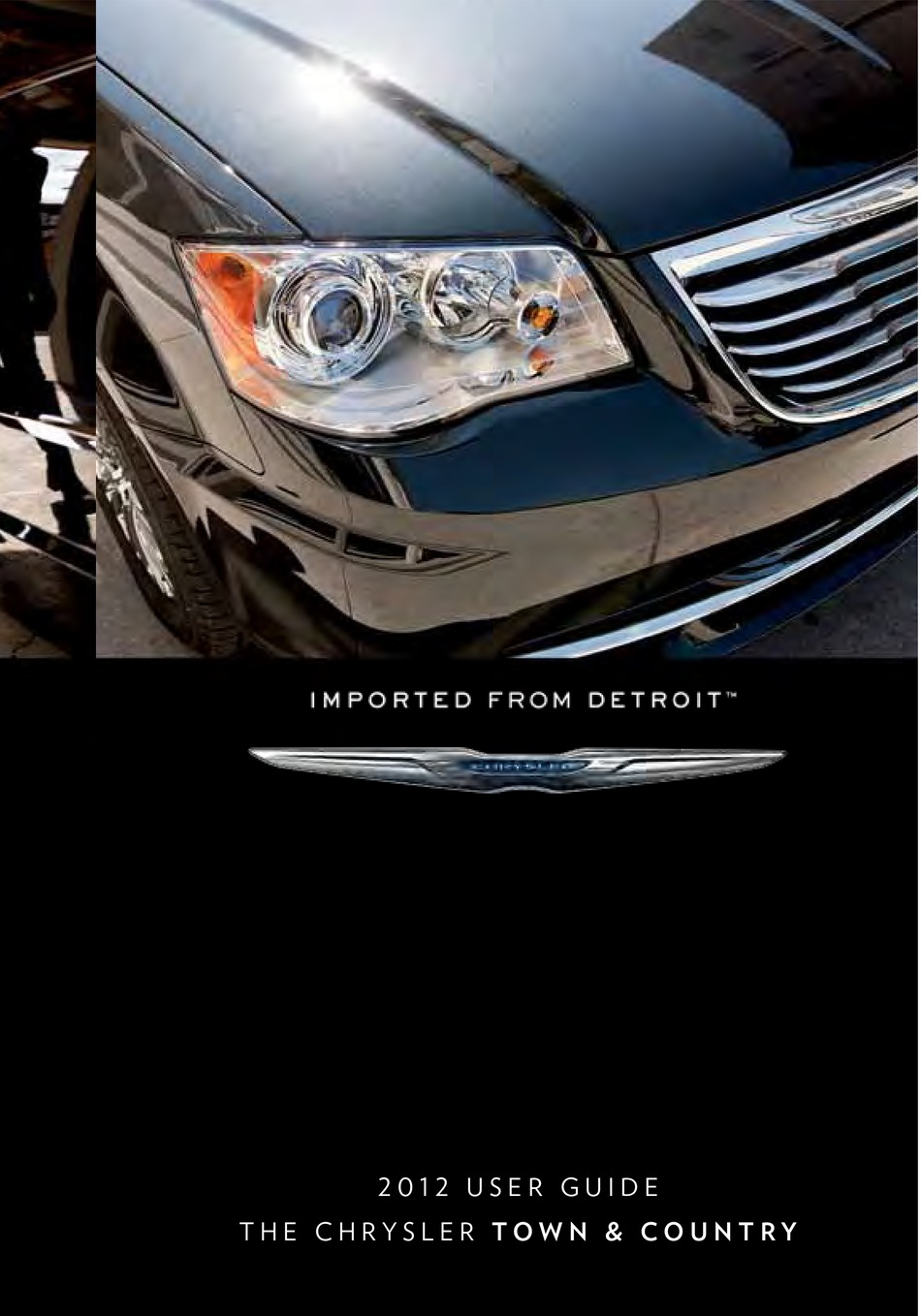

  • Page 1 � � � � u s E r g u i d E T h E C h r Y s L E r T O W N & C O u N T r y...
  • Page 2 road.

  • Page 3: Table Of Contents

    Bluetooth® Streaming Audio ..73 INTRODUCTION/WELCOME Video Entertainment System (VES)™ ..73 Welcome From Chrysler Group LLC ..2 Electronic Vehicle Information Center CONTROLS AT A GLANCE (EVIC) .

  • Page 4: Introduction/Welcome

    - all essentials that are traditional to our vehicles. Your new Chrysler Group LLC vehicle has characteristics to enhance the driver's control under some driving conditions. These are to assist the driver and are never a substitute for attentive driving.
  • Page 5 INTRODUCTION/WELCOME Vehicles Sold In Canada With respect to any vehicles sold in Canada, the name Chrysler Group LLC shall be deemed to be deleted and the name Chrysler Canada Inc. used in substitution therefore. WARNING! • Pedals that cannot move freely can cause loss of vehicle control and increase the risk of serious personal injury.

  • Page 6: Controls At A Glance

    CONTROLS AT A GLANCE...
  • Page 7 CONTROLS AT A GLANCE...

  • Page 8: Instrument Cluster

    CONTROLS AT A GLANCE INSTRUMENT CLUSTER Warning Lights - Low Fuel Warning Light - Charging System Light - Oil Pressure Warning Light - Anti-Lock Brake (ABS) Light** - Air Bag Warning Light** - Electronic Throttle Control (ETC) Light - Tire Pressure Monitoring System (TPMS) Light - Engine Temperature Warning Light - Seat Belt Reminder Light BRAKE...
  • Page 9 CONTROLS AT A GLANCE Indicators - Turn Signal Indicators - High Beam Indicator - Front Fog Light Indicator - Vehicle Security Indicator* - Electronic Stability Control (ESC) Off Indicator* - Electronic Speed Control ON Indicator - Electronic Speed Control Set Indicator Odometer Messages door - Door Ajar noFUSE* - Fuse Fault...

  • Page 10: Getting Started

    GETTING STARTED KEY FOB Locking And Unlocking The Doors/Liftgate • Press the LOCK button once to lock all the doors and the liftgate. Press the UNLOCK button once to unlock the driver’s door only and twice within five seconds to unlock all the doors and liftgate.
  • Page 11 GETTING STARTED • In case the Key Fob battery is dead, use the emergency key to open the door. If the vehicle is equipped with Keyless Enter-N-Go, remove the ENGINE START/STOP button by inserting the metal part of the emergency key under the chrome bezel at the 6 o’clock position and gently pry the button loose.

  • Page 12: Remote Start

    GETTING STARTED WARNING! • Leaving unattended children in a vehicle is dangerous for a number of reasons. A child or others could be severely injured or killed. Children should be warned not to touch the parking brake, brake pedal, or the shift lever. Do not leave the Key Fob inside the vehicle or in the ignition.
  • Page 13 GETTING STARTED To Unlock From The Driver or Passenger Side: • With a valid Keyless Enter-N-Go Key Fob located outside the vehicle and within 5 ft (1.5m) of the driver or passenger side door handle, grab either front door handle to unlock the door automatically.
  • Page 14 GETTING STARTED • If a Keyless Enter-N-Go door handle has not been used for 72 hours, the Keyless Enter-N-Go feature for that handle may time out. Pulling the deactivated front door handle will reactivate the door handle's Keyless Enter-N-Go feature. Lock or Unlock the Liftgate: •...

  • Page 15: Theft Alarm

    GETTING STARTED Stopping • Place the shift lever in PARK. • Press the ENGINE START/STOP button once. The ignition switch will return to the OFF position. • If the shift lever is not in PARK, the ENGINE START/STOP button must be held for two seconds and vehicle speed must be above 5 mph (8 km/h) before the engine will shut off.

  • Page 16: Seat Belt

    GETTING STARTED To Disarm • Keyless Enter-N-Go button installed: Press the Key Fob UNLOCK button or with one of the Key Fobs located outside the vehicle and within 5 ft (1.5m) of the driver's and passenger front door handles, grab the Keyless Enter-N-Go door handle and enter the vehicle, then press the Keyless Enter-N-Go Start/Stop button (requires at least one valid Key Fob in the vehicle).

  • Page 17: Supplemental Restraint System (Srs) - Air Bags

    GETTING STARTED SUPPLEMENTAL RESTRAINT SYSTEM (SRS) — AIR BAGS • This vehicle has Advanced Front Air Bags for both the driver and right front passenger as a supplement to the seat belt restraint system. The Advanced Front Air Bags will not deploy in every type of collision.

  • Page 18: Child Restraints

    GETTING STARTED CHILD RESTRAINTS • Children 12 years and under should ride properly buckled up in a rear seat, if available. According to crash statistics, children are safer when properly restrained in the rear seats rather than in the front. •...

  • Page 19: Installing The Child Restraint Using The Vehicle Seat Belts

    GETTING STARTED • Provide enough slack for the tether strap to reach the tether anchor located near the bottom of the seat back. • Clip tether hook to tether anchor. Ensure that the hook is firmly engaged and secure. • Remove all slack and tighten tether strap according to child restraint manufacturer’s instructions.

  • Page 20: Front Seats

    GETTING STARTED FRONT SEATS Power Seat • The power seat switch controls forward/back, up/down, and tilt adjustment. • The recline switch, located on the outboard side of the seat, controls seatback adjustment. Power Lumbar • Push the switch forward to increase the lumbar support.

  • Page 21: Rear Seats

    GETTING STARTED • Place the ignition switch in the ON position, select Remote Linked to Memory in the Electronic Vehicle Information Center (EVIC) and enter Yes. • Press 1 or 2 to recall the saved positions, or press UNLOCK on the programmed Key Fob. CAUTION! DO NOT place any article under a power seat or impede its ability to move as it may cause damage to the seat controls.
  • Page 22 GETTING STARTED • Pull upward on the seatback recliner lever located on the outboard side of the seat. • The non-adjustable head restraint and seatback will fold automatically during the seat tumble. • The seat will automatically tumble into position for easy storage. •...

  • Page 23: Third Row Seats

    GETTING STARTED Third Row Seats Third Row Power Recliner • The power recline feature, located on the side of the seat cushion, adjusts the seatback angle forward/rearward for occupant comfort. Third Row Power Seat Switch NOTE: • Disconnect the center shoulder belt from the small buckle and lower the head restraints before attempting to fold/stow the power third row seats.
  • Page 24 GETTING STARTED • Lower the outboard head restraints by pulling on the release strap marked “1” located on the outboard side of the head restraint. • Pull release strap marked “2” located on the rear of the seat to lower the seatback. •...

  • Page 25: Heated Seats

    GETTING STARTED CAUTION! The storage bin cover must be locked and flat to avoid damage from contact with the front seat tracks, which have minimal clearance to the cover. WARNING! • In a collision, serious injury could result if the seat storage bin covers are not properly latched.

  • Page 26: Heated Steering Wheel

    GETTING STARTED • If the High-level setting is selected, the system will automatically switch to Low-level after approximately 30 minutes. The Low-level setting will turn Off automatically after approximately 45 minutes. WARNING! • Persons who are unable to feel pain to the skin because of advanced age, chronic illness, diabetes, spinal cord injury, medication, alcohol use, exhaustion or other physical conditions must exercise care when using the seat heater.

  • Page 27: Adjustable Pedals

    GETTING STARTED WARNING! Do not adjust the steering wheel while driving. The tilt adjustment must be locked while driving. Adjusting the steering wheel while driving or driving without the tilt adjustment locked could cause the driver to lose control of the vehicle. Failure to follow this warning may result in you and others being severely injured or killed.

  • Page 28: Operating Your Vehicle

    OPERATING YOUR VEHICLE ENGINE BREAK-IN RECOMMENDATIONS • A long break-in period is not required for the engine and drivetrain (transmission and axle) in your vehicle. • Drive moderately during the first 300 miles (500 km). After the initial 60 miles (100 km), speeds up to 50 or 55 mph (80 or 90 km/h) are desirable.

  • Page 29: High Beams

    OPERATING YOUR VEHICLE Front Wipers Intermittent, Low And High Operation • Rotate the end of the lever to the first detent position for one of five intermittent settings, the second detent for low wiper operation and the third detent for high wiper operation. Rain Sensing Wipers •...

  • Page 30: Headlight Switch And Halo Light Switch

    OPERATING YOUR VEHICLE HEADLIGHT SWITCH AND HALO LIGHT SWITCH Automatic Headlights/Parking Lights/Headlights • Rotate the headlight switch, located on the instrument panel to the left of the steering wheel, to the first detent for parking lights and to the second detent for headlights •...

  • Page 31: Speed Control

    OPERATING YOUR VEHICLE SPEED CONTROL • The speed control switches are located on the steering wheel. Cruise ON/OFF • Push the ON/OFF button to activate the Speed Control. • CRUISE will appear on the instrument cluster to indicate the Speed Control is on.

  • Page 32: Electronic Range Selection (Ers)

    OPERATING YOUR VEHICLE ELECTRONIC RANGE SELECTION (ERS) • Electronic Range Select (ERS) allows you to limit the highest available transmission gear, and can be activated during any driving condition. When towing a trailer or operating the vehicle in off-road conditions, using ERS shift control will help you maximize both performance and engine braking.

  • Page 33: Manual Climate Controls

    OPERATING YOUR VEHICLE • The transmission will upshift sooner and downshift later. • The transmission will skip select gears during shifts to allow the engine to operate at lower speeds. • The torque converter clutch will engage sooner (lower engine rpm’s) and remain on longer.

  • Page 34: Three Zone Manual Climate Controls

    OPERATING YOUR VEHICLE THREE ZONE MANUAL CLIMATE CONTROLS Air Recirculation • Use recirculation for maximum A/C operation. • For window defogging, turn the recirculation button off. • Recirculation is not allowed in defrost mode. Heated Mirrors • The mirrors are heated to melt frost or ice. This feature is activated whenever you turn on the rear window defroster.

  • Page 35: Automatic Operation

    OPERATING YOUR VEHICLE Activating Rear Passenger Climate Controls • Rotate the rear blower control, located on the main climate control in the instrument panel, to the “REAR” position. This enables the rear passenger climate controls located in the headliner above the second row seats. THREE ZONE AUTOMATIC TEMPERATURE CONTROLS (ATC) Automatic Operation...

  • Page 36: Air Recirculation

    OPERATING YOUR VEHICLE SYNC Temperature Button • Push the SYNC button once to control driver and passenger temperatures simultaneously. Push the SYNC button a second time to control the temperatures individually. Air Recirculation • Use recirculation for maximum A/C operation. •...

  • Page 37: Parksense® Rear Park Assist

    OPERATING YOUR VEHICLE PARKSENSE® REAR PARK ASSIST • If an object is detected behind the rear bumper while the vehicle is in REVERSE, a warning will display in the instrument cluster and a tone, that changes speed depending on the distance of the object from the bumper, will sound. •...

  • Page 38: Power Sliding Side Doors

    OPERATING YOUR VEHICLE POWER SLIDING SIDE DOORS Automatic/Manual Operation • The power sliding door may be opened or closed manually or by using the buttons on the Key Fob, overhead console switch, or rear door switch. • Pulling the inside or outside power sliding door handle will also power open the power sliding doors.

  • Page 39: Power Sunroof

    OPERATING YOUR VEHICLE POWER SUNROOF Manual Open/Close • Press and hold the switch rearward to open or forward to close the sunroof. Any release of the switch will stop the movement, and the sunroof will remain in a partially open or closed position until the switch is pressed again.
  • Page 40 OPERATING YOUR VEHICLE WARNING! • Never leave children in a vehicle with the key in the ignition switch. Occupants, particularly unattended children, can become entrapped by the power sunroof while operating the power sunroof switch. Such entrapment may result in serious injury or death.

  • Page 41: Wind Buffeting

    OPERATING YOUR VEHICLE WIND BUFFETING • Wind buffeting can be described as a helicopter-type percussion sound. If buffeting occurs with the rear windows open, adjust the front and rear windows together. • If buffeting occurs with the sunroof open, adjust the sunroof opening, or adjust any window.

  • Page 42: Electronics

    ELECTRONICS YOUR VEHICLE'S SOUND SYSTEM...
  • Page 43 ELECTRONICS...

  • Page 44: Media Center 130 (Sales Code Res)

    ELECTRONICS Media Center 130 (Sales Code RES) NOTE: • Your radio has many features that add to the comfort and convenience of you and your passengers. Some of these radio features should not be used when driving because they take your eyes from the road or your attention from driving. Clock Setting •...
  • Page 45 ELECTRONICS Store Radio Presets • Press the “SET/RND” button once and SET 1 will show in the display. Then select button (1–6). • A second station may be added to each push button. Press the “SET/RND” button twice and SET 2 will show in the display. Then select button (1–6). CD/DISC Operation Seek Up/Down Buttons •...

  • Page 46: Media Center 130 With Satellite Radio (Sales Code Res + Rsc)

    ELECTRONICS Media Center 130 with Satellite Radio (Sales Code RES + RSC) NOTE: • Your radio may not be equipped with the Uconnect™ Voice Command and Uconnect™ Phone features. To determine if your radio has these features, press the Voice Command button on the radio.

  • Page 47: Radio Operation

    ELECTRONICS Radio Operation Seek Up/Down Buttons • Press to seek through radio stations in AM, FM, or SAT bands. • Hold either button to bypass stations without stopping. Store Radio Presets • Press the “SET/RND” button once and SET 1 will show in the display. Then select button (1–6).

  • Page 48: Media Center 430/430N (Sales Code Rbz/Rhb)

    ELECTRONICS LIST Button • Press the “LIST” button to bring up a list of all folders on the CD. Scroll up or down the list by turning the “TUNE/SCROLL” control knob. • To select a folder from the list, press the “TUNE/SCROLL” control knob and the radio will begin playing the files contained in that folder.

  • Page 49: Display Settings

    ELECTRONICS • Your radio has many features that add to the comfort and convenience of you and your passengers. Some of these radio features should not be used when driving because they take your eyes from the road or your attention from driving. Clock Setting •...
  • Page 50 ELECTRONICS • Select the “Auto Color Mode” soft-key to switch to automatic daytime/nighttime mode and to control the brightness of the display using the dimmer switch of the vehicle. • Touch the “EXIT” soft-key to save your settings. Radio Operation •...
  • Page 51 ELECTRONICS CD/DVD Disc Operation • Press the “MEDIA” hard key to display the media source tabs at the top of the screen. Select the source by touching the “HDD,” “DISC,” or “AUX” media source soft-key tab. Your Touch-Screen Radio will usually automatically switch to the appropriate mode NOTE: when something is first connected or inserted into the system.
  • Page 52 ELECTRONICS • The functions of the portable device are controlled using the device buttons. The volume may be controlled using the radio or portable device. Hard Disk Drive (HDD) Operation • The Hard Disk Drive (HDD) mode gives you access to the audio files on the internal hard disk drive.
  • Page 53 ELECTRONICS • Select the folders or titles you would like to copy, then touch the “DONE” soft-key to start the copy process. NOTE: The copy progress is shown in the lower left corner of the screen. Copying Pictures To The HDD •...
  • Page 54 ELECTRONICS Playing Music From The HDD • Press the “MEDIA” hard key to display the media source tabs at the top of the screen. Touch the “HDD” soft-key tab. Touch the desired track soft-key to play or touch the “SEARCH/BROWSE” soft-key to search by artist, by album, by song, by genre, from a folder, or from Favorites.
  • Page 55 ELECTRONICS Main Navigation Menu Finding Points Of Interest • From the main Navigation menu, touch “Where To?,” then touch “Points of Interest.” • Select a Category and then a subcategory, if necessary. • Select your destination and touch “Go.” Finding A Place By Spelling The Name •...
  • Page 56 ELECTRONICS Following Your Route • Your route is marked with a magenta line on the map. If you depart from the original route, your route is recalculated. A speed limit icon could appear as you travel on major roadways. Adding A Via Point •...

  • Page 57: Media Center 730N (Sales Code Rhr)

    ELECTRONICS Edit Home Location • From the main Navigation menu, touch “Where To?,” then touch “Favorites.” • Next, touch the location you would like to edit, then touch “Press for More,” and then “Edit.” Go Home • A Home location must be saved in the system. From the Main Navigation menu, touch “Where To?,”...
  • Page 58 ELECTRONICS Clock Setting • Turn the radio on, then touch the screen where the time is displayed. • Touch the “USER CLOCK” soft-key. • To adjust the hours, touch either the “HOUR FORWARD” or “HOUR BACKWARD” soft-key. • To adjust the minutes, touch either the “MINUTE FORWARD” or “MINUTE BACKWARD”...
  • Page 59 ELECTRONICS Radio Operation • To access Radio Mode, touch the “RADIO/MEDIA” hard-key on the left side of the faceplate repeatedly until AM/FM/SAT appears at the top of the screen, then touch the “AM,” “FM” or “SAT” soft-key to select the band. Seek Up/Seek Down •...
  • Page 60 ELECTRONICS CD/DVD Disc Operation • Press the “RADIO/MEDIA” hard key until the media source tabs are displayed at the top of the screen. Select the source by touching the “HDD,” “DISC,” or “AUX” media source soft-key tab. Your Touch-Screen Radio will usually automatically switch to the appropriate mode NOTE: when something is first connected or inserted into the system.
  • Page 61 ELECTRONICS • The functions of the portable device are controlled using the device buttons. The volume may be controlled using the radio or portable device. Hard Disk Drive (HDD) Operation • The Hard Disk Drive (HDD) mode gives you access to the audio files on the internal hard disk drive.
  • Page 62 ELECTRONICS • Touch the “MY MUSIC” soft-key, then touch the “Add Music Files” to HDD soft-key. • Touch “From USB” soft-key, then select the folders or titles you would like to copy, and then touch the “SAVE” soft-key to start the copy process. The copy progress is shown in the NOTE: lower left corner of the screen.
  • Page 63 ELECTRONICS NOTE: • A check mark in the My Pictures screen indicates the currently used picture. • You can also delete pictures by touching the “Delete” soft-key. Playing Music From The HDD • Press the “RADIO/MEDIA” hard key until the media source tabs are displayed at the top of the screen.
  • Page 64 ELECTRONICS Main Navigation Menu Finding Points Of Interest • From the NAV main menu, touch the “Points of Interest” soft-key. • Select a Category and then a subcategory, if necessary. • Select your destination and touch “GO.” Finding A Place By Entering The Street Address •...
  • Page 65 ELECTRONICS • Touch the “NEARBY POI”soft-key to search for a local Point of Interest. • Touch the “SAVE LOCATION” soft-key to save the current location in the Saved Locations memory. Route Guidance • After starting route guidance, the system calculates the route and announces: “Follow the arrows on the display.”...

  • Page 66: Sirius Xm™ Satellite Radio/Travel Link

    ELECTRONICS • From the Nav – Main Menu, touch “Guide Me Home” to enter your home address. If no home address has been set, touch “YES” to access the Enter Home Address menu. • Touch “Street Address” to enter your address. Touch the soft-key with your state’s name and enter your street name into the speller.
  • Page 67 ELECTRONICS Search/Browse • Touch the “magnifying glass” soft-key to search/browse the Sirius XM™ channel listing by Favorites and Categories such as Song, Artist and Channel Name. The Search/Browse also allows you manage your Favorites. Sirius XM™ Satellite Radio Favorites (SAT Favorites) •...
  • Page 68 ELECTRONICS Replay • While you are in SAT mode, you can replay 44 minutes of the current Sirius XM™ channel (when the channel is changed, this audio buffer is erased). Press the REPLAY button to listen to the stored audio. •...

  • Page 69: Steering Wheel Audio Controls

    ELECTRONICS View and store your favorite location, theater and sport teams for 1 – Favorites quick access. View detailed weather conditions, forecasts and ski/snowboarding 2 – Forecast conditions at local resorts. View ski and snowboarding conditions at local ski resorts. 3 –...

  • Page 70: Ipod®/Usb/Mp3 Control

    For supported audio file formats, refer to the USB Port section in the Owner's Manual on the DVD. Refer to https://www.chrysler.com/uconnect website for a list of tested iPod®s. Some iPod® software versions may not fully support the USB port features.

  • Page 71: Uconnect™ Phone

    The Uconnect™ Phone requires a mobile phone equipped with the Bluetooth® NOTE: Hands-Free Profile, Version 1.0 or higher. For Uconnect™ customer support, call 1–877–855–8400 or visit www.chrysler.com/uconnect. Phone Pairing Pairing is a one-time initial setup before using the phone. NOTE: •...

  • Page 72: Making A Phone Call

    ELECTRONICS Phonebook Phonebook Download – Automatic Phonebook Transfer From Mobile Phone If equipped and specifically supported by your phone, Uconnect™ Phone automatically downloads names (text names) and number entries from your mobile phone’s phonebook. Specific Bluetooth® Phones with Phone Book Access Profile may support this feature.

  • Page 73: Uconnect™ Voice Command

    ELECTRONICS Mute (Or Unmute) Microphone During Call • During a call, press the “Voice Command” button • (After the BEEP), say “mute” (or “mute off”). Transfer Ongoing Call Between Handset And Vehicle • During a call, press the “Voice Command” button •...
  • Page 74 • It also allows you to respond by selecting from various pre-defined phrases. • Not all phones are compatible with this feature. Refer to the phone compatibility list at www.chrysler.com/uconnect. Connected mobile phones must be bluetooth-compatible, and paired with your radio.

  • Page 75: Bluetooth® Streaming Audio

    ELECTRONICS • Press the “Voice Command” button and after the BEEP, say “SMS” to get started. To access the tutorial, press the “Voice Command” button . After the BEEP, NOTE: say “tutorial”. Press any hard-key/button or touch the display (Touch-Screen radio) to cancel the tutorial.
  • Page 76 ELECTRONICS • The video screen displays information in a split screen format. The left side of the screen is referred to as Channel 1 and the right side of the screen is referred to as Channel 2. All modes except video modes are displayed in a split screen format. •...

  • Page 77: Electronic Vehicle Information Center (Evic)

    ELECTRONICS ELECTRONIC VEHICLE INFORMATION CENTER (EVIC) • The EVIC features a driver interactive display that is located in the instrument cluster. Pressing the controls on the left side of the steering wheel allows the driver to select vehicle information and Personal Settings.

  • Page 78: Programmable Features

    ELECTRONICS PROGRAMMABLE FEATURES Electronic Vehicle Information Center (EVIC) • The EVIC can be used to program the following Personal Settings. Press and release the MENU button until Personal Settings displays, then press the DOWN button scroll through the settings. Press the SELECT button to change the setting.

  • Page 79: Universal Garage Door Opener (Homelink®)

    ELECTRONICS Sound Horn With Lock • To turn the horn chirp on or off when the doors are locked: • Press the LOCK button for at least 4 seconds, but no longer than 10 seconds. Then, press the PANIC button while still holding the LOCK button. •...

  • Page 80: Programming A Non-Rolling Code

    ELECTRONICS Programming A Rolling Code • For programming Garage Door Openers that were manufactured after 1995. These Garage Door Openers can be identified by the “LEARN” or “TRAIN” button located where the hanging antenna is attached to the Garage Door Opener. It is NOT the button that is normally used to open and close the door.

  • Page 81: Power Inverter

    ELECTRONICS NOTE: • If the indicator light stays on constantly, programming is complete and the garage door (or device) should activate when the HomeLink® button is pressed. • To program the two remaining HomeLink® buttons, repeat each step for each remaining button.

  • Page 82: Power Outlets

    ELECTRONICS WARNING! To Avoid Serious Injury or Death: Do not use a three-prong adaptor. Do not insert any objects into the receptacles. Do not touch with wet hands. Close the lid when not in use. If this outlet is mishandled, it may cause an electric shock and failure. POWER OUTLETS •...
  • Page 83 ELECTRONICS NOTE: • Do not exceed the maximum power of 160 Watts (13 Amps) at 12 Volts. If the 160 Watt (13 Amp) power rating is exceeded, the fuse protecting the system will need to be replaced. • Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlet as this will damage the outlet and blow the fuse.

  • Page 84: Utility

    UTILITY IN-FLOOR STORAGE – STOW 'N GO® Second Row Seat Storage Bins • Storage bins are located in the floor in front of the second row seats that can be used when the second row seat is in the upright position. Pull up on the storage bin latch to open the cover.

  • Page 85: Trailer Towing Weights (Maximum Trailer Weight Ratings)

    UTILITY...

  • Page 86: Recreational Towing (Behind Motorhome, Etc.)

    UTILITY RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.) If the vehicle requires towing, make sure all four wheels are off the ground. NOTE: CAUTION! Towing this vehicle behind another vehicle (flat-towing with all four wheels on the ground) is not recommended.

  • Page 87: What To Do In Emergencies

    WHAT TO DO IN EMERGENCIES 24-HOUR TOWING ASSISTANCE • Dial toll-free 1-800-521-2779 or 1-800-363-4869 for Canadian residents. • Provide your name, vehicle identification number and license plate number. • Provide your location, including telephone number, from which you are calling. •...
  • Page 88 WHAT TO DO IN EMERGENCIES • Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when the system is not operating properly. The TPMS malfunction indicator is combined with the low tire pressure telltale. When the system detects a malfunction, the telltale will flash for approximately one minute and then remain continuously illuminated.

  • Page 89: Charging System Light

    WHAT TO DO IN EMERGENCIES BRAKE - Brake Warning Light • The Brake Warning light illuminates when there is either a system malfunction or the parking brake is applied. If the light is on and the parking brake is not applied, it indicates a possible brake hydraulic malfunction, brake booster problem or an Anti-Lock Brake System problem.

  • Page 90: Air Bag Warning Light

    WHAT TO DO IN EMERGENCIES - Anti-Lock Brake (ABS) Light • This light monitors the Anti-Lock Brake System (ABS). • If the light is not on during starting, stays on, or turns on while driving, we recommend you drive to the nearest service center and have the vehicle serviced immediately. - Electronic Throttle Control (ETC) Light •...

  • Page 91: If Your Engine Overheats

    WHAT TO DO IN EMERGENCIES IF YOUR ENGINE OVERHEATS • In any of the following situations, you can reduce the potential for overheating by taking the appropriate action. • On the highways — slow down. • In city traffic — while stopped, place the transmission in NEUTRAL, but do not increase engine idle speed.

  • Page 92: Jacking And Tire Changing

    WHAT TO DO IN EMERGENCIES JACKING AND TIRE CHANGING Jack Location • The jack, jack handle and winch handle tools are stowed behind the rear left side trim panel in the rear cargo area. Turn the two cover latches to release the cover. •...
  • Page 93 WHAT TO DO IN EMERGENCIES 2. Open the front drawer to expose the storage compartment. 3. Remove the liner from the console's storage compartment to access the spare tire winch drive nut. Premium/Base/Cargo Center Console • Pull the Winch Cover assembly plug (if equipped) to access the winch drive nut.
  • Page 94 WHAT TO DO IN EMERGENCIES Spare Tire Tools • The tool pouch contains three pieces and can be assembled into a spare tire hook; to remove the compact spare tire/cover assembly from under the vehicle, or a Winch T-handle; to raise/lower the compact spare tire/cover assembly. A —...

  • Page 95: Spare Tire Removal Instructions

    WHAT TO DO IN EMERGENCIES Spare Tire Removal Instructions • The spare tire is located under the vehicle beneath the center console area. 1. Assemble the spare tire tools into a T-handle and place the square end over the spare tire winch drive nut. 2.

  • Page 96: Preparations For Jacking

    WHAT TO DO IN EMERGENCIES Preparations For Jacking 1. Park the vehicle on a firm, level surface. Avoid ice or slippery areas. 2. Turn on the Hazard Warning flasher. 3. Set the parking brake. 4. Place the shift lever into PARK. 5.

  • Page 97: Jacking Instructions

    WHAT TO DO IN EMERGENCIES Jacking Instructions 1. Loosen (but do not remove) the wheel lug nuts by turning them to the left one turn while the wheel is still on the ground. 2. There are two jack engagement locations on each side of the vehicle body.
  • Page 98 WHAT TO DO IN EMERGENCIES In some situations the jack may need NOTE: to be placed on its side in order to be pushed under the vehicle. Return the jack to its correct orientation once it is under the vehicle. 3.

  • Page 99: Securing The Spare Tire

    WHAT TO DO IN EMERGENCIES 13. Check the compact spare tire pressure as soon as possible. Correct the tire pressure, as required. Securing The Spare Tire 1. Assemble the winch handle extensions to form a T-handle and fit the winch T-handle over the drive nut.
  • Page 100 WHAT TO DO IN EMERGENCIES 6. Finish tightening the lug nuts. Push down on the wrench while at the end of the handle for increased leverage. Tighten the lug nuts in a star pattern until each nut has been tightened twice. The correct tightness of each lug nut is 102 ft/lbs (138 N·m). If in doubt about the correct tightness, have them checked with a torque wrench by your authorized dealer or service station.
  • Page 101 WHAT TO DO IN EMERGENCIES WARNING! (Continued) • Being under a jacked-up vehicle is dangerous. The vehicle could slip off the jack and fall on you. You could be crushed. Never put any part of your body under a vehicle that is on a jack.

  • Page 102: Jump-Starting

    WHAT TO DO IN EMERGENCIES JUMP-STARTING • If your vehicle has a discharged battery it can be jump-started using a set of jumper cables and a battery in another vehicle or by using a portable battery booster pack. • Jump-starting can be dangerous if done improperly so please follow the procedures in this section carefully.
  • Page 103 WHAT TO DO IN EMERGENCIES • Disconnect the positive (+) end of the jumper cable from the positive (+) post of the discharged vehicle. • If frequent jump-starting is required to start your vehicle you should have the battery and charging system inspected at your authorized dealer.

  • Page 104: Shift Lever Override

    WHAT TO DO IN EMERGENCIES SHIFT LEVER OVERRIDE • If a malfunction occurs and the shift lever cannot be moved out of the PARK position, you can use the following procedure to temporarily move the shift lever: • To access the shift lever override, remove the cover located to the top right of the shift lever in the instrument panel.

  • Page 105: Towing A Disabled Vehicle

    WHAT TO DO IN EMERGENCIES...

  • Page 106: Freeing A Stuck Vehicle

    WHAT TO DO IN EMERGENCIES FREEING A STUCK VEHICLE • If your vehicle becomes stuck in mud, sand or snow, it can often be moved by a rocking motion. Turn your steering wheel right and left to clear the area around the front wheels. Then, move the shift lever back and forth between REVERSE and DRIVE.

  • Page 107: Event Data Recorder (Edr)

    WHAT TO DO IN EMERGENCIES EVENT DATA RECORDER (EDR) • This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems performed.

  • Page 108: Maintaining Your Vehicle

    MAINTAINING YOUR VEHICLE OPENING THE HOOD • Pull the hood release lever located on the instrument panel, below the steering column. • Raise the hood and locate the safety catch lever, in the middle of the hood opening. • Move the safety latch while lifting the hood at the same time.
  • Page 109 MAINTAINING YOUR VEHICLE CAUTION! • Damage to the fuel system or emissions control system could result from using an improper gas cap. A poorly fitting cap could let impurities into the fuel system and may cause the MIL to turn on, due to fuel vapors escaping from the system. •...

  • Page 110: Engine Compartment

    MAINTAINING YOUR VEHICLE...

  • Page 111: Fluids And Capacities

    MAINTAINING YOUR VEHICLE...

  • Page 112: Maintenance Chart

    MAINTAINING YOUR VEHICLE...

  • Page 113: Maintenance Record

    MAINTAINING YOUR VEHICLE Maintenance Record Odometer Date Signature, Authorized Service Center 8,000 Miles (13,000 km) or 6 Months 16,000 Miles (26,000 km) or 12 Months 24,000 Miles (39,000 km) or 18 Months 32,000 Miles (52,000 km) or 24 Months 40,000 Miles (65,000 km) or 30 Months 48,000 Miles...

  • Page 114: Fuses

    MAINTAINING YOUR VEHICLE FUSES...
  • Page 115 MAINTAINING YOUR VEHICLE Integrated Power Module (fuses) • The Integrated Power Module (fuses) is located in the engine compartment near the battery. This center contains cartridge fuses, mini-fuses and relays. Cavity Cartridge Fuse Mini-Fuse Description 40 Amp Green Power Folding Seat 30 Amp Pink Power Liftgate Module 30 Amp Pink...
  • Page 116 MAINTAINING YOUR VEHICLE Cavity Cartridge Fuse Mini-Fuse Description 15 Amp Blue Ignition Off Draw — Vehicle Entertainment System (IOD-VES), Satellite Digital Audio Receiver (SDARS), DVD, Hands-Free Module (HFM), Universal Garage Door Opener (UGDO), Vanity Lamp (VANITY LP), Streaming Video Module 10 Amp Red (Ignition Off Draw) IOD-HVAC/ 30 Amp Green...
  • Page 117 MAINTAINING YOUR VEHICLE Cavity Cartridge Fuse Mini-Fuse Description 10 Amp Red Power Mirror Switch (PWR MIRR SW), Driver Window Switch (DRVR WIND SW) 10 Amp Red Wireless Ignition Module, Keyless Entry Module 10 Amp Red Next Generation Controller (NGC), PCM, Transmission Feed (TRANS FEED), TCM 10 Amp Red Occupant Classification Module...

  • Page 118: Tire Pressures

    MAINTAINING YOUR VEHICLE TIRE PRESSURES • Check the inflation pressure of each tire, including the spare tire, at least monthly and inflate to the recommended pressure for your vehicle. • The tire pressures recommended for your vehicle are found on the “Tire and Loading Information”...

  • Page 119: Exterior Bulbs

    MAINTAINING YOUR VEHICLE CAUTION! Do not use scouring pads, steel wool, a bristle brush, or metal polishes. Do not use oven cleaner. These products may damage the wheel's protective finish. Avoid automatic car washes that use acidic solutions or harsh brushes that may damage the wheel's protective finish.

  • Page 120: Consumer Assistance

    CONSUMER ASSISTANCE CHRYSLER GROUP LLC CUSTOMER CENTER P.O. Box 21–8004 Auburn Hills, MI 48321–8004 Phone: 1–800–247–9753 CHRYSLER CANADA INC. CUSTOMER CENTER P.O. Box 1621 Windsor, Ontario N9A 4H6 Phone: 1–800–465–2001 (English) Phone: 1–800–387–9983 (French) ASSISTANCE FOR THE HEARING IMPAIRED • To assist customers who have hearing difficulties, the manufacturer has installed special TDD (Telecommunication Devices for the Deaf) equipment at its customer center.

  • Page 121: Reporting Safety Defects In The 50 United States And Washington, D.c

    CONSUMER ASSISTANCE NOTE: • The Owner's Manual and User Guide electronic files are also available on the Chrysler, Jeep, Ram Truck and Dodge websites. • Click on the "For Owners" tab, select "Owner/Service Manuals", then select your desired model year and vehicle from the drop down lists.

  • Page 122: Mopar Accessories

    • For the full line of Authentic Chrysler Accessories by Mopar, visit your local Chrysler dealership or online at mopar.com.

  • Page 123: Index

    INDEX Airbag ....15 Emergency Key ....8 Alarm, Panic .
  • Page 124 INDEX Inverter Outlet (115V) ... 79 Phone (Uconnect) ... . . 69 Inverter, Power ....79 Placard, Tire and Loading Information .
  • Page 125 INDEX Start/Stop Button Removal ..8,12 Trailer Towing Starting Trailer and Tongue Weight ..83 Remote ....10 Trailer Weight .

  • Page 126: Faq (How To?)

    • How do I configure my Universal Garage Door Opener (HomeLink)? pg. 77 UTILITY • How do I know how much I can tow with my Chrysler Town & Counrty? pg. 83 WHAT TO DO IN EMERGENCIES • What do I do if my TPMS warning light is blinking? pg. 85 •...
  • Page 127 NOTES...
  • Page 128 NOTES...
  • Page 129 NOTES...
  • Page 130 NOTES...
  • Page 131 For additional information on accessories to help personalize your vehicle, visit mopar.com or your local Chrysler dealer. D r i v i n g a n D a l c o h o l : Drunken driving is one of the most frequent causes of collisions.
  • Page 132 Download a FREE Vehicle Information App by visiting your application store, Keyword (Chrysler), or scanning the Microsoft Tag. To put Microsoft Tags to work for you, use your mobile phone’s browser or App store to download a Microsoft Tag reader, like the free one at www.gettag.mobi.

This manual is also suitable for:

Town and country 2012Town and country

Table of Contents
