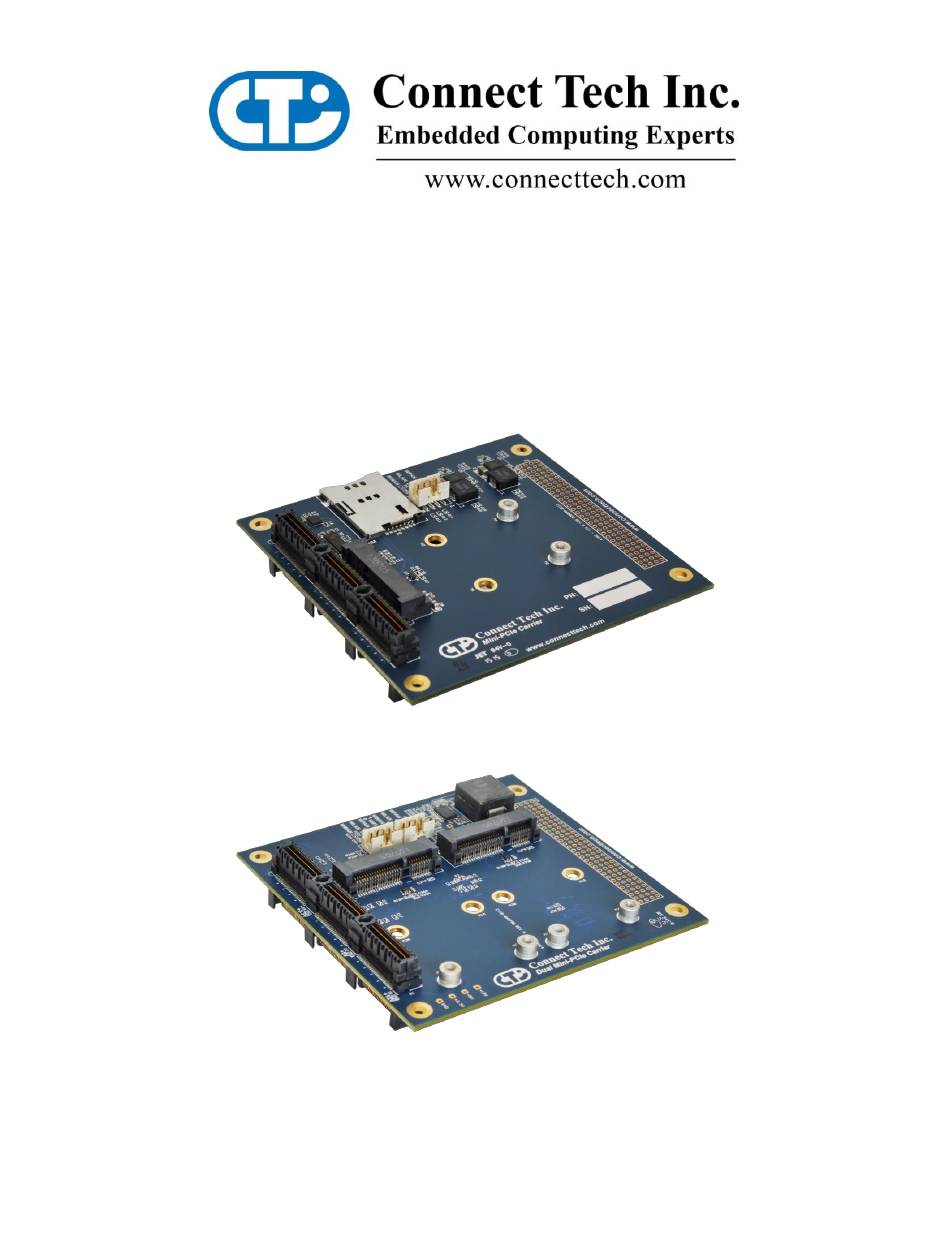

- Page 1 Mini-PCIe Carriers Users Guide Connect Tech Inc. Tel: 519-836-1291 42 Arrow Road Toll: 800-426-8979 (North America only) Guelph, Ontario Fax: 519-836-4878 N1K 1S6 Email: sales@connecttech.com www.connecttech.com support@connecttech.com CTIM-00446 Revision 0.01 2016/03/11...
-
Page 2: Table Of Contents
The information contained within this user’s guide, including but not limited to any product specification, is subject to change without notice. Connect Tech assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user’s guide. -
Page 3: Customer Support Overview
Customer Support Overview If you experience difficulties after reading the manual and/or using the product, contact the Connect Tech reseller from which you purchased the product. In most cases the reseller can help you with product installation and difficulties. -
Page 4: Limited Product Warranty
Connect Tech Inc. provides a two year Warranty for the Mini-PCIe Carriers. Should this product, in Connect Tech Inc.'s opinion, fail to be in good working order during the warranty period, Connect Tech Inc. will, at its option, repair or replace this product at no charge, provided that the product has not been subjected to abuse, misuse, accident, disaster or non-Connect Tech Inc. -
Page 5: Esd Warning
ESD Warning Electronic components and circuits are sensitive to ElectroStatic Discharge (ESD). When handling any circuit board assemblies including Connect Tech Carrier Assemblies, it is recommended that ESD safety precautions be observed. ESD safe best practices include, but are not limited to: ... -

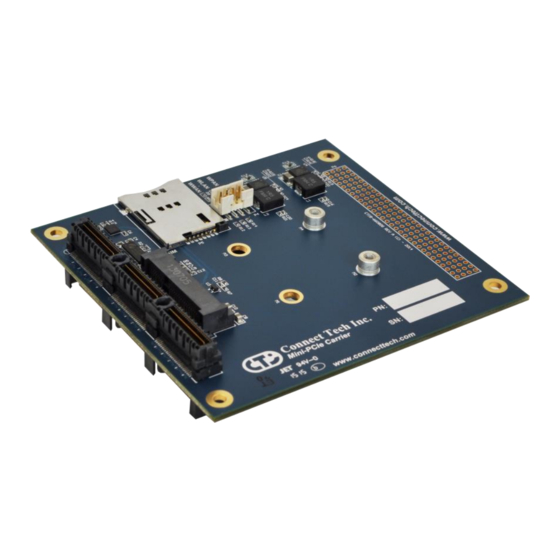

Page 6: Introduction
Mini-PCIe Carriers Users Guide www.connecttech.com Introduction Connect Tech’s Mini-PCIe Carriers are PCIe/104 The SMARC/SL Carrier supports an extended temperature range of -40 C to +85 C and offers a very small footprint; ideal for mobile or stationary applications. Product Features and Specifications... -
Page 7: Product Overview
Mini-PCIe Carriers Users Guide www.connecttech.com Product Overview ADG075/098 Block Diagram Document: CTIM-00446 Page 7 of 16 Date: 2016/03/11 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 8: Adg077/097 Block Diagram
Mini-PCIe Carriers Users Guide www.connecttech.com ADG077/097 Block Diagram Document: CTIM-00446 Page 8 of 16 Date: 2016/03/11 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 9: Connector Locations
Mini-PCIe Module Connector P4(A&B) FCI 2x4 MiniTek WiFi Control Connector P5(A&B) SIM Socket SIM Card Socket for Cellular Mini-PCIe Modules PCI-104 Connector PCI-104 Stack Connector Document: CTIM-00446 Page 9 of 16 Date: 2016/03/11 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 10: Detailed Feature Description
Refer to PCI/104-Express & PCIe/104 Specifications Function PCIe/104 Bottom Connector Location Samtec Fine Pitch Stacking Connector Type Carrier ASP-129646-03 Connector Manufacturer: Samtec Pinout Refer to PCI/104-Express & PCIe/104 Specifications Document: CTIM-00446 Page 10 of 16 Date: 2016/03/11 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... - Page 11 UIM_VPP W_DISABLE# RESV PCIe RX+ +3.3V PCIe RX- +1.5V SMB_CLK PCIe TX- SMB_DATA PCIe TX+ USB D- USB D+ +3.3V +3.3V RESV +1.5V +3.3V Document: CTIM-00446 Page 11 of 16 Date: 2016/03/11 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
- Page 12 0475530001 PCI-104 Function PCI-104 Connector Location Type Samtec Fine Pitch Stacking Connector Carrier ASP-129637-03 Connector Manufacturer: Samtec Pinout Refer to PCI/104-Express & PCIe/104 Specifications Document: CTIM-00446 Page 12 of 16 Date: 2016/03/11 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
-
Page 13: Typical Installation
WWAN LED WLAN LED WPAN LED ADG077 LED Description +12V Power +5V Power +3.3V Power D4(A&B) WWAN LED D5(A&B) WLAN LED D6(A&B) WPAN LED Document: CTIM-00446 Page 13 of 16 Date: 2016/03/11 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 14: Current Consumption Details
Amps Watts Theoretical Absolute Maximum Total Draw of All Functionality on the 0.96A 4.8W Oversized Mini-PCIe Carrier Board (ADG075/098) Theoretical Absolute Maximum Total Draw of All Functionality on the 4.16A 20.8W Dual Mini-PCIe Carrier Board (ADG077/097) Please note, depending upon the select Mini-PCIe Modules, and the usage of said module, actual power consumption values will change. -
Page 15: Mechanical Details - Adg075/098
A complete 3D STEP Model file of Oversized Rugged Mini-PCIe Carrier can be downloaded here: http://www.connecttech.com/ftp/3d_models/ADG075_3D_MODEL.zip 2D Mechanical Dimensioned Drawing - PCB and Mounting Hole Dimension are in mm. Top View Document: CTIM-00446 Page 15 of 16 Date: 2016/03/11 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 16: Mechanical Details - Adg077/097
A complete 3D STEP Model file of Dual Rugged Mini-PCIe Carrier can be downloaded here: http://www.connecttech.com/ftp/3d_models/ADG077_3D_MODEL.zip 2D Mechanical Dimensioned Drawing - PCB and Mounting Hole Dimension are in mm. Top View Document: CTIM-00446 Page 16 of 16 Date: 2016/03/11 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291...
