Summary of Contents for Connect Tech MPG001

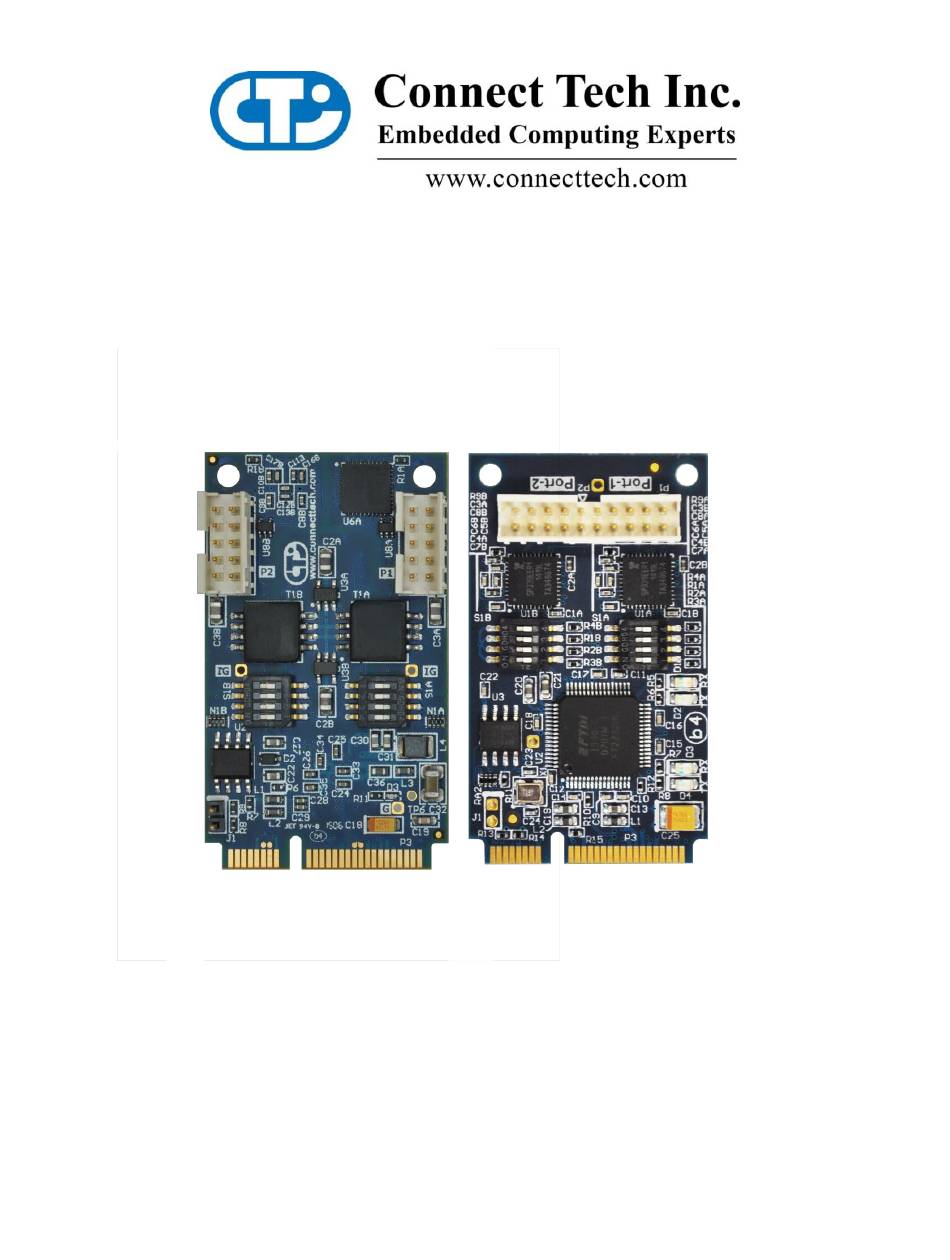

- Page 1 Mini PCI Express Card, Asynchronous Serial Users Guide Connect Tech Inc. Tel: 519-836-1291 42 Arrow Road Toll: 800-426-8979 (North America only) Guelph, Ontario Fax: 519-836-4878 N1K 1S6 Email: sales@connecttech.com www.connecttech.com support@connecttech.com CTIM-00442 Revision 0.05 2018-06-29...
-
Page 2: Table Of Contents
Mini PCI-Express Card Installation ......................15 Cable Attachment ..........................15 Software .............................. 16 USB Host Interface Products ........................16 PCI-Express Host Interface Products ......................16 Document: CTIM-00442 Page 2 of 16 Date: 2018-06-29 Revision: 0.05 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 3: Preface
Preface Customer Support Overview If you experience difficulties after reading the manual and/or using the product, contact the Connect Tech reseller from which you purchased the product. In most cases the reseller can help you with product installation and difficulties. -
Page 4: Limited Mini Pci Express Warranty
The Connect Tech Inc. 2-Year Warranty is defined as the serviceable life of the product. This is defined as the period during which all components are available. Should the product prove to be irreparable, Connect Tech Inc. -
Page 5: Esd Warning
ESD Warning Electronic components and circuits are sensitive to ElectroStatic Discharge (ESD). When handling any circuit board assemblies including Connect Tech COM Express carrier assemblies, it is recommended that ESD safety precautions be observed. ESD safe best practices include, but are not limited to: ... -
Page 6: Introduction
Maximum bit rates are indicated for the board hardware. Attainable and/or sustainable maximum bit rate will depend on other system hardware, software or application. Document: CTIM-00442 Page 6 of 16 Date: 2018-06-29 Revision: 0.05 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 7: Part Numbers / Ordering Information
Mini PCI-Express Isolated Serial card, includes 2 x RS-232/422/485 serial ports. Vertical connector. Connected via Mini PCIe PCIe UART. RoHS compliant. CBG121 Dual DB9 to Minitek 20 pin cable. For use with MPG001 and MPG002. CBG191 DB9 to 10-pin Header 2mm. For use with MPG003 and MPG004. Document: CTIM-00442... -
Page 8: Product Overview
Mini PCI Express Card Serial Users Guide www.connecttech.com Product Overview Block Diagrams USB 2-Port Non-Isolated Document: CTIM-00442 Page 8 of 16 Date: 2018-06-29 Revision: 0.05 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 9: Pci-Express 2-Port Isolated
Mini PCI Express Card Serial Users Guide www.connecttech.com PCI-Express 2-Port Isolated Document: CTIM-00442 Page 9 of 16 Date: 2018-06-29 Revision: 0.05 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 10: Interface Pin-Outs
Port-2 is P2. Although, these 2 connectors are joined to form on physical connector. Port Pin RS232 RS422 RS485 Pin [1] TXRX- TXRX+ TXRX- TXRX+ Notes: [1] DB-9 pin assignments when using cable CBG121 (CTIC-00380) Document: CTIM-00442 Page 10 of 16 Date: 2018-06-29 Revision: 0.05 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 11: Pci-Express 2-Port Isolated Model
Port-1 is connector on the board, Port-2 is P2. RS232 RS422 RS485 Pin [1] TXRX- TXRX+ Notes: [1] DB-9 pin assignments when using cable CBG191 (CTIC-00539) Document: CTIM-00442 Page 11 of 16 Date: 2018-06-29 Revision: 0.05 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 12: Mini Pcie Edge Connector
Signal Signal +3.3V REFCLK- MPG003, MPG004 Only REFCLK+ MPG003, MPG004 Only PEREST# MPG001, MPG002 Use this to Reset the USB/Serial Controller PER- (from this module to system) +3.3V MPG003, MPG004 Only PER+ (from this module to system) MPG003, MPG004 Only... -
Page 13: Setup And Operation
Slow Slew Rate works in any mode except loopback. When Slow Slew Rate is enabled, the baud rate is limited to about 250K bps in any mode. Slow Slew rate is used to limit EMI emissions. Document: CTIM-00442 Page 13 of 16 Date: 2018-06-29 Revision: 0.05 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 14: Rs485 (Or Half Duplex) Mode Operation
This mode requires that the RTS signal be enable (turned On) prior to data transmission, then disabled (turned Off) in order to allow data reception. This can be handled autonomously by the UART if appropriate Driver software is employed. Document: CTIM-00442 Page 14 of 16 Date: 2018-06-29 Revision: 0.05 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 15: Typical Installation
Express Cards are always 1mm thick. The Connect Tech Mini PCI-Express Card Serial products have components and protrusions on the back side of the card which require that they be installed in Mini PCI-Express card sockets which provide Dimension B 2.3mm... -
Page 16: Software
Driver is most commonly used. http://www.ftdichip.com/Products/ICs/FT2232H.htm PCI-Express Host Interface Products The products which use the PCI-Express Host interface use the Exar 17V352 Uart device. The Connect Tech BlueStorm/Express (Windows) Driver is available which will recognize and operate the Uart on this product. Document: CTIM-00442...
