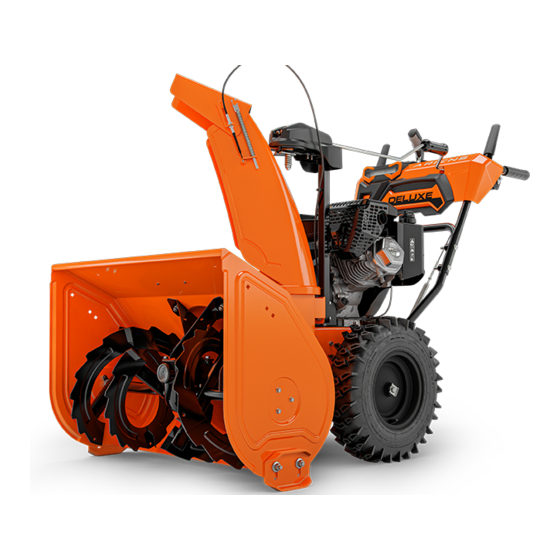

Ariens Deluxe 30 Platinum Quick Start Manual
  1. Manuals
  2. Brands
  3. Ariens Manuals
  4. Snow Blower
  5. Deluxe 30
  6. Quick start manual
Ariens Deluxe 30 Platinum Quick Start Manual

Ariens Deluxe 30 Platinum Quick Start Manual

Hide thumbs Also See for Deluxe 30 Platinum:

Advertisement

Table of Contents

See also: Service Manual , Owner's Manual
Deluxe 30 Platinum (921018 s/n 75000 & up)
•
Step 1: Assemble Handlebars
•
Step 2: Install Discharge Chute
•
Step 3: Install Chute Control Assembly
•
Step 4: Install Discharge Chute Rod
•
Step 5: Install Remote Deflector Control
•
Step 6: Check Function of Dual Handle Interlock
•
Step 7: Check Tire Pressure
•
Step 8: Adjust Skid Shoes
•
Step 9: Check Auger Gearcase Oil
•
Step 10: Check Engine Crankcase Oil
•
Step 11: Fill Engine Fuel Tank
•
Step 12: Start Engine
•
Step 13: Stop Engine
READ AND UNDERSTAND ALL INSTRUCTION, WARNING, AND DANGER LABELS.
IMPORTANT: READ OPERATOR'S MANUAL AND ENGINE MANUAL
THOROUGHLY AND FOLLOW THE IMPORTANT SAFE OPERATION PRACTICES
BEFORE OPERATING.
Quick Start Guide

Advertisement

Table of Contents
loading

Related Manuals for Ariens Deluxe 30 Platinum

Summary of Contents for Ariens Deluxe 30 Platinum

  • Page 1 Quick Start Guide Deluxe 30 Platinum (921018 s/n 75000 & up) • Step 1: Assemble Handlebars • Step 2: Install Discharge Chute • Step 3: Install Chute Control Assembly • Step 4: Install Discharge Chute Rod • Step 5: Install Remote Deflector Control •...
  • Page 2 Step One: Assemble Handlebars NOTE: The Ariens company has made changes to packaging that affects this serial number range. If the upper handlebars on your unit came already attached please disregard the following five slides. Not attached Attached...
  • Page 3 Step One: Assemble Handlebars NOTE: This slide applies to UNATTACHED handlebars ONLY (Unfold Lower Handlebar) IMPORTANT: Be sure to block wheels or secure unit so it does not move during assembly. Rotate lower handlebar out from unit so lower handlebar mounting holes align with mounting holes on the unit frame.
  • Page 4 Step One: Assemble Handlebars NOTE: This slide applies to UNATTACHED handlebars ONLY (Attach Upper Handlebar Assembly) Attach upper handlebar assembly to lower handlebar using two sets of the handlebar hardware. One set to attach each side of the handlebars. NOTE: DO NOT tighten hardware. Allow upper handlebar assembly to hang from the lower handlebars for the next step.
  • Page 5 Step One: Assemble Handlebars NOTE: This slide applies to UNATTACHED handlebars ONLY (Attach Control Cables) Hook Spring end of attachment control cable to the clutch arm. Hook spring end of the traction control cable to the cable eyelet on back of frame. NOTE: Make sure the cable remains in the groove of the pulley.
  • Page 6 Step One: Assemble Handlebars NOTE: This slide applies to UNATTACHED handlebars ONLY (Unfold Upper Handlebar) Assembly) Rotate handlebar into operating position. NOTE: Be careful not to damage cable spring hooks when rotating handlebar upward. Install the remaining handlebar hardware attaching the upper handlebar assembly to the lower handlebar.
  • Page 7 NOTE: This slide applies to Step One: Assemble Handlebars UNATTACHED handlebars ONLY (Connect Headlight Wire Harness) NOTE: The headlight wire harness comes attached to the upper handlebar assembly. Route the wire harness along the interior of the right side handlebar. Connect to the engine electrical plug.
  • Page 8 Step One: NOTE: This slide applies to ATTACHED handlebars ONLY Assemble Handlebar Remove the lower and loosen the upper hardware on the handlebar assembly. Loosen the hardware on the shift rod. Put the speed selector lever in the sixth forward position. Rotate the handlebar into operating position.

  • Page 9: Install Discharge Chute

    Step Two: Install Discharge Chute Grease underside of discharge chute ring (if not already greased). Remove mounting hardware from auger housing. Install discharge chute over opening in the auger housing. Finger tighten the mounting hardware removed above. NOTE: Leave discharge chute pedestal loose to help install the chute crank.
  • Page 10 Step Three: Install Chute Control Assembly Remove the gear cover from top of chute pedestal. Release the lock teeth on the gear assembly with your finger and rotate the discharge chute so it points straight ahead. NOTE: Make sure alignment markers are lined up when discharge chute is pointing straight ahead.
  • Page 11 Step Three: Install Chute Control Assembly Cont. Remove the rubber grommet from the control panel. Make sure the chute control cable is routed between the lower handlebar and the bottom of the control panel, insert control assembly into slot in control panel from below and install assembly into nylon bushing in control panel.
  • Page 12 Step Four: Install Discharge Chute Rod NOTE: To ensure the discharge chute follows its full range of travel, make sure the control lever is centered in the slot and pointing straight up before installing the chute rod. Insert chute rod end without ears into control lever and slide into control panel until opposite end of rod clears the gear assembly.
  • Page 13 Step Four: Install Discharge Chute Rod Cont. Hook the chute control cable onto the chute rod. IMPORTANT: The chute control cable hook will prevent the cable from contacting the engine or muffler guard. Make sure the cable stays connected while unit is in operation. Check to make sure the chute control cable ends are properly seated in control assembly and control arm.
  • Page 14 Step Five: Install Remote Deflector Control Cable Connect the barrel cable end to the chute deflector cable anchor before clipping the cable to the discharge chute cable bracket. Route deflector remote cable along the left side of the chute pedestal. Insert the barrel on the cable end into the bracket on left side of chute deflector.
  • Page 15 Step Six: Check Function of Dual Handle Interlock Without the engine running, press down (engage) both clutch levers. Release attachment clutch lever. Attachment clutch should remain engaged until traction clutch lever is released, then both clutches must disengage. If they do not, contact your dealer for repairs.

  • Page 16: Check Tire Pressure

    Step Seven: Check Tire Pressure Check tire pressure and adjust to the pressure listed on tire sidewall.

  • Page 17: Adjust Skid Shoes

    Step Six: Adjust Skid Shoes IMPORTANT: Skid shoes should be adjusted as conditions require. Allow 1/8 in. (3mm) between scraper blade and hard smooth surfaces. Allow 7/8 in (22 mm) between scraper blade and uneven or gravel surfaces. (See Skid Shoes in Owners Manual).
  • Page 18 Step Eight: Check Auger Gearcase Oil Check oil level in auger gearcase (see Check Auger Gearcase in Owners Manual).
  • Page 19 Step Nine: Check Engine Crankcase Oil IMPORTANT: The engine is shipped with oil in crankcase. Refer to Engine Manual for detailed instructions.
  • Page 20 Step Ten: Fill Engine Fuel Tank Fill fuel tank. DO NOT OVERFILL! See FILLING FUEL TANK in Owners Manual. Remove the plug from the fuel tank and install the fuel cap located in the attached bag.
  • Page 21 Step Eleven: Starting the Engine...
  • Page 22 Starting Engine / Step A: Throttle Move the throttle control lever to the fast position. Operate the engine with the throttle control lever in the fast position.

  • Page 23: Starting Engine / Step B: Fuel Valve

    Starting Engine / Step B: Fuel Valve Turn the fuel shut- off valve to the ON position.

  • Page 24: Starting Engine / Step C: Key

    Starting Engine / Step C: Insert the key and turn to the ON/START position.

  • Page 25: Starting Engine / Step D: Choke

    Starting Engine / Step D: Choke Turn the choke control knob to the choke position. NOTE: Choke is usually unnecessary when restarting a warm engine.

  • Page 26: Starting Engine / Step E: Prime

    Starting Engine / Step E: Prime Push the primer two times. Be sure to cover vent hole on primer bulb. NOTE: Priming is usually unnecessary when restarting a warm engine.

  • Page 27: Starting Engine / Step F: (Manual Start)

    Starting Engine / Step F: (Manual Start) Firmly hold the starter cord handle. Pull the starter cord handle slowly until resistance is felt, then pull rapidly. NOTE: If the engine does not start after repeated attempts, go BRIGGSandSTRATTON.COM or call 1-800-233-3723.

  • Page 28: Starting Engine / Step F: (Electric Start)

    Starting Engine / Step F: (Electric Start) First connect the extension cord to the power cord receptacle and then into a wall receptacle. If an additional extension cord is required, make sure it is a 3-wire grounded extension cord.

  • Page 29: Starting Engine / Step G: (Electric Start)

    Starting Engine / Step G: (Electric Start) Depress the push button. After you start the engine, first disconnect the extension cord from the wall receptacle and then from the power cord receptacle.

  • Page 30: Starting Engine / Step H: Warm Up

    Starting Engine / Step H: Warm up Allow the engine to warm up for several minutes. Then, slowly move the choke control knob to the run position.
  • Page 31 Step Twelve: Stopping the Engine Turn the key to the off position or move throttle control lever to slow and then to the stop position (completely left). Remove the key. Keep away from reach of children. After engine stops, turn the fuel shut-off valve to the closed (vertical) position.

  • Page 32: Additional Resources

    Additional Resources • Refer to Owners Manual and Engine Manual • Contact Ariens Company www.ariens.com Phone: 920-756-4688 E-mail: info@ariens.com • For issues concerning engine, please contact Briggs and Stratton www.BRIGGSandSTRATTON.com Phone: 800-233-3723 2012 The Ariens Company. All rights reserved.
