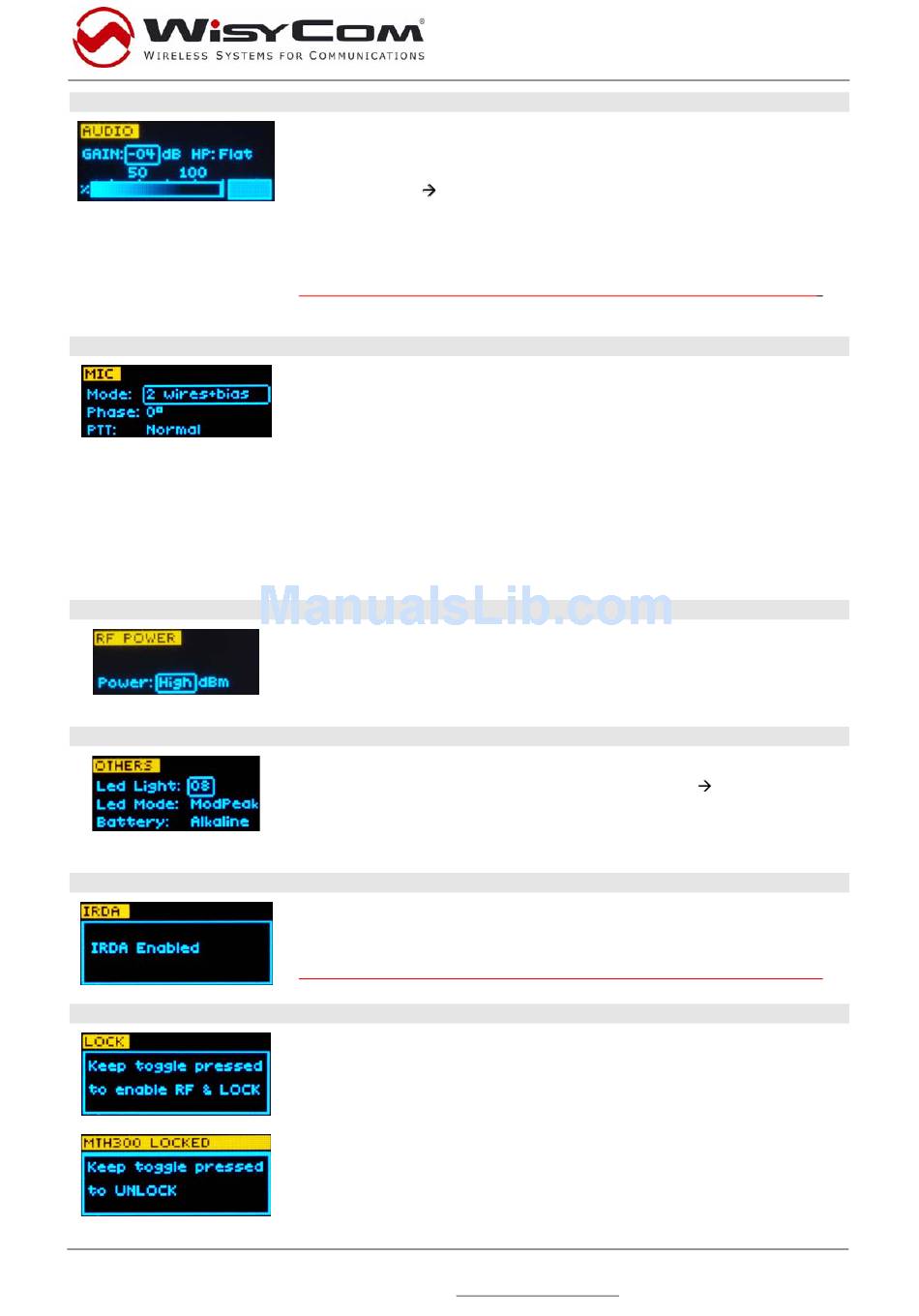

WisyCom MTP30 Quick User Manual page 5

1.4.3.4 <audio> menu
13B
1.4.3.5 <mic> menu
14B
1.4.3.6 <rf power> menu
15B
1.4.3.7 <others> menu
16B
1.4.3.8 <irda> menu
17B
1.4.3.9 <lock> menu
18B
WISYCOM s.r.l. - Via Spin, 156 - I-36060 Romano d'Ezzelino (VI) - Italy - MTP30-eng-b04.doc
Tel. (Ph.). +39 0424 382605 - Fax +39 0424 382733 - http:// www.wisycom.com - e-mail: sales@wisycom.com
This menu can be entered by scrolling selector or using quick gain
setup buttons (<gain>).
To help proper audio gain setting, an audio bar is supplied (with
peak hold bar) TRY TO SETUP TO HAVE A MAX PEAK HOLD
BAR CLOSE TO 100.
High pass audio filter can be setup with different preset values.
Use the selector to change values (<+/->) and <click> to
confirm.
NOTE: while in this menu display is not automatically turned
U
This menu can be entered by scrolling selector.
Following Mic mode can be setup:
- 2 wired (PTT is possible)
- 2 wires + bias (PTT is possible)
- 3 wires + bias (no PTT)
Additional field to setup
- Phase: is audio phase can be 0/180 deg.
- PTT operation mode:Normal (pushing make a
remote switch)/Muting (pushing mute the audio)
Use the selector to change values (<+/->) and <click> to
confirm.
This menu can be entered by scrolling selector.
RF power can be setup to High (50 mW ERP) or Low (10 mW ERP).
Use the selector to change values (<+/->) and <click> to
confirm.
This menu can be entered by scrolling selector.
Power switch green LED brightness can be setup
Modulation peak LED on power switch (become RED when audio
get close to saturation) can be enabled/disabled). Battery type can
be setup in Alkaline or NiMH.
This menu can be entered by scrolling selector.
While is this menu MIC can be connected to IRDA for setup or
firmware upgrades.
NOTE: while in this menu display is not automatically turned off.
U
This menu can be entered by scrolling selector.
Long pressing (2 sec.) selector button (click) it locks MTP30 in
transmission mode.
To unlock, long pressing (2 sec.) selector button again.
off.
U
LED light.
U
