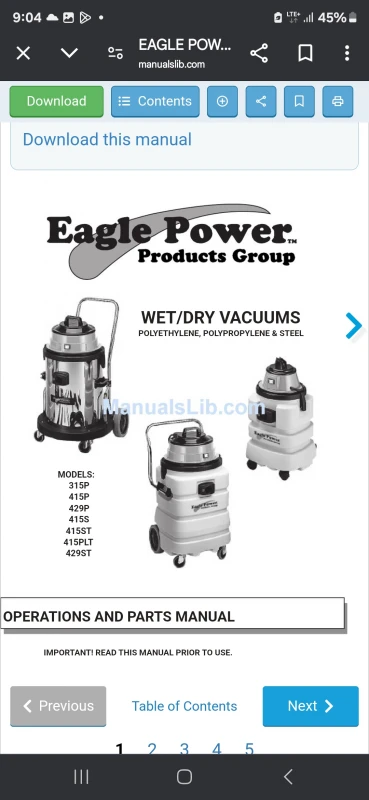

- Page 1 WET/DRY VACUUMS POLYETHYLENE, POLYPROPYLENE & STEEL MODELS: 315P 415P 429P 415S 415ST 415PLT 429ST OPERATIONS AND PARTS MANUAL IMPORTANT! READ THIS MANUAL PRIOR TO USE.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page No. Important Safety Instructions ..... .1-3 Vacuum and Accessories ......4 Operation . -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. This machine is for commercial use. WARNING DANGER: Failure to read and observe all DANGER statements could result in severe bodily injury or death. -
Page 4: Save These Instructions
DANGER: Electrocution could occur if maintenance and repairs are performed on a unit that is not properly disconnected from the power source. Disconnect the power supply before attempting any maintenance or service. WARNING: Operating a machine without observing all labels, decals, etc., could result in injury or damage. - Page 5 120 Volt Machine Instructions For Connection To The Power Supply And The Electrical Ground This machine must be connected to the electrical ground to protect the operator from electric shock. The machine has an approved power cord with three conductors and a plug with three terminals. Connect the plug to a receptacle that has three holes and is connected to the electrical ground.
-
Page 6: Vacuum And Accessories
VACUUM AND ACCESSORIES Motor Block ATTENTION: The Polyester Filter must be cleaned after each use to maintain efficient suction. On/Off Switch Float: Keeps liquid out of Motor Block Polyester Filter: Remove for use with liquids IMPORTANT INSTRUCTIONS Hooks: Secure Motor Block to Tank Suction Inlet •... -
Page 7: Operation
OPERATION This machine is a commercial vacuum designed for wet and dry pick-up. The dual vac motors can be run together or DUAL SWITCHES separately as the job requires. Dry soil can be vacuumed directly into the tank. To empty the tank of dry soil, remove the top and dump into trash Dual Vacuum receptacle. -
Page 8: Periodic Maintenance
PERIODIC MAINTENANCE (Every six to twelve months): Check filter for wear, replace dirt saturated filters that do not respond to normal cleaning. Inspect gasket seals and replace those which have begun to leak. Replace both carbon brushes when either is Examine carbon motor brushes and commutator. - Page 9 SERVICING THE VAC MOTOR CARBON BRUSH REPLACEMENT Disconnect power cord from power source. To access the vac motor, remove the screws that attach the main cover to the head assembly and set the cover to one side. Remove the motor cover by removing two screws.
-
Page 10: Vacuum Parts Diagram
315 VACUUM MOTOR ASSEMBLY Part Num. Description Qty. S80326 Switch, ON/OFF S81006 Screw, 5 x 20 S81006 Screw, 5 x 20 S80140 Terminal Block S81006 Screw, 5 x 20 S82992 Handle, Lift S81152 S80138 Strain Relief, Black S81122 Cord S81006 Screw, 5 x 20 S80139 Clamp, Cord... - Page 11 415 VACUUM MOTOR ASSEMBLY Part Num. Description Qty. S81006 Screw, 5 x 20 S81150 Cover, Dome S82992 Handle S81006 Screw, 5 x 20 S80139 Clamp, Cord S80138 Strain Relief S81122 Power Cord, Single Motor T82102005 Power Cord, Dual Motor S81006 Screw, 5 x 20 S81005 Screw, 5 x 14...
- Page 12 415P TANK ASSEMBLY Part Num. Description Qty. Part Num. Description Qty. S82615 Complete Tank S80904 Wheel, Ø200 S82558 Handle S82557 Cap, End S82637 Tank S83835 Cap, Axle S81026 Screw, 5x30 S82607 Spacer, Wheel S82584 Retainer, Tank S81006 Screw, 5 x 20 S82846 Gasket S82555...
- Page 13 415ST TANK ASSEMBLY Part Num. Description Qty. Part Num. Description Qty. S82993 Handle S82608 Spring S81847 Clamp, Tank S82993 Handle S81302 Rivet, 5 x 19 S82974 Washer S83629 Screw, 5 x 25 S83629 Screw, 5 x 25 S83883 Washer S83156 Screw, 5 x 25 S83253 Tank –...
- Page 14 415S TANK ASSEMBLY Part Num. Description Qty. S82993 Handle S81847 Clamp, Tank S81302 Rivet, 5 x 19 S83629 Screw, 5 x 25 S83883 Washer S80476 Tank S81026 Screw, 5 x 30 S82586 Adapter, Tank S82846 Gasket S82593 Deflector S82583 Adapter, Hose S82594 Button S82608...
- Page 15 415PLT TANK ASSEMBLY Part Num. Description Qty. Part Num. Description Qty. S81847 Clamp, Tank S83883 Washer, Plastic S81300 Rivet, 5 x 24.5 S81026 Screw, 5 x 30 S83773 Tank S81026 Screw, 5 x 30 S81026 Screw, 5 x 30 S83883 Washer, Plastic S82586 Adapter, Tank...
-
Page 16: Accessories
S70042 FRONT-MOUNTED SQUEEGEE Part Num. Description Qty. Part Num. Description Qty. S82164 Handwheel, M8 x 45 S82177 Body, Wet Fix Tool S82187 Small Block, Fixed S82198 Spacer S82163 Handwheel, M6 x 25 S82196 Front Squeegee S83115 Plate, Adjustment S82197 Bracket, Squeegee S82189 Driver Pivot S81856... -
Page 17: Warranty Policy
Warranty Policy Limited Warranty Eagle Power Products (EPP) warrants new cleaning equipment against defects in material and workmanship under normal use and service to the original purchaser as detailed below. 10 Years Subject to the conditions stated below, EPP warrants polyethylene tanks and housings to be free from defects in materials and workmanship for a period of ten years.
