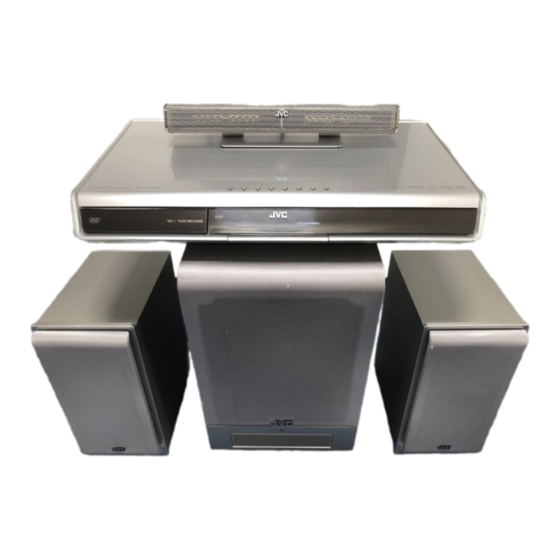

NETWORK MEDIA SYSTEM
DD-8
Consists of CA-DD8, SP-PWDD8,
SP-DD8F and SP-DD8S
DD-3
Consists of CA-DD3, SP-PWDD3,
SP-DD3F and SP-DD8S
DIGITAL MEDIA SYSTEM
DD-1
Consists of CA-DD1, SP-PWDD1,
SP-DD1F and SP-DD1S
(Only for DD-8 and DD-3)
INSTRUCTIONS
LVT1546-015A
[UJ]

Advertisement

   Also See for JVC Sophisti DD-3

   Related Manuals for JVC Sophisti DD-3

   Summary of Contents for JVC Sophisti DD-3

  • Page 1

    NETWORK MEDIA SYSTEM DD-8 Consists of CA-DD8, SP-PWDD8, SP-DD8F and SP-DD8S DD-3 Consists of CA-DD3, SP-PWDD3, SP-DD3F and SP-DD8S DIGITAL MEDIA SYSTEM DD-1 Consists of CA-DD1, SP-PWDD1, SP-DD1F and SP-DD1S (Only for DD-8 and DD-3) INSTRUCTIONS LVT1546-015A [UJ]...

  • Page 2

    CAUTION To reduce the risk of electrical shocks, fire, etc.: 1. Do not remove screws, covers or cabinet. 2. Do not expose this appliance to rain or moisture. CAUTION • Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.) •...

  • Page 3

    CAUTION — F button! (CA-DD8/CA-DD3/CA-DD1) Disconnect the mains plug to shut the power off completely (the STANDBY lamp goes off). When installing the apparatus, ensure that the plug is easily accessible. The F button in any position does not disconnect the mains line. •...

  • Page 4: Table Of Contents

    Table of contents Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit. Introduction Part description ...3 Using the remote control ...4 Preparation Preparation...5...

  • Page 5

    Playing back sources from other devices Playing back sources from other devices...42 Selecting other devices as the source ... 42 Selecting the signal gain ... 42 QP LINK... 43 Operating other devices using the remote control Operating other devices using the remote control...44 Operating a TV using the remote control ...

  • Page 6: Part Description

    Part description The numbers refer to the pages in which the parts are explained. Front view STANDBY lamp *1 The [PHONES] terminal is for connecting a pair of headphones equipped with a stereo plug (not supplied). When the headphones are connected, the speakers do not produce any sound. (“HEADPHONE” appears in the display window.) During playback, when you connect or disconnect headphones, sound from the [LINE OUT] and [LINE- DIGITAL OUT] terminals may be intermittent.

  • Page 7: Using The Remote Control

    Using the remote control The numbers refer to the pages in which the parts are explained. There are some differences between DD-8/DD-3 and DD-1 in the locations of the remote control buttons as shown below. DD-8/DD-3 Refer to the separate Refer to page 19.

  • Page 8: Preparation

    Preparation Connecting the antennas AM loop antenna (supplied) Setting up the AM loop antenna If insulation covers the tips of the antenna cable, twist and pull off the insulation. Connecting the AM loop antenna Main unit (rear view) Turn the AM loop antenna to find the best position for radio reception.

  • Page 9: Connecting The Speakers

    Connecting the speakers Assembling the speaker stands (DD-8) The speakers for DD-8 must be assembled to the speaker stands before the speakers can be connected to the subwoofer. Follow the diagrams below. Left and right speakers ■ CAUTION • The left and right speakers for DD-8 are consid- erably heavy.

  • Page 10

    Preparation (continued) Connecting the speakers to the subwoofer (DD-8) Before connecting the speaker cables, twist and pull off the insula- tion at the end of each speaker cable. Black lines Right speaker Left speaker (SP-DD8F) (SP-DD8F) The speakers are shown assembled to the speaker stands on page 6.

  • Page 11

    Assembling the speaker stands (DD-3) The speakers for DD-3 must be assembled to the speaker stands before the speakers can be connected to the subwoofer. Follow the diagrams below. Left and right speakers Black line Use the supplied M4 x 16-mm screws (3) to fasten each speaker to its speaker stand.

  • Page 12

    Preparation (continued) Connecting the speakers to the subwoofer (DD-3) Before connecting the speaker cables, twist and pull off the insula- tion at the end of each speaker cable. Black lines Right speaker (SP-DD3F) The speakers are shown assembled to the speaker stands on page 8.

  • Page 13

    Connecting the speakers to the subwoofer (DD-1) Gray Blue Rear view Before connecting the speaker cables, twist and pull off the insula- tion at the end of each speaker cable. Subwoofer (SP-PWDD1) Black lines Black Black Rear view Rear view Center surround speaker (SP-DD1S) Right speaker Left speaker...

  • Page 14: Speaker Layout

    Preparation (continued) Connecting the subwoofer to the main unit Only for DD-8 and DD-3 Peel off the protective sheets Subwoofer from both sides of the sub- woofer. Rear view Rear view System cable (supplied) Align the 5 marks on the terminals and the sys- tem cable.

  • Page 15: Connecting A Tv

    Connecting a TV Connecting a TV with the [VIDEO] terminal To a video terminal Composite video cable (supplied) Connecting a TV with the [S-VIDEO] terminal To an S-video terminal S-video cable (not supplied) Connecting a TV with the [COMPONENT VIDEO OUT] terminals Main unit (rear view) Component video cable (not supplied)

  • Page 16: Selecting The Video Signal Type

    Preparation (continued) NOTE • DD-8 and DD-3 support up to HDMI version 1.0. The HDMI video signal type can be checked with the “HDMI” indicator in the display window. (Refer to “Selecting the video signal type” shown on the right.) •...

  • Page 17

    [ENTER], but this is not a malfunction of the sys- tem. • To check the compatibility of your TV, contact your local JVC customer service center. • All JVC-manufactured progressive TVs and high-definition TVs are fully compatible with this system.

  • Page 18: Connecting A Portable Digital Audio Player

    Preparation (continued) Connecting a portable digital audio player Listening to analog sound from a portable digital audio player Main unit (front view) Input To an audio output terminal Portable digital audio player or Output other audio device Outputting analog sound to a portable digital audio player Main unit (front view) Output...

  • Page 19: Connecting Other Digital Audio Devices

    Connecting other digital audio devices AV amplifier with a Input built-in decoder To an optical digital input terminal Optical digital cable (not supplied) Main unit (rear view) Input Optical digital cable (not supplied) To an optical digital output terminal MD player or satel- lite receiver Connecting other analog audio devices...

  • Page 20: Basic Operations

    Basic operations NETWORK 3 (For DD-8/DD-3) DIMMER (For DD-1) ■ CAUTION • Slide the remote control mode selector to [AUDIO]. Using the number buttons Examples: 5: [5] 15: [ 10] → [1] → [5] 150: [ 10] → [ 10] → [1] → [5] → [0] Turning on the main unit Press [F AUDIO].

  • Page 21: Sharpening The Voice Sound

    Sharpening the voice sound This function allows you to easily understand dia- log recorded on the disc/file even with the volume down low. Press [CLEAR VOICE]. • Each time you press [CLEAR VOICE], the clear voice function turns on and off. This indicator lights up when the clear voice function is activated.

  • Page 22: Changing The Brightness Of The Display Window

    Basic operations (continued) Changing the brightness of the display window Press [DIMMER]. • Each time you press [DIMMER], the display changes in the display window as follows. - “DIMMER 1” The display window becomes darker than the normal display brightness. - “DIMMER 2”...

  • Page 23: Auto Standby Function

    Auto standby function If no sound is produced for 3 minutes, the main unit automatically turns off. This function is available when a disc/file is selected as the source. You cannot use this function when a radio broad- cast or a device connected to the [LINE IN 1], [LINE IN 2] or [LINE-DIGITAL IN] terminals is selected as the source.

  • Page 24: Listening To Radio Broadcasts

    Listening to radio broadcasts * For the number button usage, refer to “Using the number buttons” on page 17. ■ CAUTION • Slide the remote control mode selector to [AUDIO]. Setting the AM tuner spacing AM stations are spaced 9 kHz apart in some coun- tries and 10 kHz in other countries.

  • Page 25: Tuning In To A Preset Radio Station

    Press [ TUNING] or [TUNING repeatedly to select a radio sta- tion. • When the main unit has receive an FM ste- reo broadcast, the “ST” (stereo) indicator lights up in the display window. • You can also select a radio station using the automatic tuning.

  • Page 26: Basic Operations Of Disc/file Playback

    Basic operations of disc/file playback * For the number button usage, refer to “Using the number buttons” on page 17. ■ CAUTION • Slide the remote control mode selector to [AUDIO]. Playing back a disc This part explains playing back the types of discs shown above.

  • Page 27: Playing Back A File

    Playing back a file This part explains playing back 1) files recorded on the loaded disc, and 2) files recorded on a USB mass storage class device connected to the main unit. The operation is explained with a display of MP3 files as an example.

  • Page 28: Display Window On The Main Unit For Disc/file Types

    Basic operations of disc/file playback (continued) NOTE • Depending on the file type, the menu screen appears before you press 7. Press 5 , /, 2 or 3 to select a group and track. NOTE • You can also use [GROUP/TITLE SKIP select a group, and the number buttons, 4 or ¢...

  • Page 29

    ■When a disc is played back Track number Elapsed playback time ■When a disc is stopped Disc type Total number of tracks MP3/WMA/WAV/ASF/DivX/MPEG1/ MPEG2 file ■When a file is played back Group Track number number ■When a file is stopped Group Track File type...

  • Page 30

    Basic operations of disc/file playback (continued) Guide icons on the TV screen (on-screen guide) : Play : Pause : Fast reverse/fast forward search : Slow motion playback (reverse/ forward directions) : Containing multi-view angles (Refer to page 31.) : Containing multi-audio languages (Refer to page 31.) : Containing multi-subtitle languages (Refer to page 31.)

  • Page 31: Stopping Playback

    Stopping playback ■When a disc/file is played back Press Resuming playback (only for the loaded disc) When playback is stopped in the middle, playback can be started from the stopped position. Temporarily stopping playback ■When a disc/file is played back Follow any of the operations below.

  • Page 32: Fast Reverse/fast Forward Search

    Basic operations of disc/file playback (continued) Fast reverse/fast forward search There are 2 methods. ■When a disc/file is played back • Press 1 or ¡. - Each time you press ¡, the speed increases. To restore the normal speed, press [DVD/CD 3] or [USB 3].

  • Page 33: Selecting A Chapter/track Using The Number Buttons

    Selecting a chapter/track using the number buttons (PBC off) ■When a disc/file is played back Press the number buttons to select the chapter number or track number. Skipping at approximately 5 minute intervals You can skip within a file at approximately 5 minute intervals.

  • Page 34: Convenient Functions Of Disc/file Playback

    Convenient functions of disc/file playback * For the number button usage, refer to “Using the number buttons” on page 17. ■ CAUTION • Slide the remote control mode selector to [AUDIO]. Selecting the audio language, subtitle language and view angle ■When a disc/file is played back Remote control Press the desired button shown below.

  • Page 35: Playing Back A Disc/file In The Desired Order (program Playback)

    Playing back a disc/file in the desired order (Program playback) (only for the loaded disc) You can program a maximum of 99 tracks. The same track can be programmed more than once. ■When a disc/file is stopped Press [PLAY MODE] repeatedly to display “PROGRAM”...

  • Page 36: Playing Back A Disc/file In A Random Order (random Playback)

    Convenient functions of disc/file playback (continued) Playing back a disc/file in a random order (Random playback) (only for the loaded disc) ■When a disc/file is stopped Press [PLAY MODE] repeatedly to display “RANDOM” in the display window. • Selecting an item other than “RANDOM” cancels random playback.

  • Page 37: Playing Back A Disc/file Repeatedly (repeat Playback)

    Playing back a disc/file repeatedly (Repeat playback) (PBC off) ■When a disc/file is played back Press [REPEAT]. • Each time you press [REPEAT], the repeat mode changes. Display in Indica- Display on tor in the display display TV screen window window REPEAT TITLE...

  • Page 38: Adjusting The Picture Quality (vfp)

    Convenient functions of disc/file playback (continued) Adjusting the picture quality (VFP) ■When a disc is played back or paused Press [VFP]. • The current settings are displayed. TV screen (example) Selected VFP mode Press 2 or 3 to select VFP mode. •...

  • Page 39: Using The Status Bar And The Menu Bar

    Using the status bar and the menu bar ■When a disc/file is played back Press [ON SCREEN] twice. TV screen for a DVD VIDEO (example) Status bar Menu bar Press 2 or 3 to select an item you want to operate, and then press [ENTER].

  • Page 40: Playing Back A Specified Part Repeatedly (a-b Repeat Playback)

    Using the status bar and the menu bar (continued) Playing back a specified part repeatedly (A-B repeat playback) (PBC off) You can play back the desired part repeatedly by specifying a start point (A) and an end point (B). ■When a disc is played back Press [ON SCREEN] twice.

  • Page 41: Changing The Initial Settings With The Preference Screen

    Changing the initial settings with the preference screen You can change the initial settings of the main unit with the preference screen according to the envi- ronment where the main unit is used. ■ CAUTION • Slide the remote control mode selector to [AUDIO].

  • Page 42: Picture

    Changing the initial settings with the preference screen (continued) PICTURE Items Contents ( : initial setting) MONITOR Select the display method suitable for TYPE your TV. 4 : 3 PS (Pan Scan) : For a TV with conventional 4:3 aspect ratio.

  • Page 43: Audio

    AUDIO Items Contents ( : initial setting) DIGITAL Select the output signal type suitable to AUDIO the device connected to the [LINE-DIGI- OUTPUT TAL OUT] terminal. Refer to “List of rela- tionships of DIGITAL AUDIO OUTPUT preference items and output signal” on page 41.

  • Page 44: Language Codes

    Changing the initial settings with the preference screen (continued) List of relationships of DIGITAL AUDIO OUTPUT preference items and output signal Playback disc/file 48 kHz, 16/20/24 bits linear PCM DVD VIDEO 96 kHz linear PCM DVD VIDEO DTS DVD VIDEO DOLBY DIGITAL DVD VIDEO CD/VCD/SVCD DTS CD...

  • Page 45: Playing Back Sources From Other Devices

    Playing back sources from other devices Selecting other devices as the source Press [LINE]. • Each time you press [LINE], the display changes in the display window as follows. - “LINE 1” for selecting the device con- nected to the [LINE IN 1] terminal - “LINE 2”...

  • Page 46: Qp Link

    Playing back sources from other devices (continued) QP LINK When you start analog playback of a portable digi- tal audio player connected to the [LINE IN 1] termi- nal while the main unit is off or another source is selected, the main unit automatically turns on and the source changes to the connected portable digi- tal audio player.

  • Page 47: Operating Other Devices Using The Remote Control

    Operating other devices using the remote control You can operate your TV, video cassette recorder (VCR) and digital broadcast satellite (DBS) using the remote control of this system. Operating a TV using the remote control Setting the manufacturer code Slide the remote control mode selector to [TV].

  • Page 48: Operating A Vcr/dbs Using The Remote Control

    Operating other devices using the remote control (continued) Using the remote control for the TV operation Operate the remote control by pointing it at the TV. Remote Usage control button Turns on/off the TV. Changes between the TV and [TV/VIDEO] video input.

  • Page 49

    Manufacturer codes for DBSs Examples: For an Echostar DBS: Press [2], then [1]. For a Sony DBS: Press [2], then [0]. When the manufacturer of your DBS has 2 or more codes, select the manufacturer codes in turn and find the one that operates the DBS and the remote control properly.

  • Page 50: Notes On Operation

    Notes on operation Suitable locations for the main unit To minimize the need for servicing and maintain the high quality of this system, do not place the main unit in the following locations: • In a position subject to high humidity or consid- erable dust •...

  • Page 51: Notes On Handling

    Notes on handling Important cautions Installation of the system • Select a place which is level, dry and neither too hot nor too cold; between 5°C and 35°C. • Leave sufficient distance between the system and the TV. • Do not use the system in a place subject to vibration.

  • Page 52: Notes On Discs/files

    Notes on discs/files Playable disc/file types Playable discs *1, *2 Playable files recorded on a disc Playable files recorded on a USB mass storage class device Playable files stored on a computer (Only for DD-8 and DD-3) • Even though listed above, some types may be unplayable.

  • Page 53: Unplayable Discs

    • Damaged discs and discs in an extraordinary shape (other than a disc of 12 cm or 8 cm in diameter) cannot be played back. • JVC does not guarantee the operation and sound quality of discs not authorized by CD-DA, which is a CD specification.

  • Page 54

    Notes on files recorded on a connected USB mass storage class device • JVC bears no responsibility for any loss of data on the USB mass storage class device while using this system. • This system is compatible with USB 2.0 Full- Speed.

  • Page 55: Data Hierarchy

    Data hierarchy DVD VIDEO A DVD VIDEO consists of “titles” and each title may be divided into “chapters”. Title 1 Chapter 1 Chapter 2 Chapter 3 Chapter 1 Chapter 2 VCD/SVCD/CD A VCD/SVCD/CD consists of “tracks”. In general, each track has its own track number. (On some discs, each track may also be further divided by indexes.) Track 1...

  • Page 56: Troubleshooting

    Troubleshooting Problem Possible cause Improper connection. No sound/video is produced. Headphones are connected. A disc/file recorded in a format incompatible with the main unit/ TV is played back. The connected TV is not com- No sound/video is pro- patible with HDCP. duced via the [HDMI] The main unit fails to recognize terminal.

  • Page 57: Specifications

    Specifications Main unit (CA-DD8/CA-DD3/ CA-DD1) Tuner FM frequency: 87.50 MHz - 108.00 MHz AM frequency: 531 kHz - 1 710 kHz (9 kHz spacing) 530 kHz - 1 710 kHz (10 kHz spacing) Terminal (front of the main unit) • Audio output headphone terminal x 1 Impedance: 16 Ω...

  • Page 58: Subwoofer For Dd-1 (sp-pwdd1)

    Specifications (continued) Subwoofer for DD-1 (SP-PWDD1) Type: Bass reflex type Amplifier: 120 W at 4 Ω (110 Hz, • Subwoofer: THD 10%) • Left/right speaker: 25 W x 2 at 3 Ω (1 kHz, THD 10%) • Center surround speaker: 25 W x 2 at 3 Ω...

  • Page 59: Center Surround Speaker For Dd-8/dd-3 (sp-dd8s)

    Center surround speaker for DD-8/DD-3 (SP-DD8S) Type: 1-way acoustic suspension type Magnetically shielded type Speaker: 9.5 cm x 1 cm direct-drive Power handling capacity:30 W 3 Ω Impedance: Frequency range: 120 Hz - 40 kHz Sound pressure level: 79 dB/W •...

  • Page 60

    Mains (AC) Line Instruction Subwoofer (rear view) CAUTION for mains (AC) line BEFORE PLUGGING IN, do check that your mains (AC) line voltage corresponds with the position of the voltage selector switch provided on the outside of this equipment and, if different, reset the voltage selector switch, to prevent from a damage or risk of fire/electric shock.
