Steering - Yamaha YZ250F Owner's Service Manual

EC560000

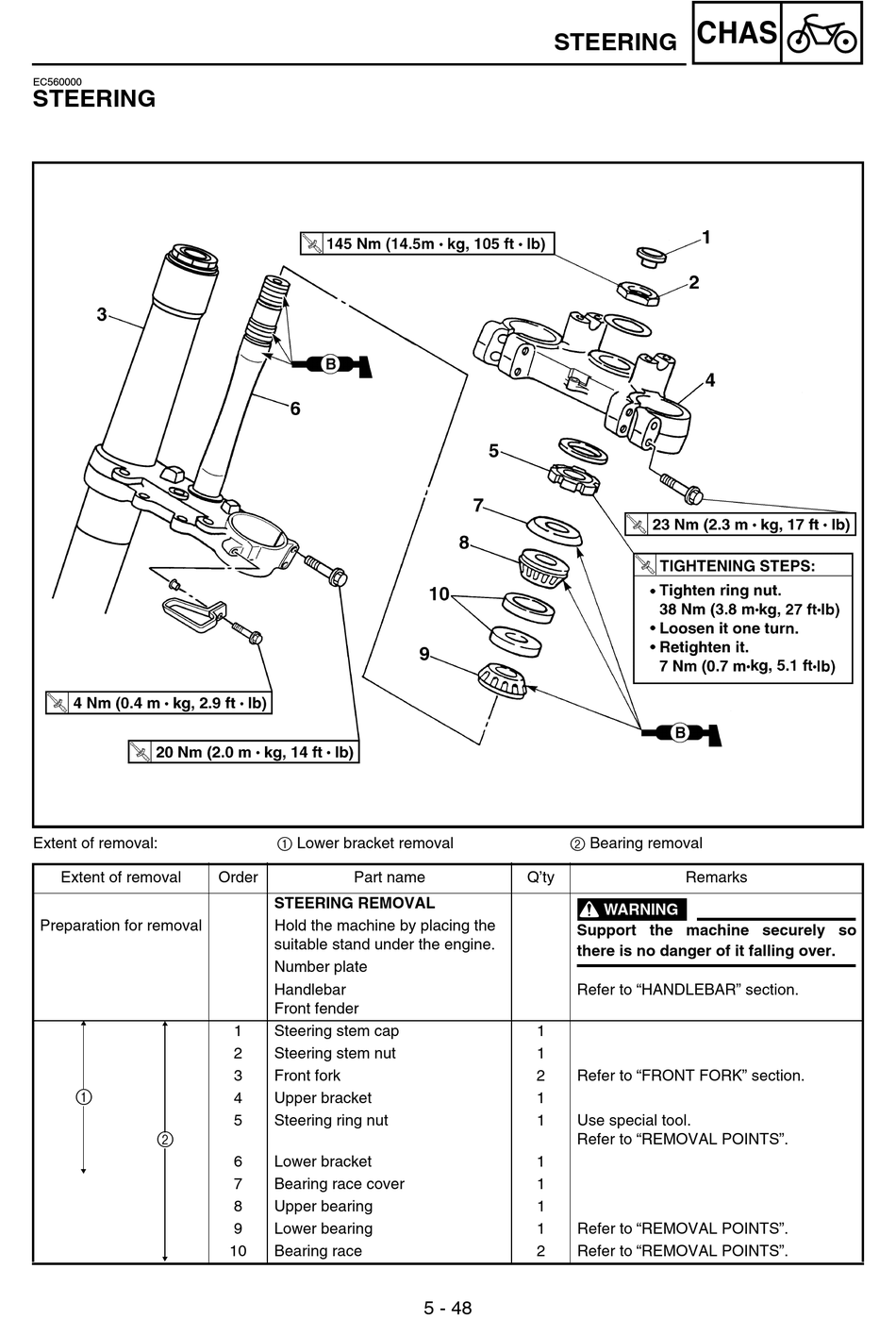

STEERING

Extent of removal:
Extent of removal
Preparation for removal
1
2
1 Lower bracket removal
Order Part name
STEERING REMOVAL
Hold the machine by placing the
suitable stand under the engine.
Number plate
Handlebar
Front fender
1 Steering stem cap
2 Steering stem nut
3 Front fork
4 Upper bracket
5 Steering ring nut
6 Lower bracket
7 Bearing race cover
8 Upper bearing
9 Lower bearing
10 Bearing race
STEERING
2 Bearing removal
Q'ty
Support the machine securely so
there is no danger of it falling over.
Refer to "HANDLEBAR" section.
1
1
2 Refer to "FRONT FORK" section.
1
1 Use special tool.
Refer to "REMOVAL POINTS".
1
1
1
1 Refer to "REMOVAL POINTS".
2 Refer to "REMOVAL POINTS".
5 - 48
CHAS
Remarks
WARNING
