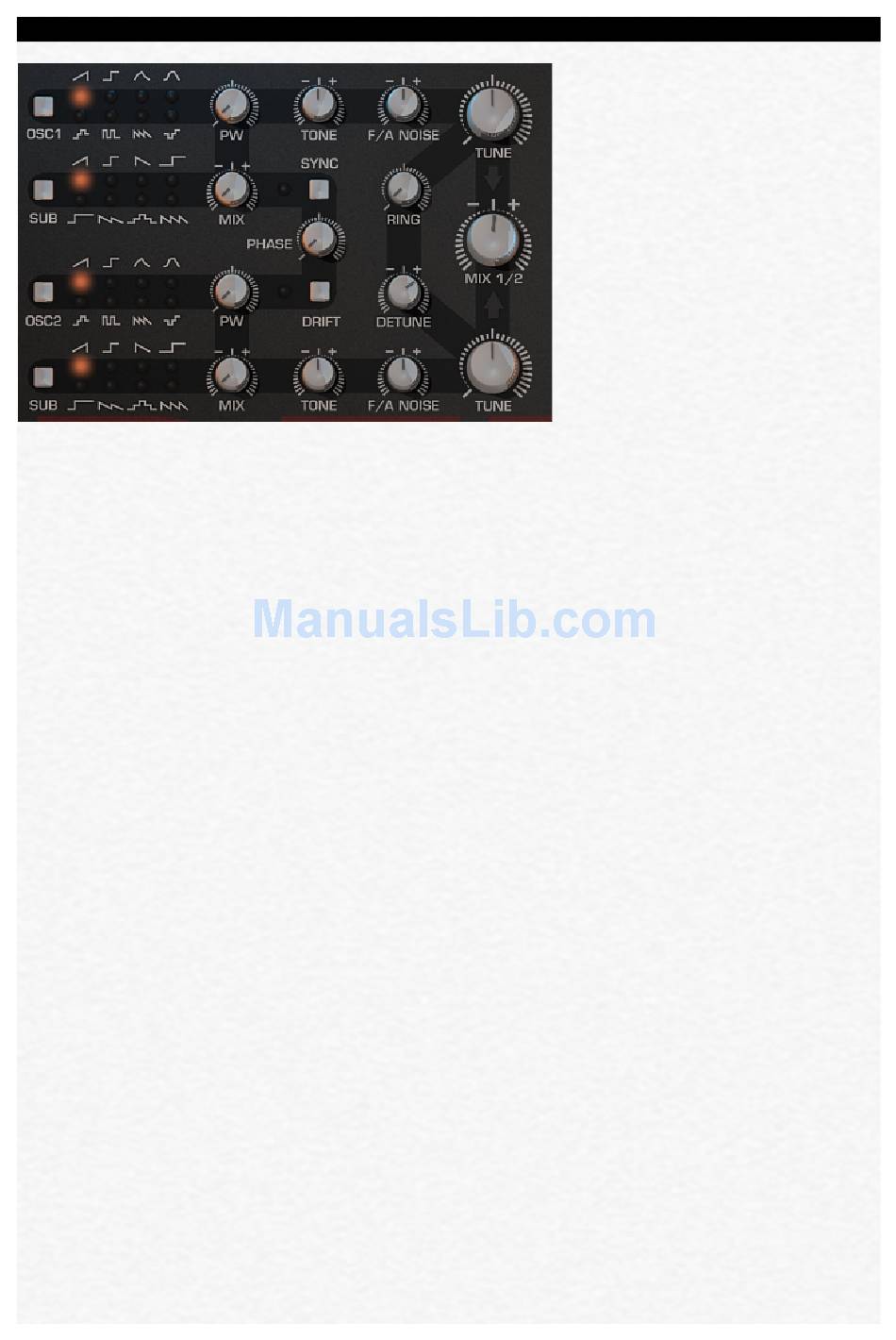

4.3 Oscillator section

– These buttons cycle between the various waveforms available for
OSC1 & OSC2
oscillators 1 and 2, the current active waveform is highlighted.
The PW knob next to the waveform selectors will morph from the current wave into
another waveform, a description of all waveforms can be seen in the list below:
1. Saw - PW morphs to double saw
2. Square - PW morphs to Pulse and Peek
3. Trianguloid - A 4step Triangle-style waveform where PW morphs to 4-step Saw
4. Sinoid - A sinoid waveform; PW morphs to Square
5. Double square - Sounds similar to the PWM Sawtooth wave of the Alpha Juno. PW
morphs to Double pulse
6. Comb - Sounds similar to the Comb wave of the Alpha Juno. Good for vocaloid sounds;
PW morphs the vocal
7. Organ-stack - Several stacked waves which sound similar to the analog Farsivar Organs.
PW morphs to double saw
8. Double pulse - PW morphs to square wave
– The sub buttons cycle between the various waveforms available for sub
SUB 1 & 2
oscillators 1 and 2, the current selected sub oscillator waveform is highlighted.
The sub oscillator waveforms are:
1. Sawtooth - 1 octave lower
2. Square wave - 1 octave lower
3. Inverted Sawtooth - 1 octave lower
4. Square wave - 2 octaves lower
-9-
