True to the Music
Stereo Background Music Switcher:
When setting up BGM (back ground music)
sources, many different source players or types
of players may be used. With this usually comes
the need to select trim for several devices
to allow easy switching between systems or
automate switching between units on a set
schedule. The SW4 can switch between mono
signals on each individual channel or switch
between stereo pairs to a common bus. Using
the contact closure foot-switch remote input, this
function can be controlled globally for automated
switching. In addition, the PFL switch and PFL
bus allow you to monitor the signal from a BGM
source before it is switched live.
PFL Monitor:
When using equipment such as dynamics for
output control for live stage mixes or in-ear
mixes, the ability to monitor the signal in real time
before or after a processor can be very helpful
to set levels and set up release slopes or other
aspects of the dynamics. This is also handy for
any processing where pre and post monitoring
may be required.
Connecting the signal to a processor from a mix
output, use a Y connector and send one signal to
the input of the processor and one signal to SW4
input A. Another Y connector will connect from
the output of the processor to the signal path to
the mix amp or send path and the other side of
the Y connector will patch to the SW4 input B.
Using the PFL switch on front panel, the monitor
signal can be switched between SW4 input A and
B without interrupting the original signal path or
using extra console inputs for PFL or monitoring.
Radial Engineering Ltd.

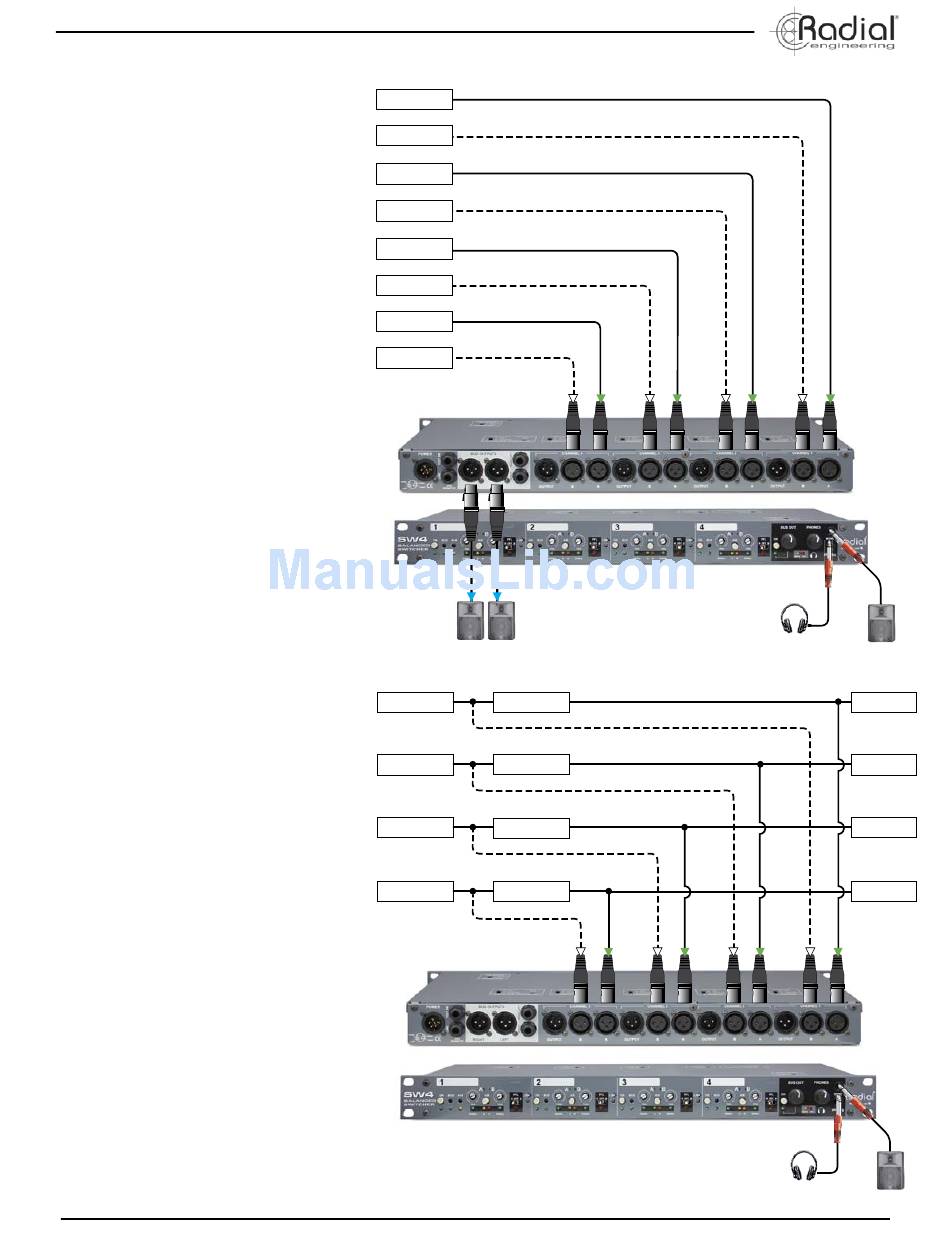

Music Source-1
Music Source-2
Music Source-3
Music Source-4
Music Source-5
Music Source-6
Music Source-7
Music Source-8
Loudspeakers
InEar Mix-1
Comp/Limit-1
InEar Mix-2
Comp/Limit-2
InEar Mix-3
Comp/Limit-3
InEar Mix-4
Comp/Limit-4
11
Headphones
PFL Cue Speaker
InEar Mix-1
Transmitter
InEar Mix-2
Transmitter
InEar Mix-3
Transmitter
InEar Mix-4
Transmitter
Headphones
PFL Cue Speaker
