L440GX+ Motherboard Specification
A B
FF
EE
DD
CC
Intel
NIC
BB
AA
6
5
Z
4
Y
3
2
iFlash
1
X

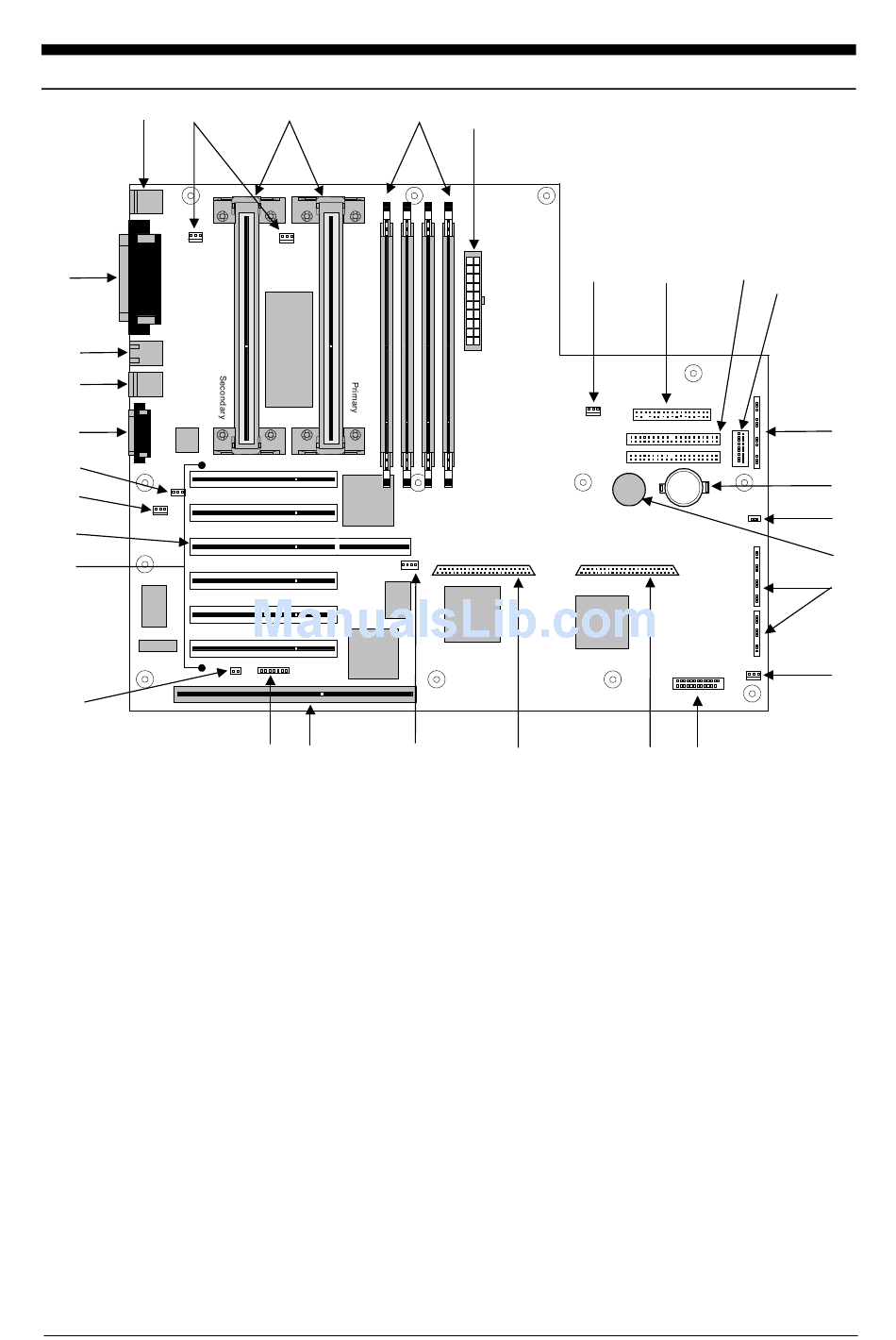

System Board Components

A PS/2 keyboard and Mouse ports
B Heatsink fan connectors
C Processor connector (SECC2)
D DIMM Memory sockets (4)
E ATX power connector
F System fan connector 2A
G Diskette drive connector
H IDE connectors
J Front panel connector, 16 pin
K AT front panel connector
L Battery
M BMC Write Enable Jumper
N Speaker
P Configuration jumper blocks
Q System fan connector 1
D
C
1 3
2
Intel
8440GX
Chipset
Intel
DC111D
Cirrus
Logic
5480
W V U
Figure 1
E
4
F
Primary
Secondary
LVD
Adaptec
Intel
7896
82371EB
T
R Server monitor module connector
S Wide SCSI connector
T LVD SCSI connector
U Hard Drive LED Input
V ISA expansion slot
W ICMB connector
X Chassis intrusion header
Y PCI expansion slots (6)
Z ARO RAID Enabler slot.
AA System fan connector 2B
BB WOL Enable/Disable Jumper
CC VGA connector
DD USB connector
EE RJ-45 network connector
FF I/O connections (Parallel, etc.)
H
G
J
SE
S R
K
L
M
N
P
Q
2
