SteelMax S14 Operator's Manual

SteelMax S14 Operator's Manual

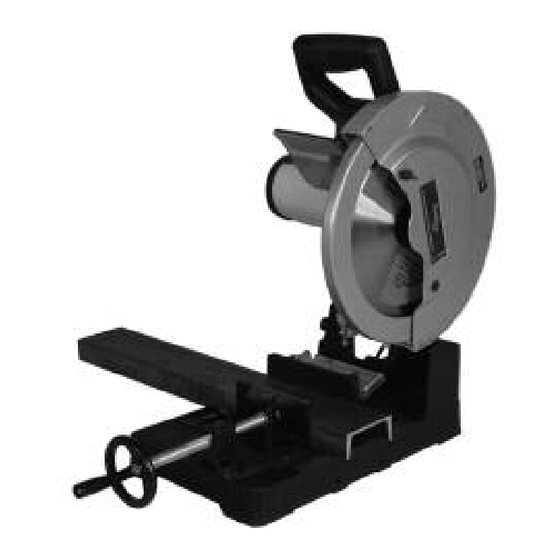

14" dry metal cutting saw
Hide thumbs Also See for S14:

Advertisement

Quick Links

E249773
Model
14
S
Metal Cutting Tool
14" Dry Metal Cutting Saw
19YZ
J1GM-DV-355
OPERATOR'S MANUAL
WARNING!
,
.
TO REDUCE THE RISK OF INJURY
USER MUST READ AND UNDERSTAND INSTRUCTION MANUAL
EYE PROTECTION
HEARING PROTECTION
NEVER PLACE
LINE VOLTAGE
REQUIRED
REQUIRED
FINGERS NEAR
PRESENT
CUTTING AREA.
BEWARE OF
ROTATING
MACHINE PARTS
) (
MODEL S14 (120 or 230V
50 or 60 Hz single phase)
Serial #
Date of Purchase
