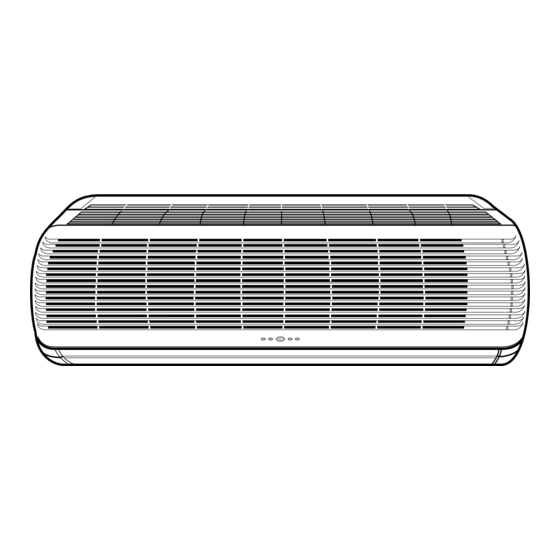

LG Deluxe High Wall Mini Split Owner's Manual
Room air conditioner
Hide thumbs
Also See for Deluxe High Wall Mini Split:
- Owner's manual (19 pages) ,
- Installation instructions manual (17 pages) ,
- Installation instructions manual (19 pages)
Table of Contents
Advertisement
LG
Room Air Conditioner
OWNER'S MANUAL
website http://www.LG.ca
IMPORTANT
• Please read this owner's manual carefully and thoroughly
before installing and operating your room air conditioner.
• Please retain this owner's manual for future reference after
reading it thoroughly.
LG
Prior to installation, this air-
conditioning unit must be submitted
for approval by the utility service
which provides electricity
(EN 61000-2, EN 61000-3 Norm).
Advertisement
Table of Contents
Related Manuals for LG Deluxe High Wall Mini Split
Summary of Contents for LG Deluxe High Wall Mini Split
-
Page 1: Room Air Conditioner
Room Air Conditioner OWNER'S MANUAL Prior to installation, this air- conditioning unit must be submitted for approval by the utility service which provides electricity (EN 61000-2, EN 61000-3 Norm). IMPORTANT • Please read this owner's manual carefully and thoroughly before installing and operating your room air conditioner. -
Page 2: Table Of Contents
• When the power cord is to be replaced, replacement work shall be performed by authorized personnel only using only genuine replacement parts. • Installation work must be performed in accordance with the National Electric Code by qualified and authorized personnel only. 2 Deluxe High Wall Mini Split... -
Page 3: Safety Precautions
Safety Precautions Safety Precautions To prevent the injury of the user or other people and property damage, the following instructions must be followed. I Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified by the following indications. - Page 4 • There is risk of fire or electric • There is risk of fire or electric • There is risk of fire or electric shock. shock. shock. 4 Deluxe High Wall Mini Split...
- Page 5 Safety Precautions Do not place a heater or other Do not allow water to run into Do not store of use appliances near the power electric part. flammable gas or cable. combustibles near the air conditioner. • There is risk of fire and electric •...
- Page 6 • Low refrigerant levels may cause • A bad connection may cause • To avoid vibration or water failure of product. water leakage. leakage. 90˚ 6 Deluxe High Wall Mini Split...
- Page 7 Safety Precautions Do not install the product Use two or more people to lift Do not install the product where the noise or hot air and transport the air where it will be exposed to from the outdoor unit could conditioner sea wind (salt spray) directly.
- Page 8 Do not use the remote if the batteries have leaked. • • They may burn or explode. The chemicals in batteries could cause burns or other health hazards. 8 Deluxe High Wall Mini Split...
-
Page 9: Prior To Operation
Prior to operation Prior to Operation Preparing for Operation 1. Contact an installation specialist for installation. 2. Plug in the power plug properly. 3. Use a dedicated circuit. 4. Do not use an extension cord. 5. Do not start/stop operation by plugging/unplugging the power cord. 6. -
Page 10: Introduction
Indoor Air outlet vent Air inlet vent Air filters (behind front panel) Vertical louver Horizontal louver Outdoor (Rear) (Side) Air intake vents Piping Air outlet vents 10 Deluxe High Wall Mini Split... -
Page 11: Electrical Safety
Electrical Safety Electrical Safety • This appliance must be properly grounded. To minimize the risk of electric shock, you must alway plug into a grounded oulet • Do not cut or remove the grounding prong from the power plug. • Attaching the adapter ground terminal to the wall receptacle cover screw does not ground the appliance unless the cover screw is metal and not insulated, and the wall receptacle is grounded through the house wiring. -
Page 12: How To Insert The Batteries
Signal receptor operation when power returns. Forced Operation Button : Operation starts, when this button is pressed Operation indication lamps and stops when you press the button again. 12 Deluxe High Wall Mini Split... -
Page 13: Remote Control Operations
Operating Instruction Remote Control Operations The remote control transmits the signals to the system. START/STOP BUTTON Operation starts when this button is pressed and stops when the button is pressed again. OPERATION MODE SELECTION BUTTON Used to select the operation mode. ROOM TEMPERATURE SETTING BUTTONS Used to select the room temperature. - Page 14 ROOM TEMPERATURE CHECKING BUTTON Used to check the room temperature. RESET BUTTON Used prior to resetting time or after replacing batteries. ˚C TO ˚F SWITCHING BUTTON Used to switch temperature reading from Centigrade to Fahrenheit. 14 Deluxe High Wall Mini Split...
-
Page 15: Cooling Operation
Operating Instruction Cooling Operation Press the Start/Stop button. The unit will respond with a beep. Open the door on the remote control. To select Cooling Operation, press the Operation Mode Selection button. Each time the button is pressed, the operation mode is shifted in the direction of the arrow. -
Page 16: Auto Operation
❏ During Auto Operation, pressing the chaos swing button makes the horizontal louvers swing up and down automatically. If you want to stop auto-swing, press the chaos swing button again. 16 Deluxe High Wall Mini Split... -
Page 17: Healthy Dehumidification Operation Mode
Operating Instruction Healthy Dehumidification Operation Mode This mode dehumidifies without overcooling. Press the Start/Stop button. The unit will respond with a beep. Open the door on the remote control. To select Healthy Dehumidification Operation, press the Operation Mode Selection button. Each time the button is pressed, the operation mode is shifted in the direction of the arrow. - Page 18 Set the fan speed again with the door of the remote control still closed. You can select the fan speed in four steps–low, medium, high, or CHAOS. Each time the button is pressed, the fan speed mode is shifted. 18 Deluxe High Wall Mini Split...
-
Page 19: Jet Cool Operation
Operating Instruction Jet Cool Operation Press the Start/Stop button. The unit will respond with a beep. Press the Jet Cool button to operate the speed cooling mode and the unit will operate in super high fan speed on cooling mode for 30 minutes. To cancel the Jet Cool mode, press the Jet Cool button again or the fan speed button or the room temperature setting button and the unit will operate in high fan speed on... -
Page 20: Sleep Mode
NOTICE Select one of the following four types of operation. with the unit running Delay OFF Timer Delay ON Timer Delay OFF and ON Timer Delay ON and OFF Timer 20 Deluxe High Wall Mini Split... -
Page 21: Vertical Airflow Direction Control
Operating Instruction Vertical Airflow Direction Control The up/down airflow (Vertical Airflow) can be NOTICE adjusted by using the remote control. ❏ If you press the CHAOS swing button, the vertical airflow direction is changed automatically based on the CHAOS algorithm to distribute the air in the room evenly and at the same time to make the human body feel most comfortable, as if enjoying a natural breeze. -
Page 22: Forced Operation
The cooling capacity indicated in the specification is the value when the fan speed is set to high, and the capacity will be lower at low or medium fan speed. High fan speed is recommended when you wish to cool the room quickly. 22 Deluxe High Wall Mini Split... -
Page 23: Maintenance And Service
Maintenance and Service Maintenance and Service Before performing any maintenance, turn off the main power to the system. Indoor Unit ❏ Never use any of the followings: Grille, Case, and Remote Control • Water hotter than 40°C(104°F) ❏ Turn the system off before cleaning. To clean, wipe Could cause deformation and/or with a soft, dry cloth. -
Page 24: Outdoor Unit
(Side) and panel vents may be professionally steam cleaned. Air intake vents Piping Air outlet NOTICE vents Dirty or clogged coils will reduce the operating efficiency of the system and cause higher operating costs. 24 Deluxe High Wall Mini Split... -
Page 25: Common Problems And Solutions
Maintenance and Service Common Problems and Solutions Before calling for service If you have problems with your air conditioner, read the following information and try to solve the problem. If you cannot find a solution, turn off the air conditioner and contact your dealer. Air conditioner does not operate 1. -
Page 26: Troubleshooting
• Check for open furnace floor registers and cold air returns. I Cooling coils have iced up. • See Air Conditioner Freezing Up below. * You can refer to the Energy Star program in detail at www.energystar.gov. 26 Deluxe High Wall Mini Split...
