Page 1: Duct Type
PERATING ANUAL OPERATING MANUAL BEDIENUNGSANLEITUNG MODE D’EMPLOI MANUAL DE FUNCIONAMIENTO MANUALE DI ISTRUZIONI ΕΓ ΕΙΡΙ∆Ι ΛΕΙΤ ΥΡΓΙΑΣ MANUAL DE INSTRUÇÕES AIR CONDITIONER DUCT TYPE SU MO TU WE TH FR SA 3 6 9 12 15 18 21 KEEP THIS MANUAL P/N9373117049 FOR FUTURE REFERENCE 05.2.16, 09:14... -
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ..........1 WEEKLY TIMER .............. 6 NAME OF PARTS ............2 TEMPERATURE SET BACK TIMER ........ 8 PREPARATORY OPERATION ......... 3 OPERATING TIPS ............9 OPERATION ..............3 CARE AND MAINTENANCE ......... 11 TIMER FUNCTIONS ............5 SELF-DIAGNOSIS ............ -
Page 3: Name Of Parts

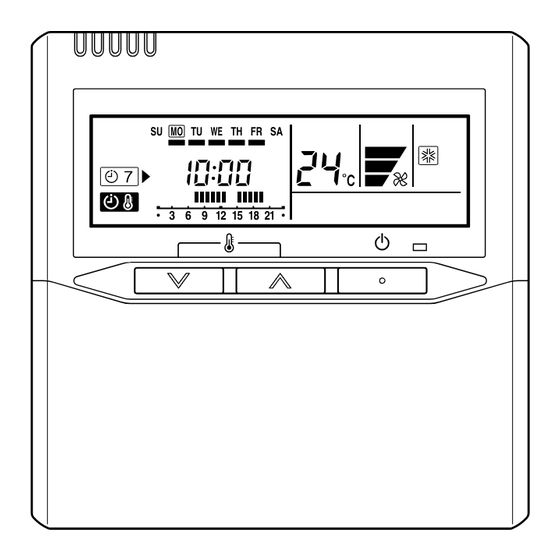

NAME OF PARTS Remote controller SU MO TU WE TH FR SA 3 6 9 12 15 18 21 CLOCK ADJUST DAY OFF ENERGY THERMO SET BACK SAVE SENSOR DELETE Start/Stop Button SET Button Set Temperature Button Operation Lamp Master Control Button Timer and Clock Display Fan Control Button Operation Mode Display... -
Page 4: Preparatory Operation
PREPARATORY OPERATION Set the current day and time Press the DAY button and select the current day. appears around the selected day. DAY OFF CLOCK ADJUST Press the timer mode (CLOCK ADJUST) button for 2 seconds or more. The time display on the remote controller will flash. - Page 5 OPERATION Energy save ENERGY SAVE Press the ENERGY SAVE button to start or stop the energy-sav- ing air conditioner operation. For details on the function, refer to page 9. Room temperature sensor selection THERMO SENSOR Indoor unit Press the THERMO SENSOR button to select whether the room temperature is detected at the indoor unit (remote sensor) or the remote controller.
-
Page 6: Timer Functions
TIMER FUNCTIONS OFF timer (See page 5.) Use this timer function to stop air conditioner operation. The timer operates and air conditioner operation stops after the set time has passed. The timer can be set up to 24 hours in advance. ON timer (See page 5.) Use this timer function to start air conditioner operation. -
Page 7: Weekly Timer
WEEKLY TIMER Weekly timer setting SU MO TU WE TH FR SA CLOCK ADJUST 3 6 9 12 15 18 21 Press the SET button for 2 sec- Press the timer mode button to select the weekly timer. onds or more. ●... - Page 8 WEEKLY TIMER WEEKLY timer operation ● To start ● To cancel SU MO TU WE TH FR SA DELETE CLOCK ADJUST 3 6 9 12 15 18 21 When the weekly timer is selected, the • Press the DELETE button to cancel 3 6 9 12 15 18 21 timer starts automatically.
-
Page 9: Temperature Set Back Timer
TEMPERATURE SET BACK TIMER Temperature SET BACK timer setting SET BACK SU MO TU WE TH FR SA If there is no existing SET BACK tempera- ture setting, “- -” will be displayed for the 3 6 9 12 15 18 21 temperature. -
Page 10: Operating Tips
OPERATING TIPS Instructions relating to heating are applicable only to “HEAT & COOL MODEL ” (Reverse Cycle). Mode operation: AUTO Energy save COOLING MODEL • The energy conservation mode (ENERGY SAVE) raises the • When the room temperature is 2 °C higher than the set set temperature slightly in the cooling mode and lowers temperature, the mode will switch between Cooling and the set temperature in the heating mode to economically... - Page 11 OPERATING TIPS Multi-type Air conditioner This indoor unit can be connected to a multi-type outdoor unit. The multi-type air conditioner allows multiple indoor units to be operated in multiple locations. The indoor units may be operated simultaneously, in accordance with their respective output. Simultaneous Use of Multiple Units Instructions relating to inverter (❖) are applicable only to “INVERTER MODEL ”...
-
Page 12: Care And Maintenance
CARE AND MAINTENANCE CAUTION! Before cleaning the unit, be sure to stop the unit and power supply. (Turn off the electrical breaker) Cleaning the air filter If dirt is allowed to collect in the air filter, the airflow will be reduced, leading to reduced performance, and increased operation noise. -
Page 13: Troubleshooting
TROUBLESHOOTING Instructions relating to heating are applicable only to “HEAT & COOL MODEL ” (Reverse Cycle). WARNING! In the event of a malfunction (burning smell, etc.), immediately stop operation, turn off the electrical breaker, and consult authorized service personnel. Merely turning off the unit’s power switch will not completely disconnect the unit from the power source. Always be sure to turn off the electrical breaker to ensure that power is completely off. - Page 14 TROUBLESHOOTING Symptom Items to check See Page ● Has there been a power failure? CHECK ONCE Doesn’t operate at all: — ● Has a fuse blown out, or a circuit breaker been tripped? MORE ● Is the timer operating? 5 to 7 ●...
