ACU-RITE 1525 Instruction Manual

ACU-RITE 1525 Instruction Manual

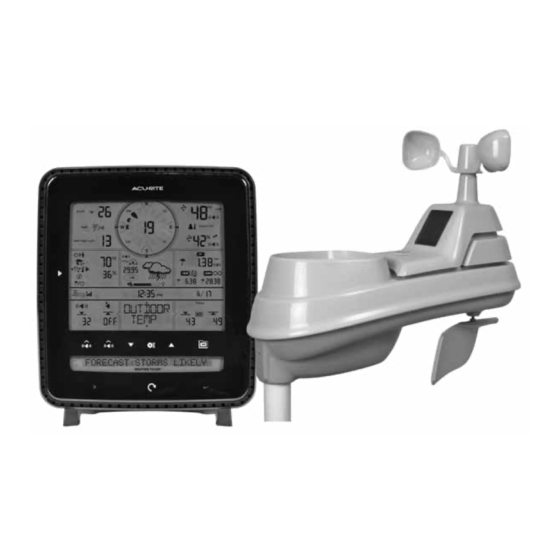

Professional weather center
Hide thumbs Also See for 1525:
Table of Contents

Advertisement

Quick Links

CONTENTS
Package Contents .................. 2
Product Registration ............... 2
Features: Display Unit ............ 4
Back of Display Unit ............... 6
Setup .................................... 7
5-in-1 Sensor Setup ................ 7
Display Unit Setup ................. 8
Set the Time & Date ............... 9
Measurement Units ...............10
Set Language .......................10
Placement Guidelines ............ 11
Questions?
(877) 221-1252 or visit www.AcuRite.com.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Professional Weather Center
PC Connect Overview ...........13
PC Connect Software ............14
Weather Ticker .....................16
Programmable Alarms ...........18
Troubleshooting ................... 20
Care & Maintenance ............ 23
Calibration .......................... 23
Specifications ....................... 25
FCC Information .................. 25
Customer Support ................ 26
Warranty............................. 26
Contact Customer Support at
Instruction Manual
model 01525

Advertisement

Table of Contents
loading

Related Manuals for ACU-RITE 1525

Summary of Contents for ACU-RITE 1525

  • Page 1: Table Of Contents

    Instruction Manual Professional Weather Center model 01525 CONTENTS 5-in-1 Sensor Installation ..12 Unpacking Instructions ... 2 PC Connect Overview ...13 Package Contents ....2 PC Connect USB Modes ..13 Product Registration ....2 PC Connect Software ....14 Features & Benefits: 5-in-1 ..3 Using the Weather Center ..15...

  • Page 2: Unpacking Instructions

    Congratulations on your new AcuRite product. To ensure the best possible product performance, please read this manual in its entirety and retain it for future reference. Unpacking Instructions Remove the protective film that is applied to the LCD screen prior to using this product.

  • Page 3: Features & Benefits: 5-In-1

    Features & Benefits 5-IN-1 SENSOR 5. Temperature & Humidity Sensors 1. Rainfall Collector Funnel (internal) 2. Solar Cell Panel 6. Mounting Point Converts sunlight into power to run internal aspirating fan. 7. Wind Speed Anemometer Internal Aspirating Fan 8. Wind Direction Vane (not shown) Draws ambient air into 9.

  • Page 4: Features: Display Unit

    Features & Benefits Display Unit 3738 39 40...
  • Page 5 1. Peak Wind Speed selected on display (#33). Press twice for all-time high and date Highest speed from past 60 minutes. recorded. 2. Average Wind Speed 20. Activates Weather Ticker Message of all speeds from past 2 minutes. 21. Current Outdoor Temperature 3.

  • Page 6: Back Of Display Unit

    Back of Display Unit BACK OF DISPLAY UNIT 6. Clear All Clears all recorded data without 1. Integrated Hang Hole having to reset time and date for easy wall mounting Reset 2. Plugin for USB Cable Full reset to factory defaults 3.

  • Page 7: Setup

    SETUP 5-IN-1 Sensor Setup Set the A-B-C Switch cause alkaline batteries to function improperly. Use lithium batteries in Locate the A-B-C switch inside the the 5-in-1 sensor for temperatures battery compartment. Set the A-B-C below -4ºF / -20ºC. switch to A, B or C. You must select 1.

  • Page 8: Display Unit Setup

    Display Unit Setup The display unit operates with batteries and/or power adapter. Regardless of the power source, it is recommended that batteries always be installed to ensure continuous operation (and retain records) in case of a power outage. Set the A-B-C Switch Insert 6 x AA alkaline batteries into the battery compartment, The A-B-C switch is located inside...

  • Page 9: Set The Time & Date

    Set the Time & Date The clock and calendar are utilized to time stamp history records and other data, so it is important to set the time and date soon after you power on the display unit. Set the Time 1.

  • Page 10: Measurement Units

    Select Measurement Units To select between standard units (mph, ºF, etc.) or metric units (kph, ºC, etc.): 1. Press the “▲” or “▼” buttons until “SET UNITS?” is displayed on the Selectable Category part of the display unit. 2. Press the “ ”...

  • Page 11: Placement Guidelines

    Placement for Maximum Accuracy AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of both the display unit and the sensor are critical to the accuracy and performance of this product. Display Unit Placement Place the display unit in a dry area free of dirt and dust. To ensure accurate temperature measurement, place out of direct sunlight and away from heat sources or vents.

  • Page 12: 5-In-1 Sensor Installation

    5-in-1 Sensor Installation Guidelines INSTALLATION HEIGHT Mount the sensor at a minimum height of 5 feet (1.5 meters) off the ground, in an open area. Higher is better for wind measurements- the National Weather Service recommends 33 feet (10 meters) high! MOUNTING OPTIONS The included mounting bracket is designed to screw...

  • Page 13: Pc Connect Overview

    PC Connect Overview PC Connect lets you access your Weather Center data in the following ways: • Data File: Display unit logs (or stores) data so that you can download it to a PC in a data file (CSV or comma-separated values file). •...

  • Page 14: Pc Connect Software

    Download the PC Connect Software PC Connect software is available as a free download online. The PC Connect instruction manual is a PDF file that is included in the software download. Read the manual to learn how to setup PC Connect preferences and advanced features.

  • Page 15: Using The Weather Center

    OPERATION Using the Professional Weather Center Learning Mode Self-Calibrating Forecasting use a unique algorithm to analyze changes in pressure over a time period (called Learning Mode) to determine your altitude. After 14 days, the Learning Mode icon disappears from the display screen. At this point, the self-calibrated pressure is tuned in to your location and the unit is ready for superior weather prediction.

  • Page 16: Weather Ticker

    Weather Ticker ™ The Weather Ticker automatically streams your real-time weather information and alerts as scrolling text in the lower part of the display unit screen. You can manually cycle through all the available messages by pressing “ ”. Default WEATHER TICKER messages are pre-loaded as follows: 12 to 24 hour future weather forecast FORECAST Current moon phase...
  • Page 17 Customize Weather Ticker Messages Customize which messages you want to scroll across the WEATHER TICKER: 1. Press the “ ” button to manually cycle through each message available. 2. During the MANUAL REVIEW: PRESS the “ ” button to activate the current scrolling message.

  • Page 18: Programmable Alarms

    Programmable Weather Alarms Each Selectable Weather Category features an alarm option. When an alarm sounds, the display unit emits audible beeping and flashes the affected category, its alarm settings, and any other relevant data. Some alarms can be customized to alert you when your programmed value is reached.
  • Page 19 ICON DEFINITIONS = Alarm On = Alarm Off = Adjust Mode = Low Value = High Value BUTTON FUNCTIONS Silence a Sounding Alarm Press to activate or The alarm sounds initially for a few minutes, deactivate an alarm. then silences itself. The alarm then sounds every Press and hold to set few minutes afterwards until one of the or adjust an alarm...

  • Page 20: Troubleshooting

    Troubleshooting Problem Possible Solution • Relocate the display unit and/or the 5-in-1 sensor. The units must be within 330 ft (100 m) of each other. • Make sure both units are placed at least 3 feet (.9 m) away from electronics that may interfere with the wireless communication (such as TVs, microwaves, computers, etc).
  • Page 21 Troubleshooting Problem Possible Solution • Make sure both the display unit and 5-in-1 sensor are placed away from any heat sources or vents (see page 11). Inaccurate • Make sure both units are positioned away from moisture sources (see page 11). temperature or humidity •...
  • Page 22 Troubleshooting Problem Possible Solution • Confirm the status readout in PC Connect software on your PC indicates that data was uploaded OK. • Make certain you created an account or logged into your existing account on www.acu-link.com, and that you have setup your display unit MAC ADDRESS online, as well.

  • Page 23: Care & Maintenance

    Care & Maintenance Display Unit Care Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep away from dust, dirt and moisture. Clean ventilation ports regularly with a gentle puff of air. 5-in-1 Sensor Care Clean the Sensor Clean with a soft damp cloth.
  • Page 24 “▲” or “▼” 3. Press the buttons to calibrate the data value higher or lower from the actual reading. 4. Press the “ ” button to confirm the calibration adjustment. Note: The “ ” icon remains illuminated next to calibrated values.

  • Page 25: Specifications

    Specifications TEMPERATURE RANGE Outdoor: -40ºF to 158ºF; -40ºC to 70ºC Indoor: 32ºF to 122ºF; 0ºC to 50ºC HUMIDITY RANGE Outdoor: 1% to 99% Indoor: 16% to 98% WIND SPEED 0 to 99 mph; 0 to 159 kph WIND DIRECTION 16 points INDICATORS RAINFALL 0 to 99.99 in;...

  • Page 26: Customer Support

    Customer Support AcuRite customer support is committed to providing you with best-in- class service. For assistance, please have the model number of this product available and contact us in any of the following ways: (877) 221-1252 info@chaney-inst.com AcuRite 24/7 support at www. .com Installation Videos Register your Product...
  • Page 28 ©Chaney Instrument Co. All rights reserved. AcuRite is a registered trademark of the Chaney Instrument Co., Lake Geneva, WI 53147. All other trademarks and copy- rights are the property of their respective owners. AcuRite uses patented technology. Printed in China 01525 INST 070814 Visit www.AcuRite.com/patents for details.
