CONTENTS
Unpacking Instructions ........... 2
Package Contents .................. 2
Product Registration ............... 2
Features & Benefits: 5-in-1 ....... 3
Features: Display Unit ............ 4
Back of Display Unit ............... 6
Setup .................................... 7
5-in-1 Sensor Setup ................ 7
Display Unit Setup ................. 8
Set the Time & Date ............... 9
Measurement Units ...............10
Set Language .......................10
5-in-1 Sensor Installation ........12
Questions?
(877) 221-1252 or visit www.AcuRite.com.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Professional Weather Center
PC Connect Overview ...........13
PC Connect USB Modes ........13
PC Connect Software ............14
Using the Weather Center .....15
Weather Ticker .....................16
Programmable Alarms ...........18
Troubleshooting ................... 20
Care & Maintenance ............ 23
Calibration .......................... 23
Specifications ....................... 25
FCC Information .................. 25
Customer Support ................ 26
Warranty............................. 26
Contact Customer Support at
Instruction Manual
model 01036
Advertisement
Table of Contents
Related Manuals for ACU-RITE 01036
Summary of Contents for ACU-RITE 01036
-
Page 1: Table Of Contents
Instruction Manual Professional Weather Center model 01036 CONTENTS Unpacking Instructions ... 2 PC Connect Overview ...13 Package Contents ....2 PC Connect USB Modes ..13 Product Registration ....2 PC Connect Software ....14 Features & Benefits: 5-in-1 ..3 Using the Weather Center ..15 Features: Display Unit .... -
Page 2: Unpacking Instructions
Congratulations on your new AcuRite product. To ensure the best possible product performance, please read this manual in its entirety and retain it for future reference. Unpacking Instructions Remove the protective film that is applied to the LCD screen prior to using this product. -
Page 3: Features & Benefits: 5-In-1
Features & Benefits 5-in-1 SENSOR 5. Temperature & Humidity Sensors 1. Rainfall Collector Funnel (internal) 2. Solar Cell Panel 6. Mounting Point Converts sunlight into power to run 7. Wind Speed Anemometer internal aspirating fan. Internal Aspirating Fan 8. Wind Direction Vane (not shown) 9. -

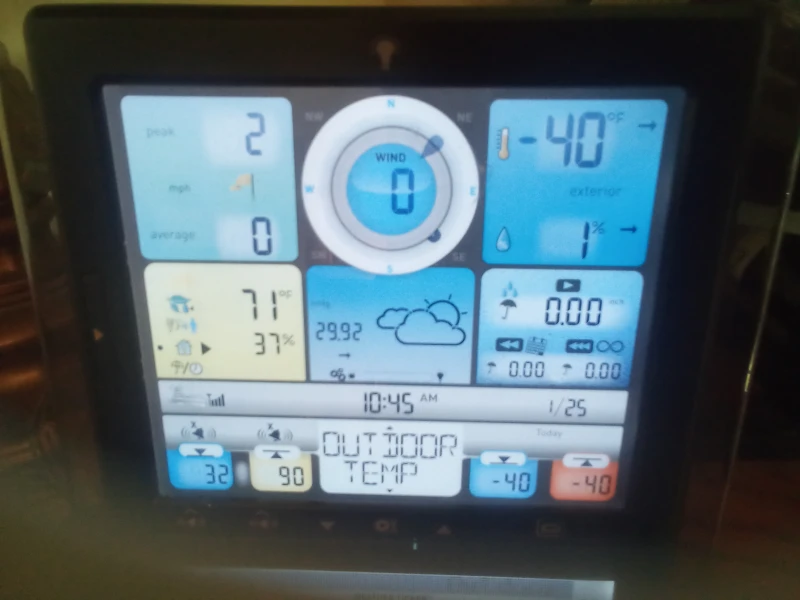

Page 4: Features: Display Unit
Features & Benefits Display Unit 27 26 25 24 22 21... - Page 5 1. Previous 2 Wind Directions 22. Activate Weather Ticker Message 2. Current Wind Direction 23. “▲“/”▼“ to Select Category (#17) & Adjust Settings 3. Touch Activated Backlight 24. Weather Ticker Manual Cycle Momentary during battery power, always on/off for power adapter. Press to advance through messages.
-
Page 6: Back Of Display Unit
Back of Display Unit BACK OF DISPLAY UNIT Clear Today Clears data recorded since 1. Plug-in for Power Adapter 12:00am 2. Plug-in for USB Cable 8. Clear All Clears all recorded data without 3. Integrated Hang Hole having to reset time and date for easy wall mounting 9. -
Page 7: Setup
SETUP 5-in-1 Sensor Setup Set the A-B-C Switch cause alkaline batteries to function improperly. Use lithium batteries in Locate the A-B-C switch inside the the 5-in-1 sensor for temperatures battery compartment. Set the A-B-C below -4ºF / -20ºC. switch to A, B or C. You must select 1. -
Page 8: Display Unit Setup
Display Unit Setup Set the A-B-C Switch Write Down the MAC ADDRESS The A-B-C switch is located inside 12 digit unique ID needed for the battery compartment. It can online connectivity functions. be set to A, B or C. However, you must select the same letter Install or Replace Backup choices for both the sensor and... -
Page 9: Set The Time & Date
Set the Time & Date The clock and calendar are utilized to time stamp history records and other data, so it is important to set the time and date soon after you power on the display unit. Set the Time 1. -
Page 10: Measurement Units
Select Measurement Units To select between standard units (mph, ºF, etc.) or metric units (kph, ºC, etc.): 1. Press the “▲“ or “▼“ buttons until “SET UNITS?” is displayed on the Selectable Category part of the display unit. 2. Press the “ ”... -
Page 11: Sensor & Display Placement
Placement for Maximum Accuracy AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of both the display unit and the sensor are critical to the accuracy and performance of this product. Display Unit Placement Place the display unit in a dry area free of dirt and dust. To ensure accurate temperature measurement, place out of direct sunlight and away from heat sources or vents. -
Page 12: 5-In-1 Sensor Installation
5-in-1 Sensor Installation Guidelines INSTALLATION HEIGHT Mount the sensor at least 5 feet (1.5 meters) off the ground in an open area. Higher is better for wind measurement- the National Weather Service recommends 33 feet (10 meters) high! MOUNTING OPTIONS The included mounting bracket is designed to screw directly onto wooden posts or surfaces that are 2”x4”... -
Page 13: Pc Connect Overview
PC Connect Overview PC Connect lets you access your Weather Center data in the following ways: • Data File: Display unit logs (or stores) data so that you can download it to a PC in a data file (CSV, or comma-separated values file). •... -
Page 14: Pc Connect Software
Download the PC Connect Software The PC Connect software is available online as a free download. An instruction manual for PC Connect is included (PDF file) when you download the software. Read the manual to learn how to setup PC Connect preferences and features. Download PC Connect software to your computer by visiting: http://www.acurite.com/pc-connect-download Or, you can navigate to the page above using the following path:... -
Page 15: Using The Weather Center
OPERATION Using the Professional Weather Center Learning Mode Self-Calibrating Forecasting use a unique algorithm to analyze changes in pressure over a time period (called Learning Mode) to determine your altitude. After 14 days, the Learning Mode icon disappears from the display screen. At this point, the self-calibrated pressure is tuned in to your location and the unit is ready for superior weather prediction. -
Page 16: Weather Ticker
Weather Ticker ™ The Weather Ticker automatically streams your real-time weather information and alerts as scrolling text in the lower part of the display unit screen. You can manually cycle through all the available messages by pressing “ ”. Default WEATHER TICKER messages are pre-loaded as follows: FORECAST 12 to 24 hour future weather forecast MOON PHASE... - Page 17 Customize Weather Ticker Messages Customize which messages you want to scroll across the WEATHER TICKER: 1. Press the “ ” button to manually cycle through each message available. 2. During the MANUAL REVIEW: PRESS the “ ” button to activate the current scrolling message.
-
Page 18: Programmable Alarms
Programmable Weather Alarms Each Selectable Weather Category features an alarm option. When an alarm sounds, the display unit emits audible beeping and flashes the affected category, its alarm settings, and any other relevant data. Some alarms can be customized to alert you when your programmed value is reached. - Page 19 ICON DEFINITIONS = Alarm On = Alarm Off = Adjust Mode = Low Value = High Value BUTTON FUNCTIONS Silence a Sounding Alarm Press to activate or The alarm sounds initially for a few minutes, deactivate an alarm. then silences itself. The alarm then sounds every Press and hold to set few minutes afterwards until one of the or adjust an alarm...
-
Page 20: Troubleshooting
Troubleshooting Problem Possible Solution • Relocate the display unit and/or the 5-in-1 sensor. The units must be within 330 ft (100 m) of each other. • Make sure both units are placed at least 3 feet (.9 m) away from electronics that may interfere with the wireless communication (such as TVs, microwaves, computers, etc). - Page 21 Troubleshooting Problem Possible Solution • Make sure both the display unit and 5-in-1 sensor are placed away from any heat sources or vents (see page 11). Inaccurate • Make sure both units are positioned away from moisture sources (see page 11). temperature or humidity •...
- Page 22 Troubleshooting Problem Possible Solution • Confirm the status readout in PC Connect software on your PC indicates that data was uploaded OK. • Make certain you created an account or logged into your existing account on www.acu-link.com, and that you have setup your display unit MAC ADDRESS online, as well.
-
Page 23: Care & Maintenance
Care & Maintenance Display Unit Care Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep away from dust, dirt and moisture. Clean ventilation ports regularly with a gentle puff of air. 5-in-1 Sensor Care Clean the Sensor Clean with a soft damp cloth. - Page 24 “▲“ or “▼“ buttons 3. Press the to calibrate the data value higher or lower from the actual reading. 4. Press the “ ” button to confirm the calibration adjustment. Note: The “ ” icon remains illuminated next to calibrated values.
-
Page 25: Specifications
Specifications TEMPERATURE RANGE Outdoor: -40ºF to 158ºF; -40ºC to 70ºC Indoor: 32ºF to 122ºF; 0ºC to 50ºC HUMIDITY RANGE Outdoor: 1% to 99% Indoor: 16% to 98% WIND SPEED 0 to 99 mph; 0 to 159 kph WIND DIRECTION 16 points INDICATORS RAINFALL 0 to 99.99 in;... -
Page 26: Customer Support
Customer Support AcuRite customer support is committed to providing you with best-in- class service. For assistance, please have the model number of this product available and contact us in any of the following ways: (877) 221-1252 info@chaney-inst.com AcuRite 24/7 support at www. .com Installation Videos Register your Product... - Page 28 ©Chaney Instrument Co. All rights reserved. AcuRite is a registered trademark of the Chaney Instrument Co., Lake Geneva, WI 53147. All other trademarks and copy- rights are the property of their respective owners. AcuRite uses patented technology. Printed in China 01036 INST 102314 Visit www.AcuRite.com/patents for details.
