Toyota 2008 Tundra Navigation System Installation Manual
  1. Manuals
  2. Brands
  3. Toyota Manuals
  4. Car Navigation system
  5. TUNDRA 2008
  6. Installation manual

Toyota 2008 Tundra Navigation System Installation Manual

Hide thumbs Also See for 2008 Tundra Navigation System:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , Maintenance Manual
Customization
Installation Instructions
August 29, 2008
:
Title

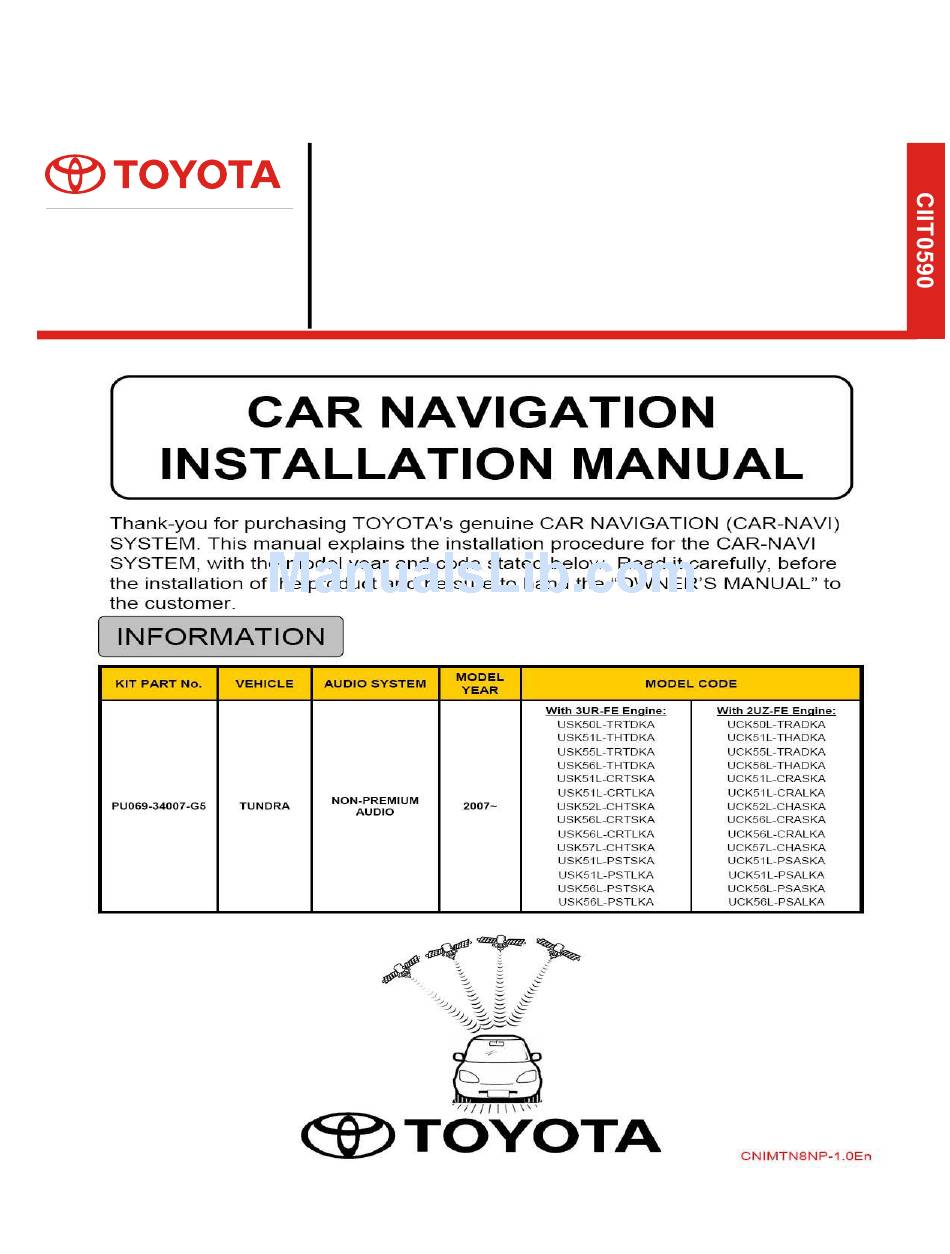

NAVIGATION INSTALLATION MANUAL
With Bluetooth Instructions (Tundra)
Models:
2008 Toyota Tundra
