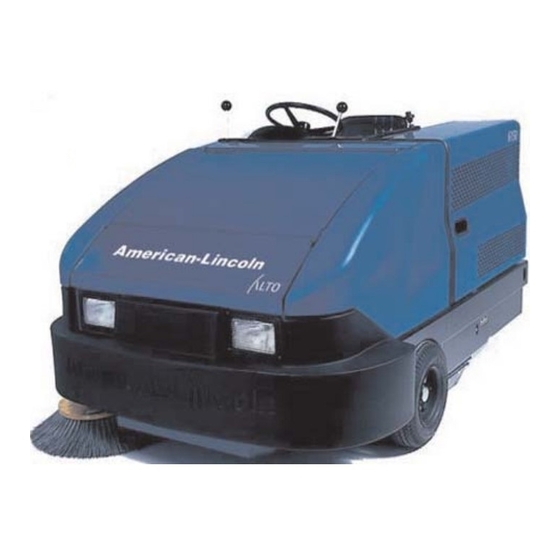

Power sweeper
Hide thumbs Also See for 6150:
Table of Contents

Advertisement

Quick Links

OPERATOR'S
MANUAL &
PARTS LIST
Beginning with Serial No. 630893; 630921>
READ THIS BOOK
This book has important information for the use and safe operation of this machine. Failure
to read this book prior to operating or attempting any service or maintenance procedure to
your machine could result in injury to you or to other personnel; damage to the machine or to
other property could occur as well. you must have training in the operation of this machine
before using it. If you or your operator (s) cannot read English, have this manual explained
fully before attempting to operate this machine.
Si Ud. o sis operadores no pueden leer el Inglés, se hagen explicar este manual completamente
antes de tratar el manejo o servicio de esta máquina.
All directions given in this book are as seen from the operator's position at the rear of the machine.
Part No. 2-86-00188
American-Lincoln
6150
AMERICAN-LINCOLN
1996 American-Lincoln®
TECHNOLOGY
RETURN
6150
POWER
SWEEPER
ISO 9001
U L
®
#
FILE A2287
USA
Printed in the
1-1
