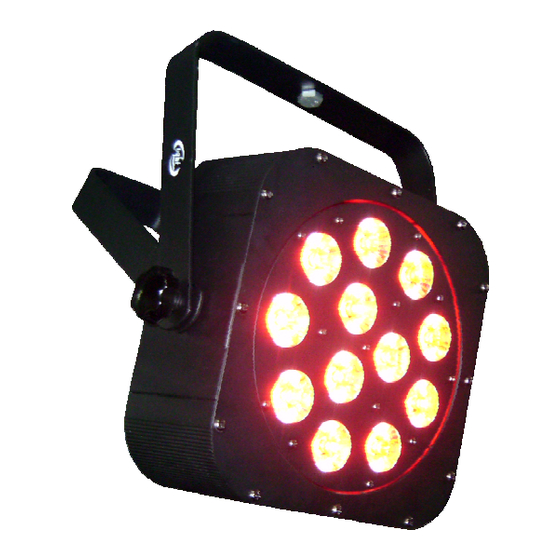

FLAT1212
User's instruction manual
This manual contains important information about the safe installation and use of this product
Please read this instruction manual carefully before installing or operating
Please keep these instructions in a safe place for future reference
www.lightemotion.com.au
Advertisement
Table of Contents
Related Manuals for Light Emotion FLAT1212
Summary of Contents for Light Emotion FLAT1212
- Page 1 WWW.LIGHTEMOTION.COM.AU FLAT1212 User’s instruction manual This manual contains important information about the safe installation and use of this product Please read this instruction manual carefully before installing or operating Please keep these instructions in a safe place for future reference...
-
Page 2: What Is Included
Congratulations on the purchase of your FLAT1212 by Light Emotion. We are confident that you will be satisfied with your purchase. We have prepared this manual to assist you with the operation of this item. CONTENTS SECTION Page WHAT IS INCLUDED, SAFETY INSTRUCTION POWER, FUSE, INSTALLATION MAINTENANCE &... -
Page 3: Installation
• In the event of serious operating problem, stop using the unit immediately. Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center. •... -
Page 4: Dmx Terminator
2. This lighting effect must be 0.5m away from any flammable materials or any walls or ceilings. 3. Do not block or inhibit the air flow from the ventilation holes. Light Emotion have various hook clamps* and safety wires* suitable for your PAR 64LED Please contact your local dealer for more information *Not included. -
Page 5: Operation
OPERATION: There are six operation modes which are selected by ‘MODE’ button. The dot that locates at the fourth LED display will flick when you operate control panel. The dot will automatically turn off after 60 seconds if you do not select anything. The LED display shows the current operation mode. When LED display switches off, press the ‘MODE’... - Page 6 1. Manual dimmer color mode 1) Manual dimmer color Press "MODE" button, select the manual dimmer color mode. At this time, the four LED display shows red " ", press the "SET UP" to choose different colors, green " ", blue " ", white "...
- Page 7 5. Other function 1) Display on / off Press "SET UP" button to find " "(LED display always on) or " "(LED display turns off automatically after 60 seconds if there is no operation), press "UP" or "DOWN" to select display on or off.
- Page 8 8 channels mode • Channel Value Function 0-255 0% - 100% 0-255 GREEN 0% - 100% 0-255 BLUE 0% - 100% 0-255 WHITE 0% - 100% 0-255 AMBER 0% - 100% 0-255 0% - 100% 0-255 MASTER DIMMER 0% - 100% COLOR MACROS PLEASE REFER TO COLOR MACROS TABLE NOTE: Channel 1, 2, 3, 4, 5 and 6 will not work, when Channel 8 is being used.
-
Page 9: Specifications
SPECIFICATIONS: • Power input: AC 90V-240V/50HZ-60HZ • Wattage: 105W • LEDs: 12 pcs 12W (RGBWA+UV 6 in 1) • Beam angle of LEDs: 40 degree • 3-pin female XLR socket and 3-pin male XLR socket • Built-in microphone • Four button LED digit display •...
