LEDBALL6

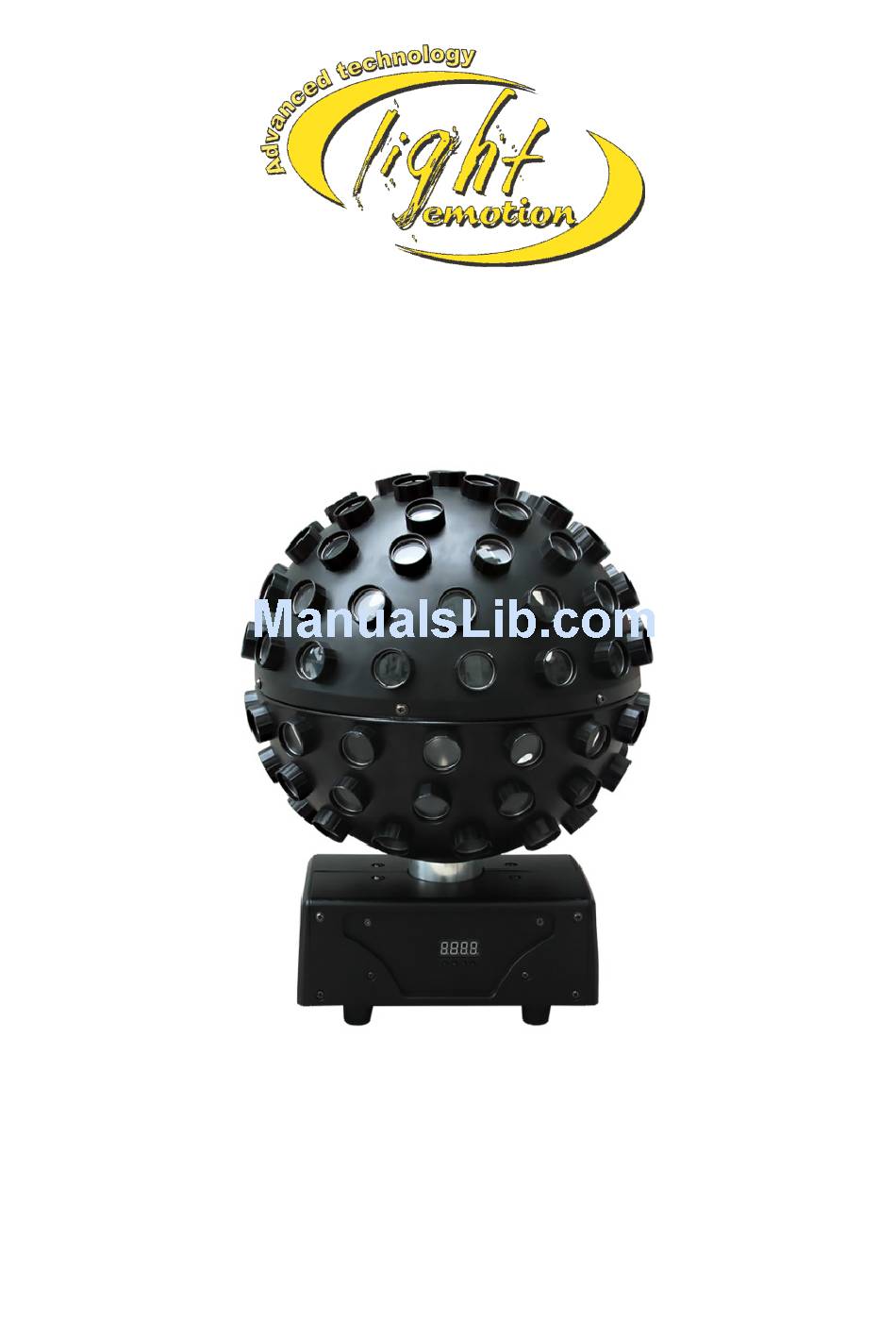

LED Rotating Ball with 5 x 15w HEX (6-in-1) LEDs.
User's instruction manual
This manual contains important information about the safe installation and use of this product
Please read this instruction manual carefully before installing or operating
Please keep these instructions in a safe place for future reference
V1.02
