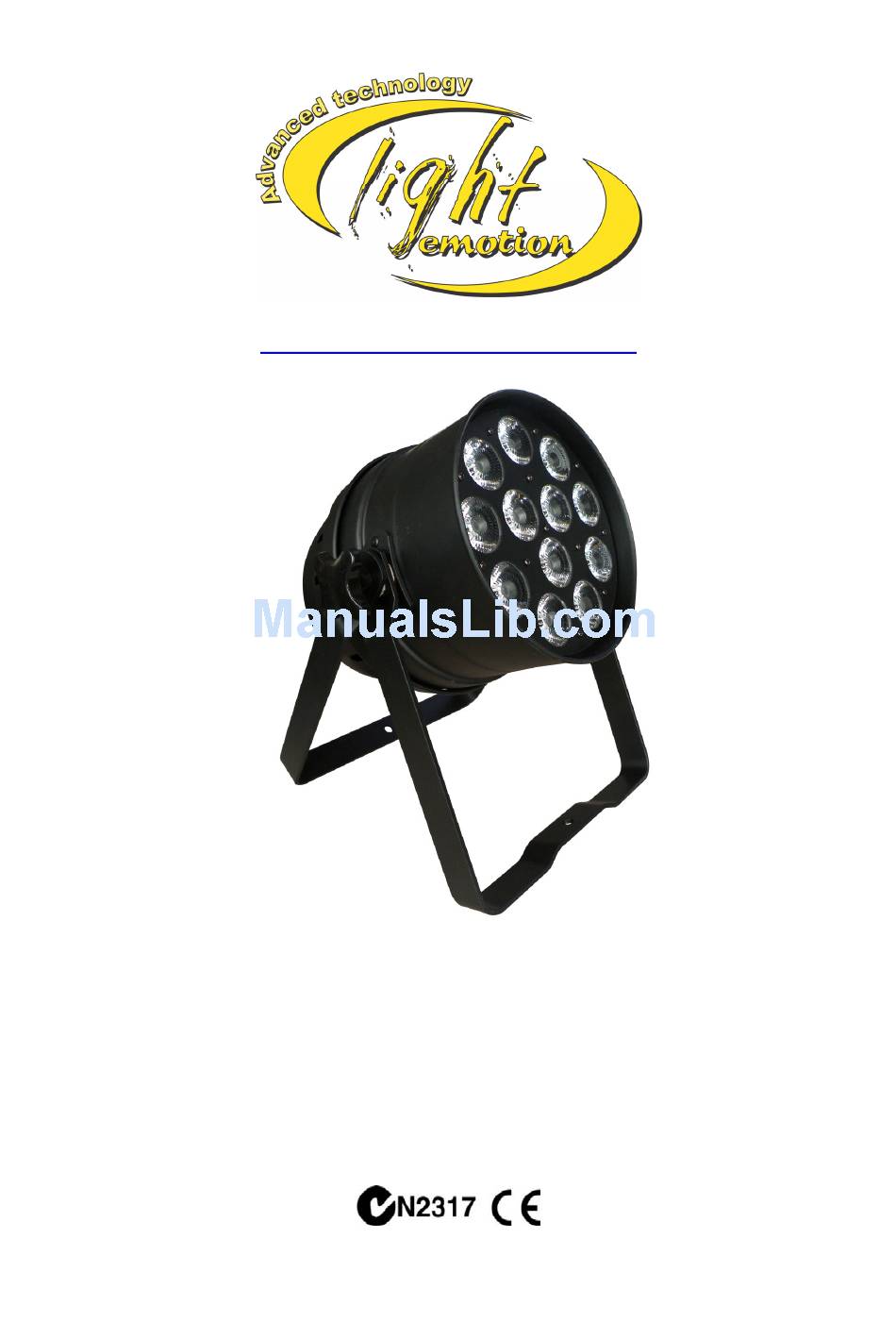

WWW.LIGHTEMOTION.COM.AU
P645QUADB2/P645QUADP2
12 x 4in1 5W LEDs. Black / Polished.
User's instruction manual
This manual contains important information about the safe installation and use of this product
Please read this instruction manual carefully before installing or operating
Please keep these instructions in a safe place for future reference

Advertisement

Table of Contents
loading

Related Manuals for Light Emotion P645QUADB2? P645QUADP2

Summary of Contents for Light Emotion P645QUADB2? P645QUADP2

  • Page 1 WWW.LIGHTEMOTION.COM.AU P645QUADB2/P645QUADP2 12 x 4in1 5W LEDs. Black / Polished. User’s instruction manual This manual contains important information about the safe installation and use of this product Please read this instruction manual carefully before installing or operating Please keep these instructions in a safe place for future reference...

  • Page 2: What Is Included

    Congratulations on the purchase of your P64QUADB2/P64QUADP2 by Light Emotion. We are confident that you will be satisfied with your purchase. We have prepared this manual to assist you with the care and operation of this item. This product uses 12 4in1 5W LEDs to produce vivid colours that the user can control in many ways.

  • Page 3: Installation

    POWER CAUTION: This lighting effect is designed to operate at 240V. Power Consumption: FUSE CAUTION: Only use the correct fuse as specified on the rear panel of the lighting effect. Disconnect the lighting effect from the mains before attempting to replace the fuse. To replace the fuse please follow the following steps: 1.

  • Page 4: Operation

    Light Emotion have various hook clamps* and safety wires* suitable for your P64LEDlite Please contact your local dealer for more information *Not included. MAINTENANCE & PERIODIC CHECKS CAUTION: Some maintenance and checks may require the product to be opened and should only be done by qualified persons.
  • Page 5 slowest, is fastest AUTO Auto run Set the unit into auto run mode mode set MODE Flash Adjust the auto run flash speed, flash off, is slowest, fastest SOUND Sensitivity Adjust the sensitivity of the sound-active, MODE select is sound-active off, is the lowest level, is the highest level...
  • Page 6 4. Colour dreaming mode Press "MODE" button, select the colour dreaming mode. There are two modes in the colour dreaming mode. You can select them by pressing the "SET UP" button. 1) Colour-dreaming speed set Press "SET UP" button until the display shows " ".
  • Page 7 8. DMX mode Press “MODE” button until the display is “ ”, then press UP or DOWN to set the DMX address 001-512. DMX MODE:7 DMX channels FUNCTION VALUE White Blue Green 0-255 0-255 0-255 0-255 0-13 No function (dim→ (dim→...

  • Page 8: Dmx Terminator

    DMX LEAD The DMX lead is used to link up multiple units. For Wiring connections refer to Fig 3. Fig 3 DMX TERMINATOR A DMX terminator helps to reduce ‘noise’ on the DMX chain, and makes the light respond to control more accurately. It should be plugged in to the last fixture in any chain. For Terminator connections refer to Fig 4 Fig 4 QUESTIONS...

  • Page 9: Specifications

    SPECIFICATIONS • Voltage: 240V AC • Power Consumption: 85W • Operating Frequency: 50Hz • Power lead: Fixed 1m • Fuse: M205 2.0A fast blow • Sound activated: Yes • Stand alone mode Yes • DMX: 7 channels • Ch1-4: R, G, B, W control. Ch 5: Dimming. Ch 6: Strobing. Ch 7: Effects. •...
