Apantac HDBT-SET-1 User Manual

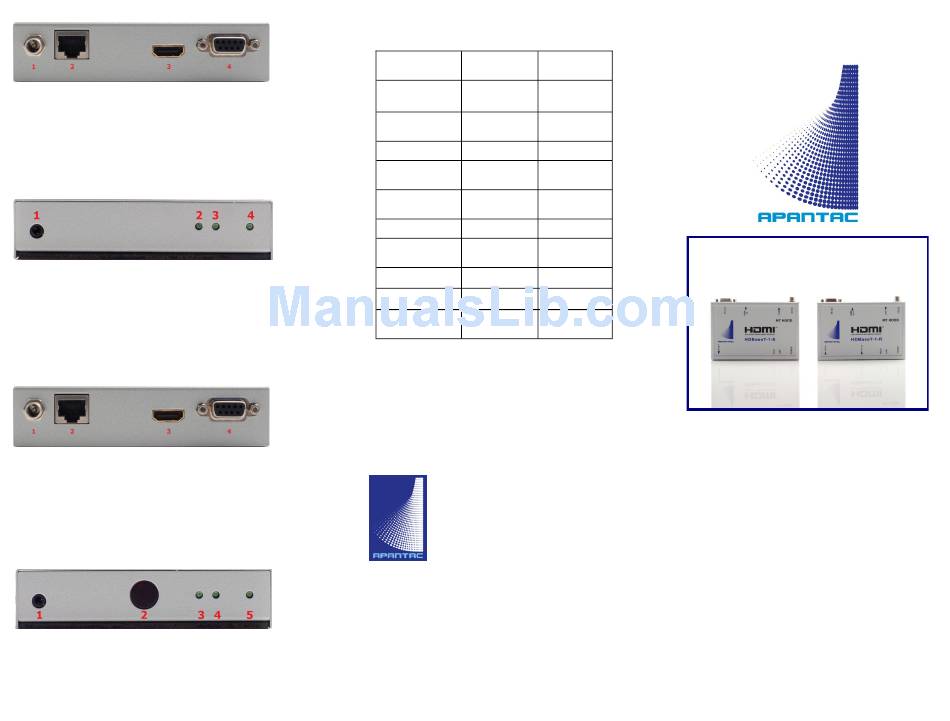

HDBT-1-E FRONT VIEW
1. DC 12 V Input w/ Locking
2. LINK OUT (RJ45)
3. HDMI Input
4. RS232 Input
HDBT-1-E REAR VIEW
1. IR Output
2. HDCP Indicator
3. LINK Indicator
4. POWER Indicator
HDBT-1-R FRONT VIEW
1. DC 12 V Input w/ Locking
2. LINK IN (RJ45)
3. HDMI Output
4. RS232 Output
HDBT-1-R REAR VIEW
1. IR Input
2. IR Input
3. HDCP Indicator
4. LINK Indicator
5. POWER Indicator

Specifications

FEATURES/ HDBT-1-E HDBT-1-R
MODEL
HDMI In 1 x HDMI A-
Type Female
HDMI Out 1 x HDMI A-
Type Female
RJ-45 1
IR OUT 3.5 mm phone
jack
IR IN None
phone jack
Max Resolution 1080p 60Hz 1080p 60Hz
Cable Distance 100 meters 100 meters
(Max)
Power Adapter 12 V DC
Weight g) 310g
Dimension 150 W x 80 x 150 W x 80 x
(mm) D 25 H
© 2012 APANTAC LLC, All rights reserved
7556 SW BRIDGEPORT ROAD
PORTLAND, OR 97224, USA
PHONE +1 503 968 3000
FAX +1 503 389 7921
The content of this document is provided in connection
with Apantac LLC ("Apantac") products.
makes no representation or warranties with respect to
the accuracy or completeness of the contents of this
publication and reserves the right to make changes to
specifications and product descriptions at any time
without notice.
None
1
None
3.5 mm
(Max)
12 V DC
310g
D 25 H
HDBT-SET-1
USER MANUAL
HDMI Extender/Receiver
HDBaseT Technology
Apantac
based on
