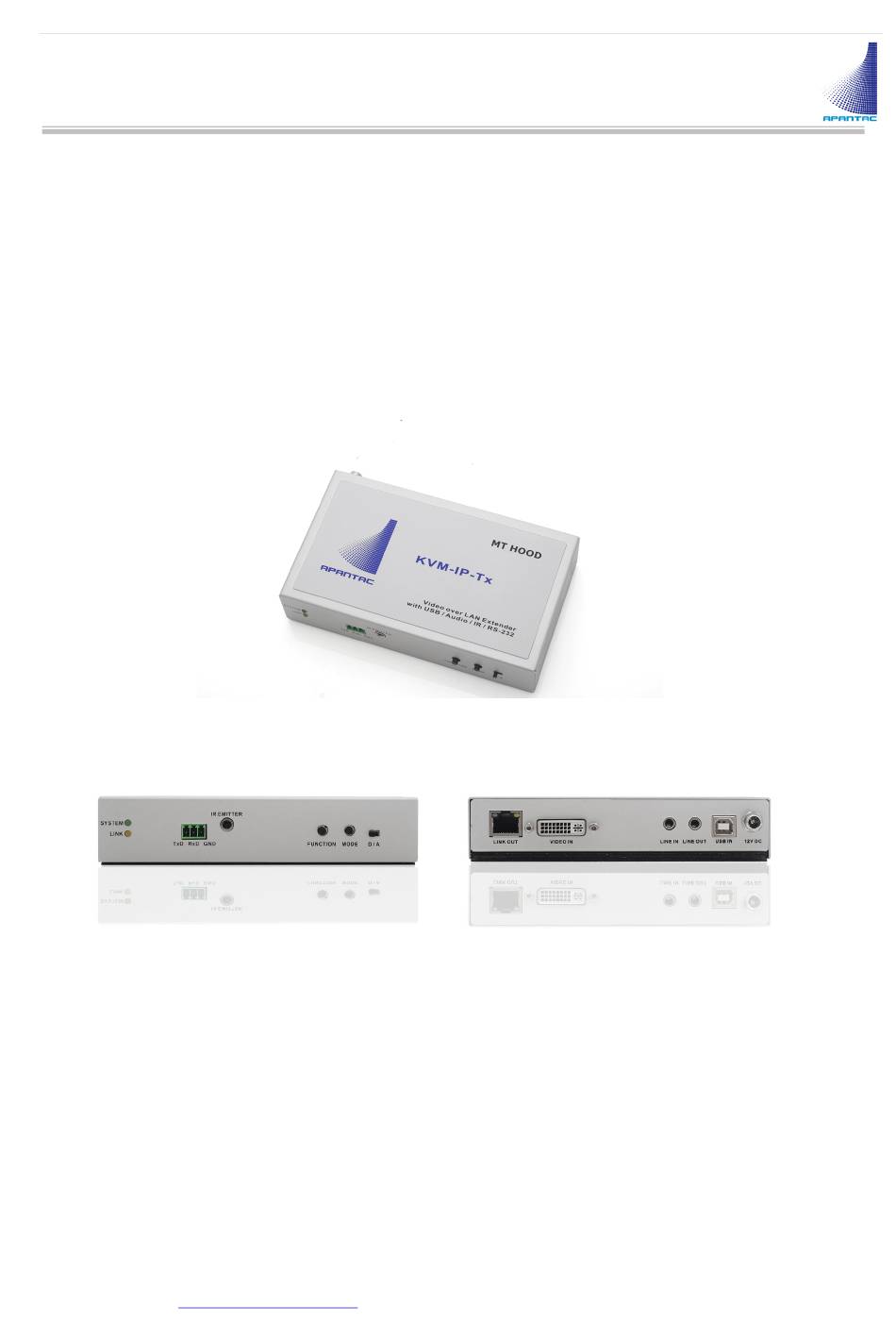

- Page 1 KVM-IP-Tx/Rx KVM-IP-Tx/Rx (KVM-SET-12-II) User Manual v1.0 APANTAC LLC, 10200 SW ALLEN BLVD, STE C, BEAVERTON, OR 97005, USA INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
- Page 2 KVM-IP-Tx/Rx COPYRIGHT and TRADEMARK All rights reserved by APANTAC LLC, Portland, Oregon, USA. No part of this document may be reproduced in any form or by any means without written permission from the product manufacturer. Changes are periodically made to the information in this document. They will be incorporated in subsequent editions.
- Page 3 Caused by improper use of the Product or inadequate maintenance and care of the Product; b) Resulting from attempts by those other than Apantac representatives to install, repair, or service the Product; c) Caused by installation of the Product in a hostile operating environment or connection of the Product to incompatible equipment;...
-
Page 4: Table Of Contents
USB and KM over IP Installation ................19 Rx OSD Main Menu ....................20 Rx OSD Transmitter List ..................21 APANTAC LLC, 10200 SW ALLEN BLVD, STE C, BEAVERTON, OR 97005 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921... -
Page 5: What's In The Box (When Sold In Pairs)
KVM-1-EH-LAN 2.0 Key Features – KVM-IP-Tx/Rx are based on Gigbit Ethernet (IGMP and Jumbo frame) technology – Supports up to 170 meters point to point with CAT6 cables – Supports up to 100 meters when using with a GigE Switch –... -
Page 6: Specifications
3-pin Pheonix Terminal Block / up to 115,200 bps / Full Duplex Video Resolution (Max.) HDMI/VGA: 1920x1080@60Hz / DVI: 1920X1200@60Hz APANTAC LLC, 10200 SW ALLEN BLVD, STE C, BEAVERTON, OR 97005 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921... -
Page 7: Default Settings
The above bandwidth chart does not include USB transmission, it consumes up to 50 Mbps when USB mass storage data is transmitted. APANTAC LLC, 10200 SW ALLEN BLVD, STE C, BEAVERTON, OR 97005 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921... -
Page 8: Front/Rear Views
• D/A switch - Digital to Analog Signal Switch (HDMI/DVI to VGA) • LINK OUT • VIDEO IN APANTAC LLC, 10200 SW ALLEN BLVD, STE C, BEAVERTON, OR 97005 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921... - Page 9 Anti-Dither to achieve the better video quality. • Press and Hold and Power ON until Green and Amber LED blinking - Retreive EDID APANTAC LLC, 10200 SW ALLEN BLVD, STE C, BEAVERTON, OR 97005 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
-
Page 10: Installation
• MIC IN • LINE OUT • Power Jack (DC 12V 1A) 3.0 Installation Fig 1: Point to Point APANTAC LLC, 10200 SW ALLEN BLVD, STE C, BEAVERTON, OR 97005 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921... - Page 11 KVM-IP-Tx/Rx Fig 2: Multiple point to Point APANTAC LLC, 10200 SW ALLEN BLVD, STE C, BEAVERTON, OR 97005 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
- Page 12 KVM-IP-Tx/Rx Fig 3: Multi-point to mult-point APANTAC LLC, 10200 SW ALLEN BLVD, STE C, BEAVERTON, OR 97005 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
-
Page 13: Operation
5. You can double click each TX and RX to display the detail information and modify the settings as below: APANTAC LLC, 10200 SW ALLEN BLVD, STE C, BEAVERTON, OR 97005 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921... -
Page 14: Configuration
2. Open Browser then enter TX/RX IP: 10.xx.xx.xx 3. The TX/RX Operation Mode Web page are shown as the below APANTAC LLC, 10200 SW ALLEN BLVD, STE C, BEAVERTON, OR 97005 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921... -
Page 15: System Configuration
[IP Setup] select Auto IP, DHCP, Static enter device IP, Subnet Mask, Default Gateway [Apply]. APANTAC LLC, 10200 SW ALLEN BLVD, STE C, BEAVERTON, OR 97005 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921... - Page 16 Web page [Network] [Jumbo Frame] Enable/Disable [Apply] the unit will save the setting and reboot automatically. (Default Enable) APANTAC LLC, 10200 SW ALLEN BLVD, STE C, BEAVERTON, OR 97005 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
-
Page 17: Function Configuration
【To Enable/Disable USB over IP】(TX/RX) Enter TX Operation Mode Web page [Functions] [USB over IP] APANTAC LLC, 10200 SW ALLEN BLVD, STE C, BEAVERTON, OR 97005 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921... - Page 18 IP] [Baud rate Setting for Type 2] select Baud rate, Data bits, Parity, Stop bits. (Default 115200, 8-n-1) APANTAC LLC, 10200 SW ALLEN BLVD, STE C, BEAVERTON, OR 97005 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
-
Page 19: Installation
RXs to display the same TX as a splitter. Installation 1. By factory default, the KVM-IP-Tx/Rx is pre-configured with Unicast, Direct Connection and Jumbo Frame. It is configured for one-to-one as pairing connection. The maximum distance between TX and RX is 170 meters by using CAT6/6a or CAT7 cable. -
Page 20: Usb And Km Over Ip Installation
Press “U” key to toggle during Transmitter List OSD menu. The RX display “Requesting USB” to indicate starting USB-over-IP APANTAC LLC, 10200 SW ALLEN BLVD, STE C, BEAVERTON, OR 97005 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921... -
Page 21: Rx Osd Main Menu
Sub-Menu only provide selection, the Multicast IP or TX IP can only be changed by the Web page setting. APANTAC LLC, 10200 SW ALLEN BLVD, STE C, BEAVERTON, OR 97005 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921... -
Page 22: Rx Osd Transmitter List
2. Press F5 to refresh Transmitter List. 3. Press U to request (or release) USB-over-IP. 4. To end of OSD, press <ESC> APANTAC LLC, 10200 SW ALLEN BLVD, STE C, BEAVERTON, OR 97005 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
