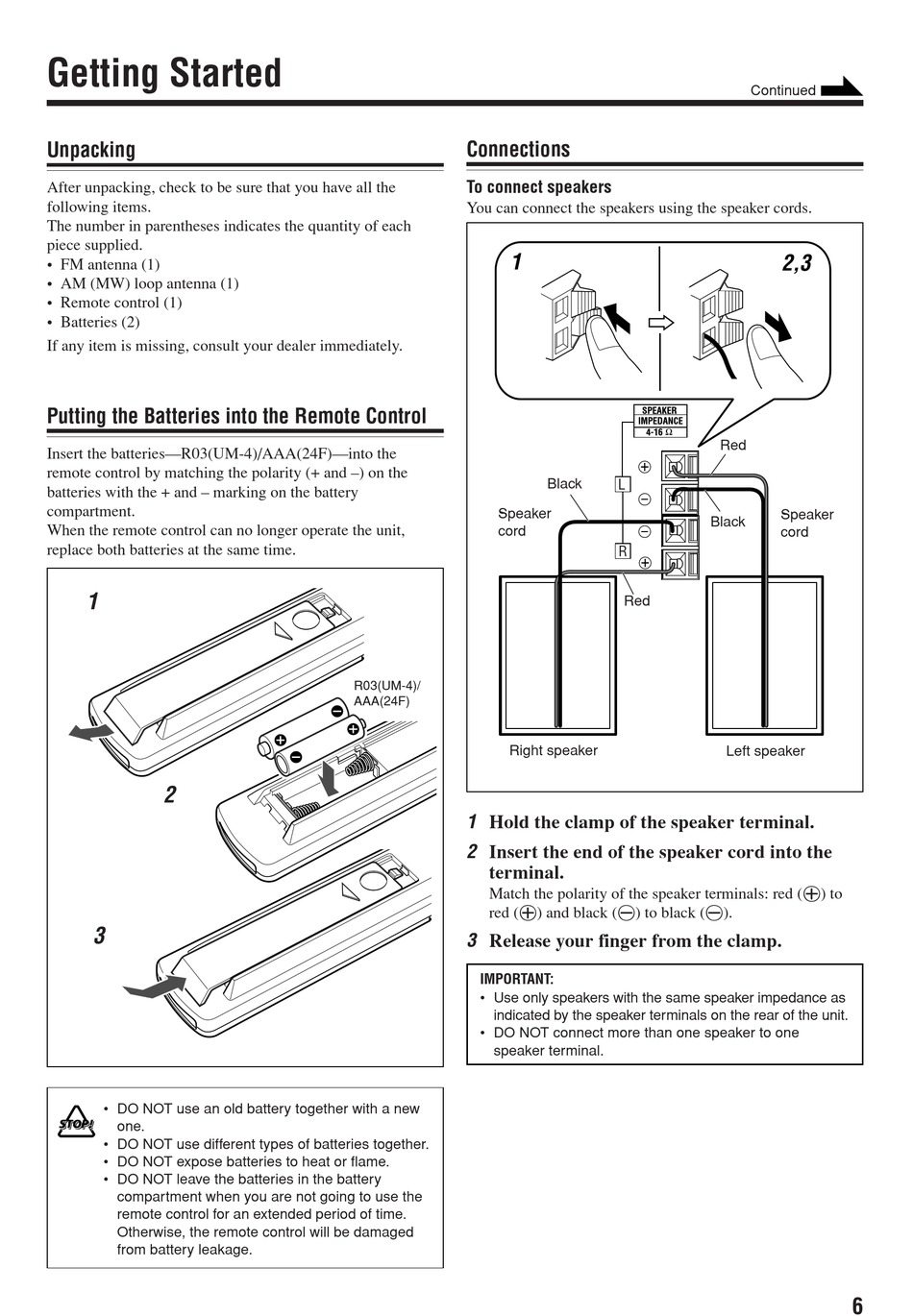

Getting Started

Unpacking

After unpacking, check to be sure that you have all the
following items.
The number in parentheses indicates the quantity of each
piece supplied.
• FM antenna (1)
• AM (MW) loop antenna (1)
• Remote control (1)
• Batteries (2)
If any item is missing, consult your dealer immediately.

Putting the Batteries into the Remote Control

Insert the batteries—R03(UM-4)/AAA(24F)—into the
remote control by matching the polarity (+ and –) on the
batteries with the + and – marking on the battery
compartment.
When the remote control can no longer operate the unit,
replace both batteries at the same time.
1
2
3
• DO NOT use an old battery together with a new
one.
• DO NOT use different types of batteries together.
• DO NOT expose batteries to heat or flame.
• DO NOT leave the batteries in the battery
compartment when you are not going to use the
remote control for an extended period of time.
Otherwise, the remote control will be damaged
from battery leakage.

Connections

To connect speakers
You can connect the speakers using the speaker cords.
1
Speaker
cord
R03(UM-4)/
AAA(24F)
Right speaker
1 Hold the clamp of the speaker terminal.
2 Insert the end of the speaker cord into the
terminal.
Match the polarity of the speaker terminals: red (ª) to
red (ª) and black (·) to black (·).
3 Release your finger from the clamp.
IMPORTANT:
• Use only speakers with the same speaker impedance as
indicated by the speaker terminals on the rear of the unit.
• DO NOT connect more than one speaker to one
speaker terminal.
SPEAKER
IMPEDANCE
4-16 Ω
Red
Black
L
Black
R
Red
Continued
2,3
Speaker
cord
Left speaker
6
