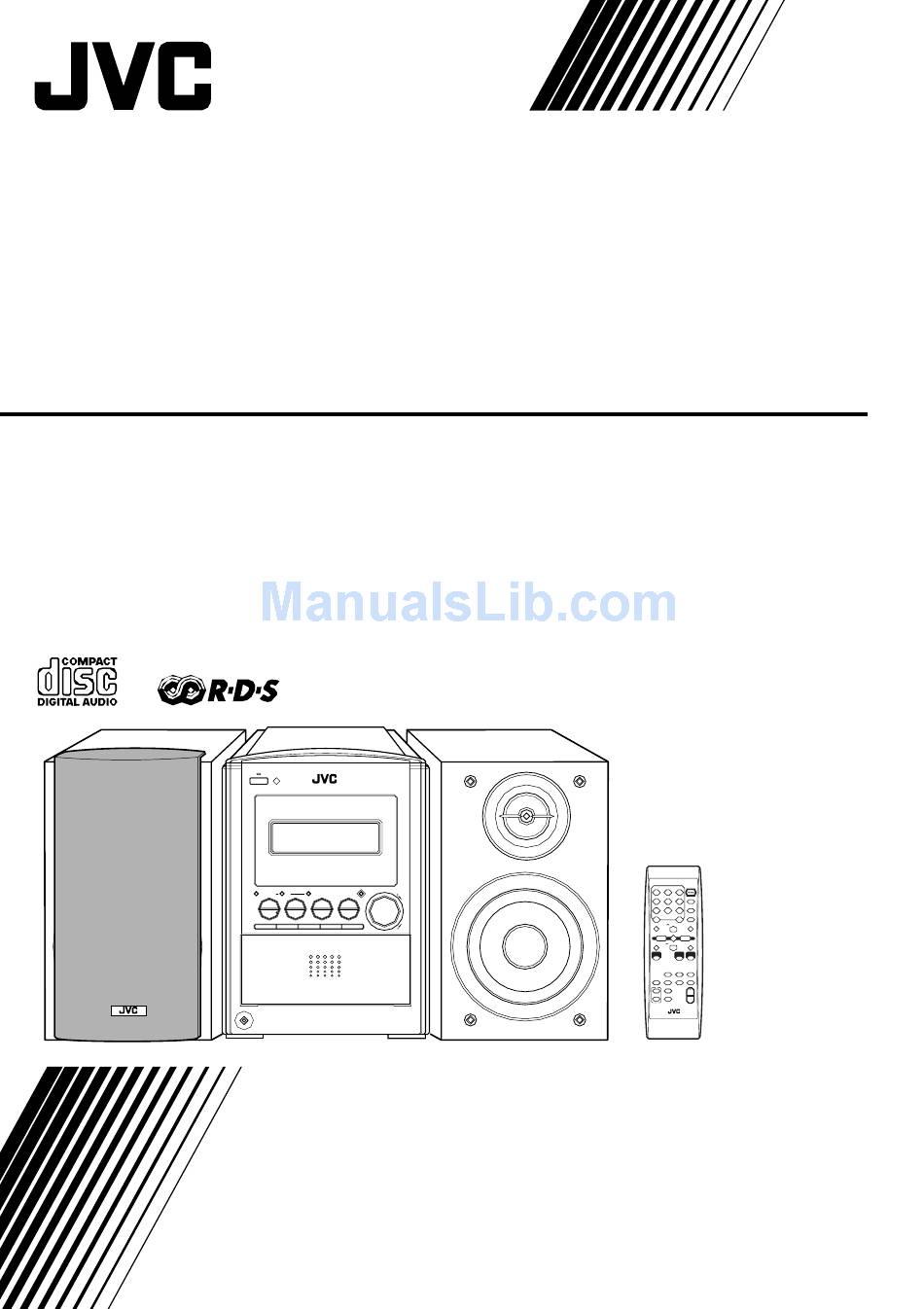

MICRO COMPONENT SYSTEM
UX-S57
—Consists of CA-UXS57 and SP-UXS57
5-CD CHANGER, PLAY & EXCHANGE
VOLUME
AHB PRO
DISC
PLAY
SELECT
MODE
AUX/DVD
TREBLE
REPEAT
FM/AM
BASS
CD
CD1
CD2
CD3
CD4
CD5
5-CD CHANGER, PLAY&EXCHANGE
PHONES
INSTRUCTIONS
STANDBY/ON
1
2
3
4
5
6
DISPLAY
7
8
9
CLOCK/
TIMER
10
+10
SLEEP
BASS
DISC UP
TREBLE
SET
DISC DOWN
CANCEL
PLAY
FM
REPEAT
MODE
MODE
PTY
SEARCH
A.STANDBY
DIMMER
AHB PRO
RDS
DISPLAY
PTY
TA/News
SELECT
/Info
VOLUME
RM-SUXS57R REMOTE CONTROL
GVT0134-003A
[B]

Advertisement

Table of Contents
loading

Related Manuals for JVC UX-S57

Summary of Contents for JVC UX-S57

  • Page 1 MICRO COMPONENT SYSTEM UX-S57 DISC SELECT PHONES INSTRUCTIONS —Consists of CA-UXS57 and SP-UXS57 5-CD CHANGER, PLAY & EXCHANGE VOLUME AHB PRO PLAY MODE AUX/DVD TREBLE REPEAT FM/AM BASS 5-CD CHANGER, PLAY&EXCHANGE STANDBY/ON DISPLAY CLOCK/ TIMER SLEEP BASS DISC UP TREBLE...
  • Page 2 IMPORTANT for the U.K. DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.

  • Page 3: Safety Instructions

    “SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT” This equipment has been designed and manufactured to meet international safety standards, but like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. ✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮...
  • Page 4 Introduction We would like to thank you for purchasing one of our JVC products. Before operating this unit, read this manual carefully and thoroughly to obtain the best possible performance from your unit, and retain this manual About This Manual This manual is organized as follows: •...

  • Page 5: Table Of Contents

    Contents Location of the Buttons and Controls ... 3 Front Panel ... 3 Remote Control ... 5 Getting Started ... 6 Unpacking ... 6 Connecting Antennas ... 6 Connecting Speakers ... 7 Connecting Other Equipment ... 8 Putting the Batteries into the Remote Control ... 8 Basic and Common Operations ...

  • Page 6: Location Of The Buttons And Controls

    Location of the Buttons and Controls Become familiar with the buttons and controls on your unit. Front Panel Front panel See pages in parentheses for details. (standby/on) button and STANDBY/ON lamp (10, 21) 2 Remote sensor (5) 3 Display window (4) 4 AUX/DVD button (10) •...
  • Page 7 Display window on the front panel PRGM RANDOM Display window See pages in parentheses for details. 1 CD indicator (17) 2 Disc indicators (17) 3 Disc play mode indicators (20, 21) • PRGM (program), RANDOM, and Repeat mode ( , 4 AUTO STANDBY indicator (10) (Active Hyper Bass Pro) indicator (11) AHB PRO...

  • Page 8: Remote Control

    Location of the Buttons and Controls Remote Control See pages in parentheses for details. STANDBY/ON DISC UP BASS DISC DOWN FM/AM PLAY REPEAT MODE SEARCH A.STANDBY DIMMER DISPLAY TA/News SELECT /Info VOLUME RM-SUXS57R REMOTE CONTROL When using the remote control, point it at the remote sensor on the front panel.

  • Page 9: Getting Started

    Getting Started Unpacking After unpacking, check to be sure that you have all the following items. The number in parentheses indicates the quantity of each piece supplied. • FM antenna (1) • AM (MW) loop antenna (1) • Remote control (1) •...

  • Page 10: Connecting Speakers

    Getting Started AM (MW) antenna ANTENNA Vinyl-covered wire (not supplied) AM (MW) loop antenna (supplied) 1 Connect the AM (MW) loop antenna to the AM LOOP terminals as illustrated. 2 Turn the AM (MW) loop antenna until you have the best reception. To connect an outdoor AM (MW) antenna When reception is poor, connect a single vinyl-covered wire to the AM EXT terminal and extend it horizontally.

  • Page 11: Connecting Other Equipment

    Do not connect the AC power cord until all other connections have been made. To remove the speaker grilles The speaker grilles are removable as illustrated below: Holes To remove the speaker grille, insert your fingers at the top of the speaker grille, then pull towards you. Also pull the bottom towards you.

  • Page 12: Basic And Common Operations

    Basic and Common Operations Setting the Clock Before operating the unit any further, first set the unit’s clock. When you plug in the power cord, “0:00” starts flashing on the display. You can set the clock when the unit is either turned on or in standby mode.

  • Page 13: Turning On The Power

    Turning On the Power To turn on the unit, press STANDBY/ON on the unit). The STANDBY/ON lamp on the unit lights green. • When you press the source button—3/8 CD, FM/AM and AUX (or AUX/DVD on the unit), the unit automatically turns on and starts playback if the source is ready.

  • Page 14: Adjusting The Volume

    Basic and Common Operations Adjusting the Volume You can adjust the volume level only while the unit is turned on. The volume level can be adjusted between “VOLUME MIN” and “VOLUME 1” – “VOLUME 40 (VOLUME MAX).” On the remote control: To increase the volume, press VOLUME +.

  • Page 15: Adjusting The Tone

    Adjusting the Tone You can adjust the bass level (low frequency range) and the treble level (high frequency range) within a range of “–5” to “+5.” When shipped, each level is set to “+2.” • This function also affects the sound from headphones. •...

  • Page 16: Listening To Fm And Am (Mw) Broadcasts

    Listening to FM and AM (MW) Broadcasts Tuning in to a Station Press FM/AM to select either “FM” or “AM.” The unit automatically turns on and tunes in to the previously received station—either FM or AM (MW). • Each time you press the button, the band alternates between FM and AM (MW).

  • Page 17: Tuning In To A Preset Station

    Press SET again. “STORED” appears on the display for a while. The tuned station in step 1 is stored in the preset number selected in step 3 . • Storing a new station on an already assigned number erases the previously stored one. When you unplug the AC power cord or if a power failure occurs The FM and AM (MW) preset stations will be erased in a day.

  • Page 18: Receiving Fm Stations With Rds

    Receiving FM Stations with RDS RDS (Radio Data System) allows FM stations to send an additional signal along with their regular program signals. For example, the stations send their station names, as well as information about what type of program they broadcast, such as sports or music, etc.

  • Page 19: Switching Temporarily To A Program Type Of Your Choice

    Switching Temporarily to a Program Type of Your Choice The Enhanced Other Networks function allows the unit to switch temporarily to a broadcast program of your choice (TA, News, and Info) from a different station. • The function only works when you are listening to a preset FM RDS stations providing the data.

  • Page 20: Playing Back Discs On The 5-Cd Changer

    Playing Back Discs on the 5-CD Changer This unit has been designed to play back the following discs—CD, CD-R, and CD-RW. You can play back the discs containing the tracks in music CD format or MP3 files in ISO 9660 format. •...

  • Page 21: Playing Back All The Entire Discs-Continuous Play

    Playing Back All the Entire Discs —Continuous Play You can play discs continuously. Load discs into the 5-CD Changer. Select a disc to play. On the remote control: 1) Press 3/8 CD, then 7. 2) Press DISC UP or DISC DOWN to select the disc you want.

  • Page 22: Basic Disc Operations

    Playing Back Discs on the 5-CD Changer Basic Disc Operations To exchange a disc during playback of another disc On the unit ONLY: Press the disc eject buttons (CD10 – CD50) to eject a disc not currently playing. If discs are exchanged during playback, playback will stop after playing all newly inserted discs.

  • Page 23: Programing The Track Playing Order-Program Play

    Programing the Track Playing Order —Program Play You can arrange the order in which the tracks play before you start playing. You can program up to 100 tracks. Load discs into the 5-CD Changer. • If the current playing source is not “CD,” press 3/8 CD, then 7 before going to the next step.

  • Page 24: Playing At Random-Random Play

    Playing Back Discs on the 5-CD Changer Playing at Random—Random Play The tracks of all loaded discs will play at random. Load discs into the 5-CD Changer. • If the current playing source is not “CD,” press 3/8 CD, then 7 before going to the next step. Press PLAY MODE repeatedly until “CD RANDOM”...

  • Page 25: Using The Timers

    Using the Timers Two timers are available—Daily Timer and Sleep Timer. • Before using these timers, make sure the built-in clock is set correctly (see page 9). Using the Daily Timer You can set the timer when the unit is either turned on or in standby mode.
  • Page 26 Using the Timers Press DISC UP or DISC DOWN to select the timer mode and the source to play, then press CLOCK/TIMER. • Each time you press DISC UP or DISC DOWN, the timer mode and the source to play change as follows: DAILY TIMER DAILY TIMER TUNER...

  • Page 27: Using The Sleep Timer

    Using the Sleep Timer With the Sleep Timer, you can fall asleep listening to your favorite music or radio program. • You can set the Sleep Timer only when the unit is turned How the Sleep Timer actually works The unit automatically turns off after the specified length of time passes.

  • Page 28: Maintenance

    Maintenance To get the best performance of the unit, keep your discs clean. General Notes In general, you will have the best performance by keeping your discs clean. • Store discs in their cases, and keep them in cabinets or on shelves.

  • Page 29: Troubleshooting

    Troubleshooting If you are having a problem with your unit, check this list for a possible solution before calling for service. If you cannot solve the problem from the hints given here, or the unit has been physically damaged, call a qualified person, such as your dealer, for service.

  • Page 30: Additional Information

    Additional Information Description of the PTY codes: NEWS: News. AFFAIRS: Topical program expanding or enlarging upon the news—debate, or analysis. INFO: Program the purpose of which is to impart advice in the widest sense. SPORT: Program concerned with any aspect of sports. EDUCATE: Educational programs.

  • Page 31: Specifications

    Specifications Amplifier Section—CA-UXS57 Output Power (IEC 268-3): 120 W (60 W + 60 W) at 6 Ω (10% THD) Analog input sensitivity/Impedance (at 1 kHz) AUX/DVD: 400 mV/48 kΩ 6 Ω – 16 Ω Speakers/Impedance: Tuner FM tuning range: 87.50 MHz—108.00 MHz AM (MW) tuning range: 522 kHz—1 629 kHz CD player CD Capacity:...
  • Page 32 VICTOR COMPANY OF JAPAN, LIMITED 0304AIMMDWJEM © 2004 VICTOR COMPANY OF JAPAN, LIMITED...
