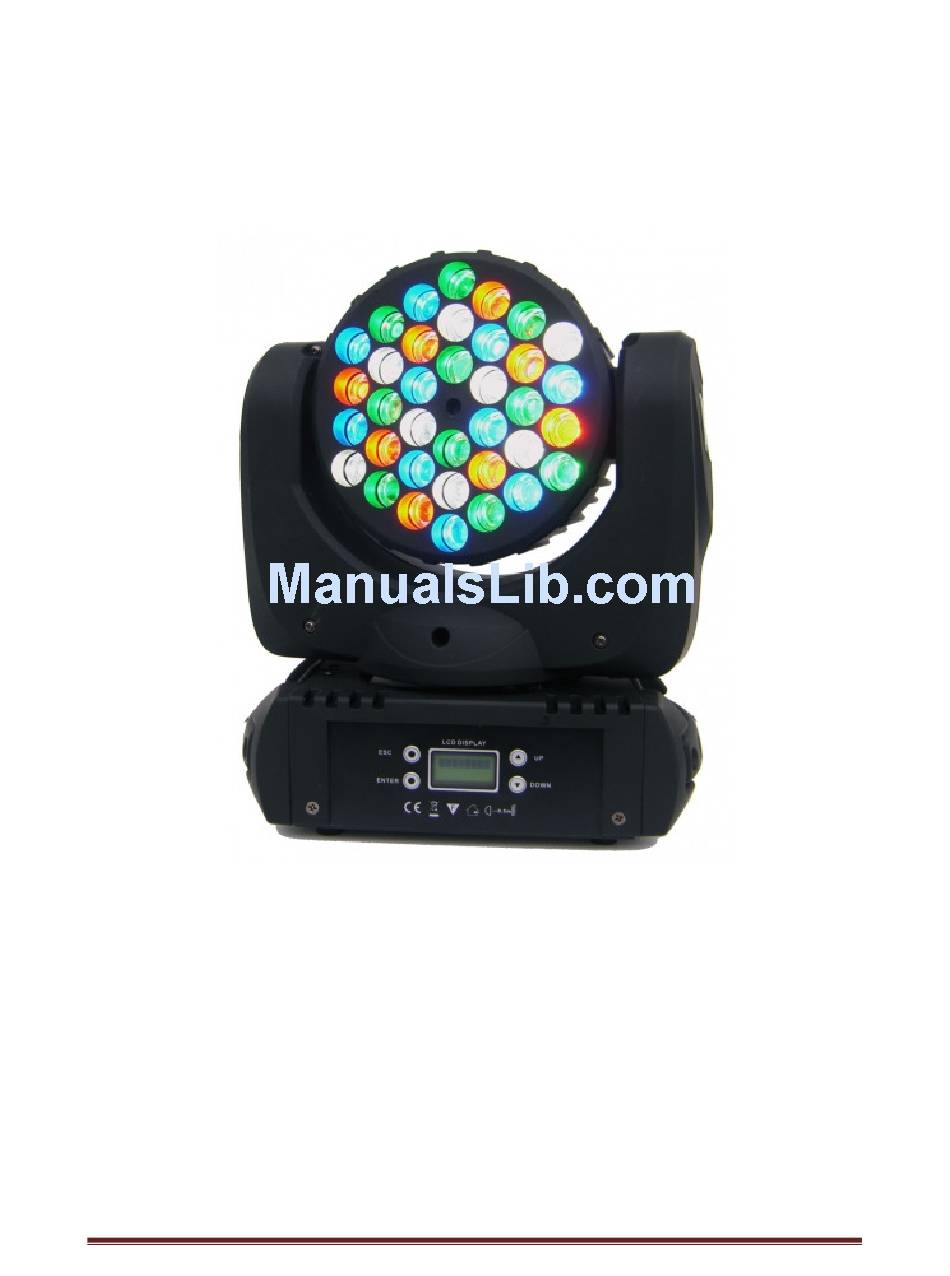

LED BEAM MOVING HEAD FL-101 36x3W User Manual www.flash-butrym.pl Page 1... - Page 2 1. Preface 1.1 Packing list Product name quantity moving head light 1 pcs Power -line 1 base User manual 1 pcs 1.2 Unpacking instructions On receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are presented, and have been received in a good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows,sign of mishandling.
- Page 3 1.4 Safety instructions Please read these instructions CV, it includes important information about the installation, usage and maintenance of this product. Please keep this user guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Always make sure that you are connecting to the proper voltage, and that the line voltage you are connecting to is not higher than that stated on the decal or rear panel of the fixture.
- Page 4 2. Technical Specification • Extremely small, fast and powerful LED Moving Beam, • DMX Channels: 9/12/16CH • Pan/ Tilt: 650*/ 240* speed adjustable • Smooth electronic dimming: 0-100% • Electronic strobe with pulse and random effects • High efficiency, low power consumption •...
- Page 5 will blink. Use DOWN and UP buton to change the mode. Once the required mode has been selected, press the ENTER buton to setup, to go back to the functions whitout any change press the MENU buton again. Hold and press the MENU buton about one secondo or wait for one minute to exit the menu mode.
- Page 6 DMX Address Select DMX Address, press the ENTER buton to confirm, the present address will blink on the display. Use the UP and DOWN buton to adjust the address from 1 to 512. Once the address has been selected, press the ENTER buton to setup, to go back to the functions without any change press the MENU buton again.
- Page 7 press the MENU buton about one secondo or wait for one minute to exit the menu mode. Sound Sense Select Sound Sense, Press the ENTER buton to confirm, present mode will blink on the display. Use the DOWN and UP buton to select the 0…1000 mode. Once the mode has been selected, press the ENTER buton to setup, to go back to the functions without any change press the MENU buton again.
- Page 8 White Balance Select White Balance, press the ENTER buton to confirm, present mode will blink on the display. Use DOWN and UP buton to select the Red or Green or Blue. Once the mode has been selected, press the ENTER buton to setup, use the DOWN and UP buton to change the value (125~255).
- Page 9 • Back Light – Off • Function Delay – 3s Delay Auto Defaults: Mostly automatic mode, for non professional users, detailed explanation as followings: • Slave Mode – Slave 1 • Black Out – No • Sound State – On •...
-
Page 10: Dmx Controller
„M108RGBW” on the display and move all the motors to their „HOME” position and you may hear some noises for about 20 seconds. After that the unit will be ready to receive DMX signal or run the built in programs. 7. - Page 11 000-255 Strobe 000-255 RED (0%-100%) 000-255 GREEN (0%-100%) 000-255 BLUE (0%-1000%) 000-255 WHITE (0%-100%) 000-255 Dimmer (0%-100%) 000-255 Sound Active 12 Channel Mode: Channel List Value Function 000-255 Strobe Effect 000-255 Dimmer (0%-100%) 000-255 Pan (0-630*) Pan Fine (Least significant 000-255 bit) 000-255...
- Page 12 10. DMX512 Connection 1. If you usign a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable. 2. At last unit, the DMX cable has be terminated with a terminator. Solder a 120ohm 1/4W resistor between pin 2(DMX - ) and pin 3(DMX +) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.
- Page 13 • You may have a break in the DMX cabling. Check the LED for the response of the Master/ Slave mode signal. • Wrong DMX address in the unit. Set the proper address. D. No response to the sound • Make sur the unit dose not receive DMX Signal •...
