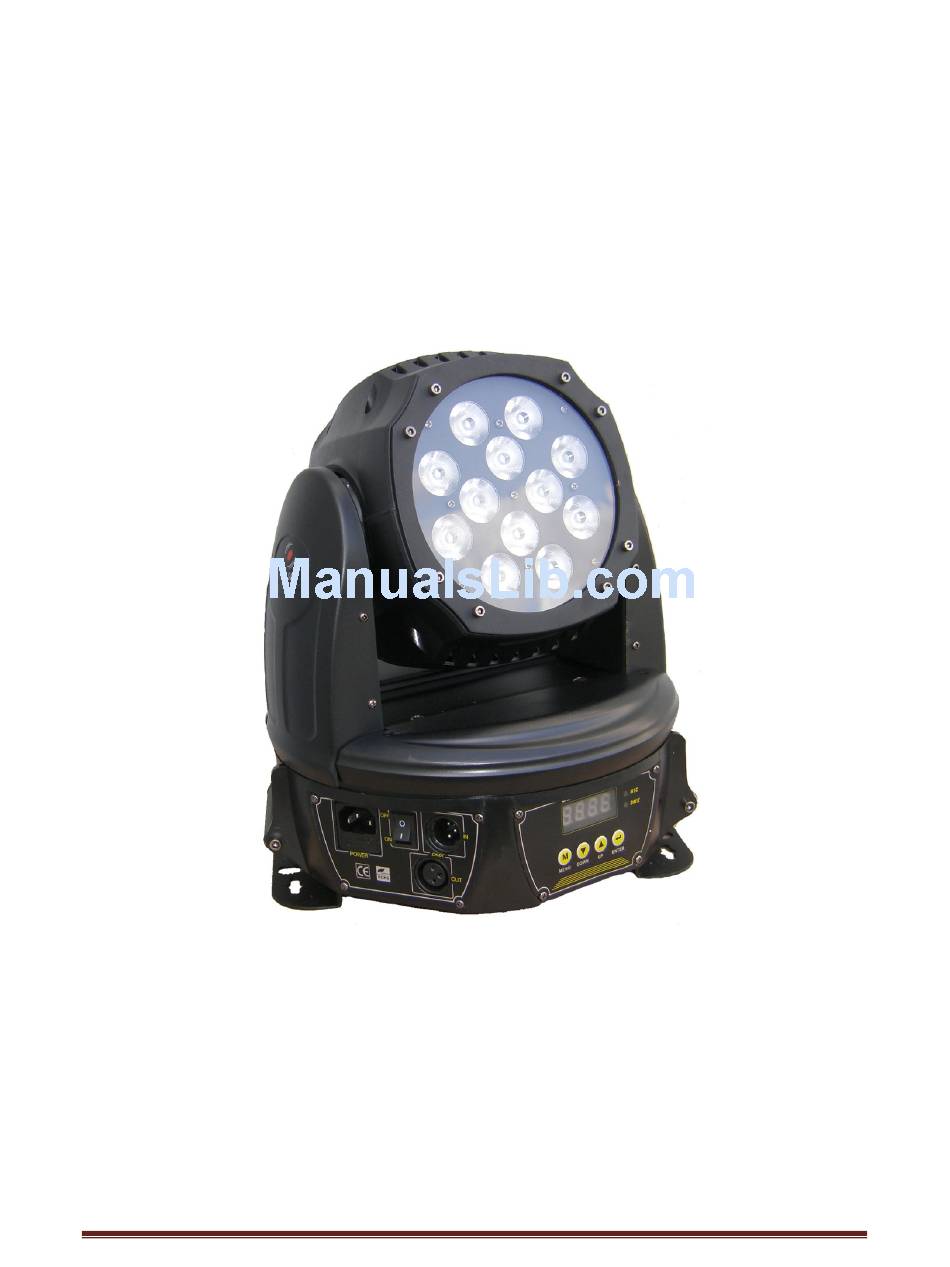

LED MOVING HEAD 144W WASH 4in1
RGBW
User Manual
www.flash-butrym.pl
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED MOVING HEAD 144W WASH and is the answer not in the manual?

Questions and answers

Related Manuals for Flash butrym LED MOVING HEAD 144W WASH

Summary of Contents for Flash butrym LED MOVING HEAD 144W WASH

  • Page 1 LED MOVING HEAD 144W WASH 4in1 RGBW User Manual www.flash-butrym.pl Page 1...

  • Page 2: Table Of Contents

    Table of contents 1. Preface 1.1 Packing list 1.2 Unpacking instructions 1.3 AC Power 1.4 Safety instructions 2. Introduction 2.1 Features 2.2 DMX channel 3. Setup 3.1 Fuse replacement 3.2 Fixture linking Data cabling DMX data cable 3.3 3-Pin to 5-Pin conversion chart 3.4 Setting up a DMX serial data link 3.5 Master/Slave fixture linking 3.6 orientation...

  • Page 3: Preface

    1. Preface 1.1 Packing list Product name quantity Mini Moving Head Light 1 pcs Unser Manual 1pcs 1.2 Unpacking instructions On receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are presented, and have been received in a good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows, sign of mishandling.

  • Page 4: Introduction

    Maximum ambient temperature (Ta) is 104℉ (40℃ ). Do not operate fixture at temperature higher than this. In the event of a serious operating problem, stop using the unit immediately. Never try to repair the unit by yourself. Repairs carried out by unskilled people will lead to damage or malfunction.

  • Page 5: Fixture Linking

    support. Maximum recommended serial data link distance:500 meters(1640ft). Maximum recommended number of fixtures on a serial data link:32 fixtures. Data cabling To link fixtures together you must obtain data cables. If you choose to create your own cable please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference.

  • Page 6: Orientation

    input of the following fixture and so on. 3.6 orientation This fixture may be mounted in any position provided there is adequate room for ventilation. 4. Operating instructions 4.1 Navigating the control panel Access control panel functions using the four panel buttons located directly under the LCD Display.

  • Page 7: Setup Single-Desk Light`s Autocephaly Moving Mode(Sound Control)

    Setup single-desk light`s autocephaly moving mode(sound control) .Press the MENU button until it shows SNOF . .Use the UP/DOWN buttons to set to SNOF,press ENTER to confirm. Master/slave mode(auto-running、 、 、 、 sound control) .This mode will allow you to link up 32 units together without a controller. .Use standard DMX cables to daisy chain your units together via the DMX connector on the rear of the units.Proper performance it may be necessary to use a terminator at the last fixture.
  • Page 8 Pan/Tilt Speed 0-255 Pan/Tilt Speed 0-255 0-100% Red Green 0-255 0-100% Green Blue 0-255 0-100% Blue Amber 0-255 0-100% Amber Mixed Color No function 3-41 Macro 1 42-83 Macro 2 84-125 Macro 3 126-167 Macro 4 168-209 Macro 5 210-251 Macro 6 252-255 No function...
