FlatPAC Family
50 to 600 Watt
AC-DC Switchers
Product Description

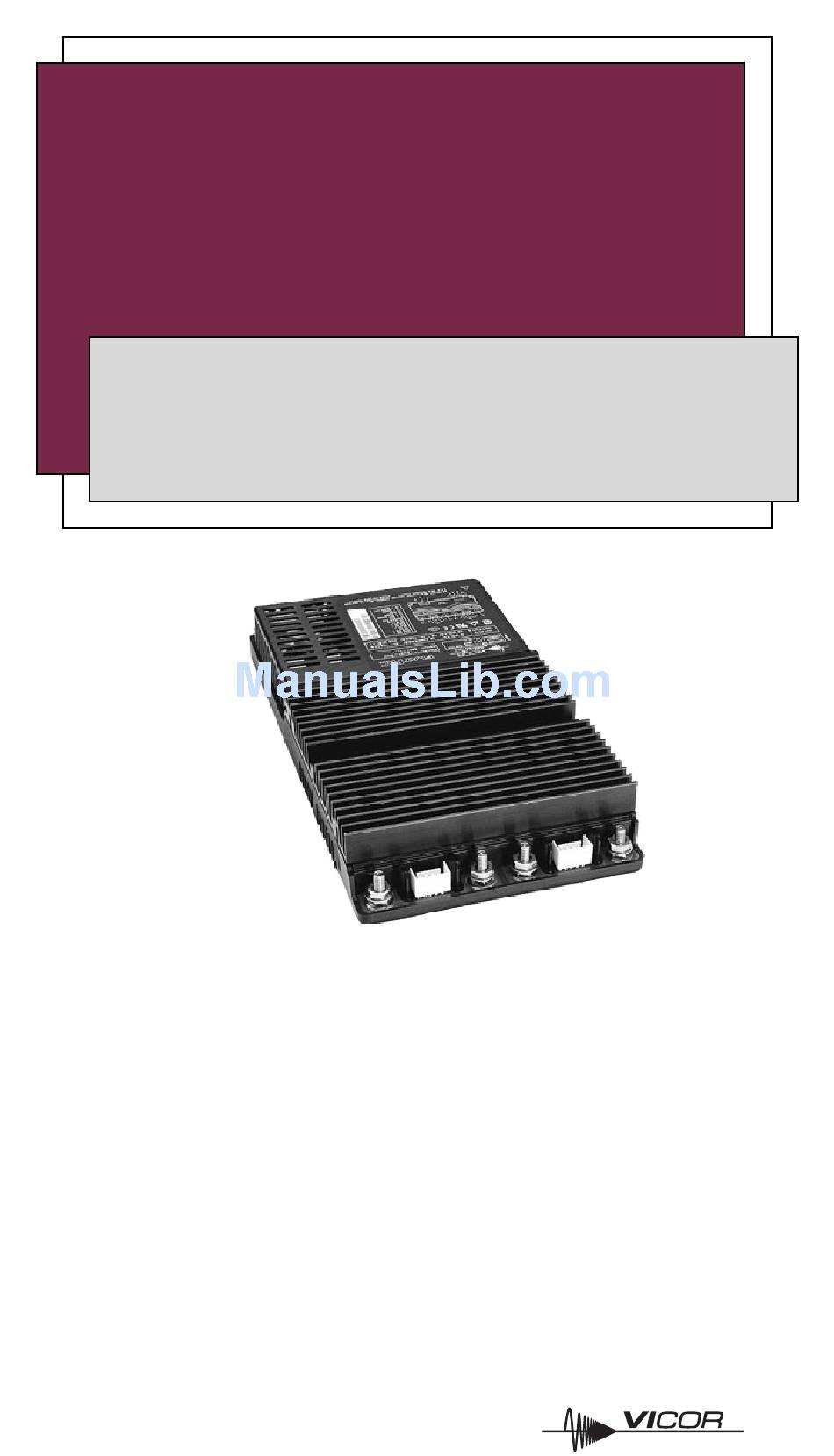

The FlatPAC family of user-definable offline power supplies provides a complete
power solution that incorporates one, two, or three standard Vicor DC-DC
converters and a front-end subassembly in a modular package. FlatPAC is available
with one, two, or three outputs and total output ratings of 50–600 W. These power
supplies feature an autoranging input, which automatically senses the input line
voltage and sets the power supply's input range accordingly. FlatPAC's unique
modular design accommodates over 10,000 different configurations.
FlatPAC power supplies that contain BatMod current source modules instead of
VI-200 converters are indicated by the suffix -BM following the FlatPAC part
number. BatMod converters provide a programmable output current, rather than a
regulated output voltage. Consequently, the output supervisory terminal functions
differ on FlatPACs with BatMod modules.
Functional and Mechanical Layout
Installation and Operation Guidelines
Application Notes
U-Series
Advertisement
Table of Contents
Related Manuals for VICOR FlatPAC Family AC
Summary of Contents for VICOR FlatPAC Family AC
-
Page 1: Application Notes
Product Description The FlatPAC family of user-definable offline power supplies provides a complete power solution that incorporates one, two, or three standard Vicor DC-DC converters and a front-end subassembly in a modular package. FlatPAC is available with one, two, or three outputs and total output ratings of 50–600 W. These power supplies feature an autoranging input, which automatically senses the input line voltage and sets the power supply’s input range accordingly. - Page 2 Application Notes AC Mains and Supervisory Connections MOD DIS – MOD DIS + Internal 2-Up AC OK – Supervisory AC OK + Circuits 3-Up (Optocouplers) BUS OK – BUS OK + 1-Up AC Mains L2/N Earth Ground Product is internally fused External Supervisory Functions (2-up and 3-up models only) 30mA max.
- Page 3 Timing Diagram—Status Signals (2-up and 3-up models only) > 90 (180)Vac LINE Line AC Line Interrupted AC OK BUS OK T0 T1 Conditions: Full Load 90 (180)Vac, AC Line Time Interval Units Notes T1-T0 T3-T2 – – Ride-through time T4-T2 –...
-
Page 4: Dual Output
FlatPAC units are shipped with pins 11-12 LU-Series Inputs and 14-15 connected via jumper plugs Single output (Vicor P/N 02589) for local sense. For 50-200 W remote sense, remove these connections MU-Series LU-Series and connect pins 10-12 and 14-16, as... -
Page 5: All Models
• Input supervisory terminals (1–6): use mating connector Vicor P/N 33100, – AMP P/N 644083-6 • Output supervisory terminals (11–15): use mating connector Vicor P/N 16385R, AMP P/N 644083-5 • AMP Termination Tool Pistol Grip Handle P/N 58074-1; with interchangeable head P/N 58246-1 •... - Page 6 Heat sink temperature is a function of the output power and voltage of the supply, ambient temperature, and airflow across the heat sink. Refer to the Vicor Applica tions Manual to determine the maximum ambient temperature for your application. Always use worst-case conditions when calculating operating temperature.
-
Page 7: For More Information
Part Number: 14137 For More Information The Vicor Applications Manual and product data sheet contain complete information about FlatPAC AC-DC power supplies. To receive literature or to consult an applications engineer about installation or operation of this product, contact your nearest Vicor office or visit the Vicor Website. - Page 8 Sie mit Hilfe des Vicor Applikationshandbuches die maximale Umgebungstemperatur Ihrer Applikation. Weitere Informationen. Das Vicor Applications Manual und Produkt-Datenblätter enthalten ausführliche Informationen über FlatPAC AC-DC Wandler. Fordern Sie bitte Unterlagen bei Vicor oder Ihrer nächsten Vicor Vertretung an. Visit Vicor’s Website at: vicorpower.com Vicor Corporation Andover, MA, U.S.A...
