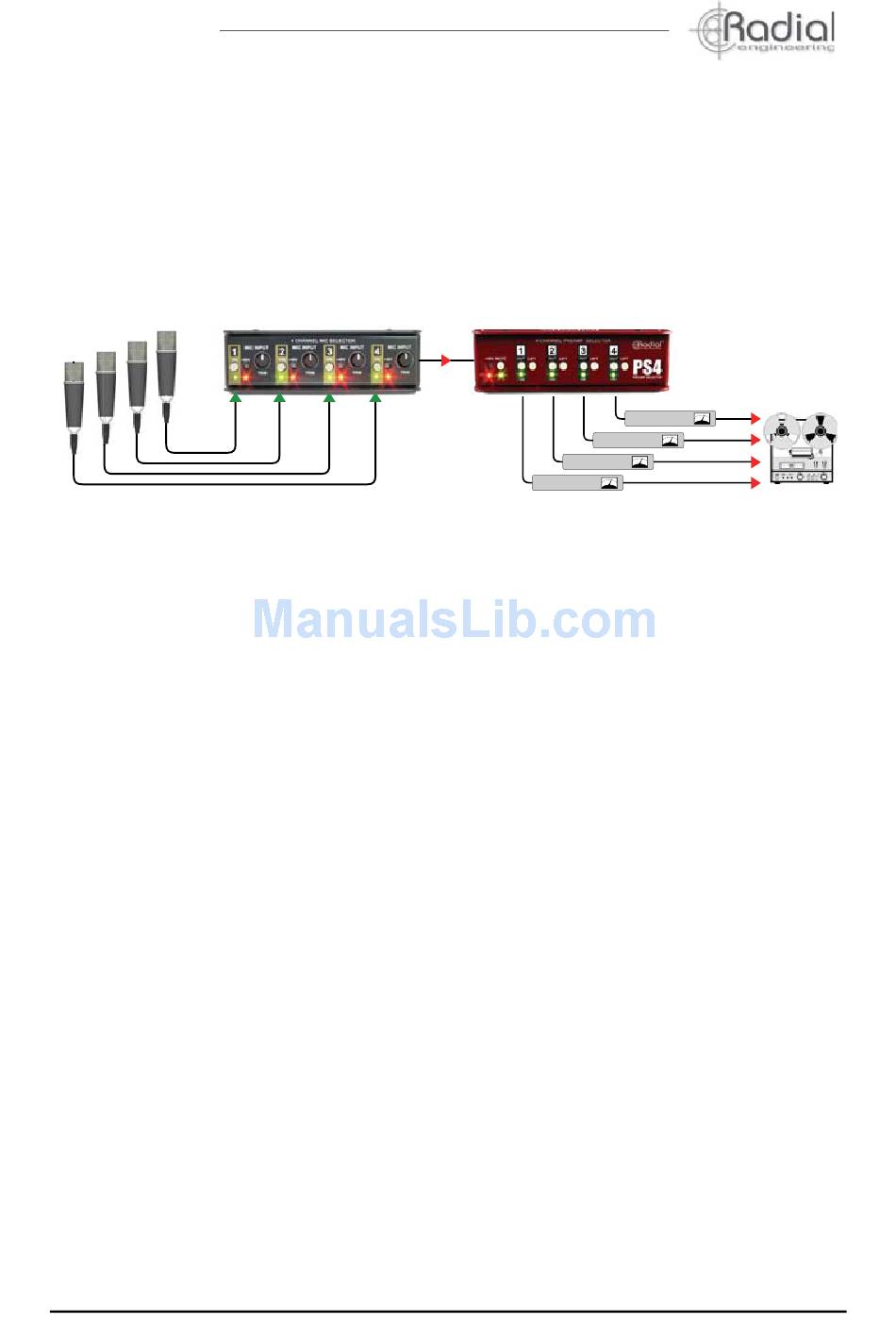

USING THE GOLD DIGGER TO COMPARE DI BOXES
You can also compare direct boxes following the same procedure. You would be surprised
at how different each DI can sound. In fact you may be surprised to fi nd that just like
microphones, DIs all have different personalities that can truly fl atter certain instruments or
render them listless
For even more fun, get a Radial Cherry Picker! This lets you compare various preamps to
fi nd the best one for a given vocal.
4
3
2
1
RADIAL GOLD DIGGER SPECIFICATIONS
Circuit Type .............................. Passive signal path with active relay switching
Frequency Response .............. 20Hz to 20kHz
THD + N .................................. 0.0003%
Dynamic range ........................ -140dBu
Equivalent Input Noise............. -115dBu
CMRR ...................................... -92db @ 55Hz
Input Impedance ...................... 600 Ohms nominal
Output Impedance ................... Same as source impedance
XLR Confi guration: .................. Follows AES spec: pin-1 ground, pin-2 hot (+), pin-3 cold (-)
Power requirement .................. 15VDC / 150mA (adapter supplied)
Size (W x H x D): ..................... 5.8" x 1.88" x 4.5" (148mm x 48mm x 115mm)
Weight ..................................... 2.1 lbs. (0.96 kg)
Warranty .................................. 3 years, transferable limited warranty
Radial Engineering Ltd.
MIC PREAMP 2
MIC PREAMP 3
MIC PREAMP 4
5
Gold Digger™ Microphone Selector
MIC PREAMP 1
®
