Locations of key components and connectors

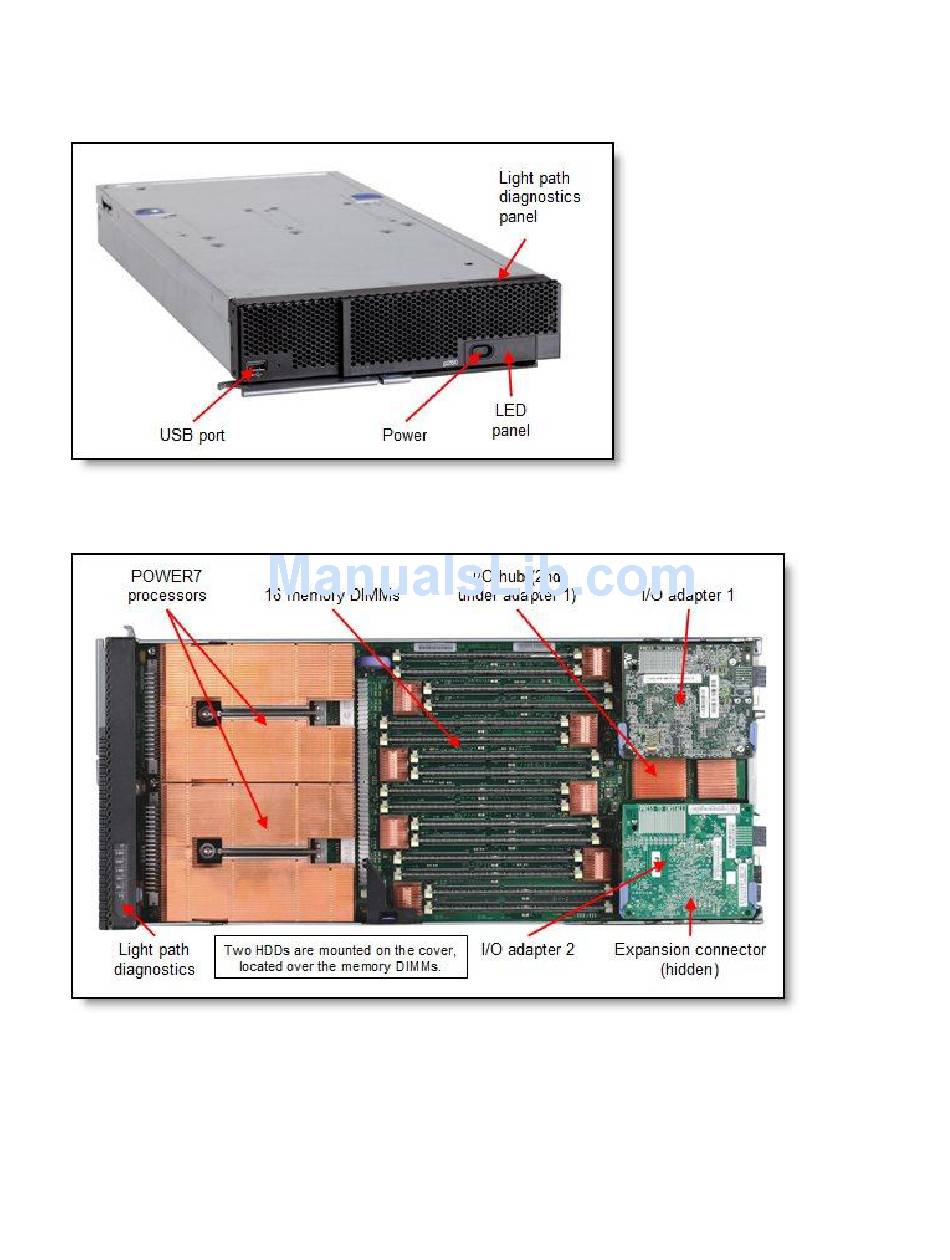

Figure 2 shows the front of the p260. The p24L is similar.
Figure 2. Front view of the IBM Flex System p260 Compute Node
Figure 3 shows the locations of key components inside the p260.
Figure 3. Inside view of the IBM Flex System p260 Compute Node
IBM Flex System p24L, p260 and p460 Compute Nodes
