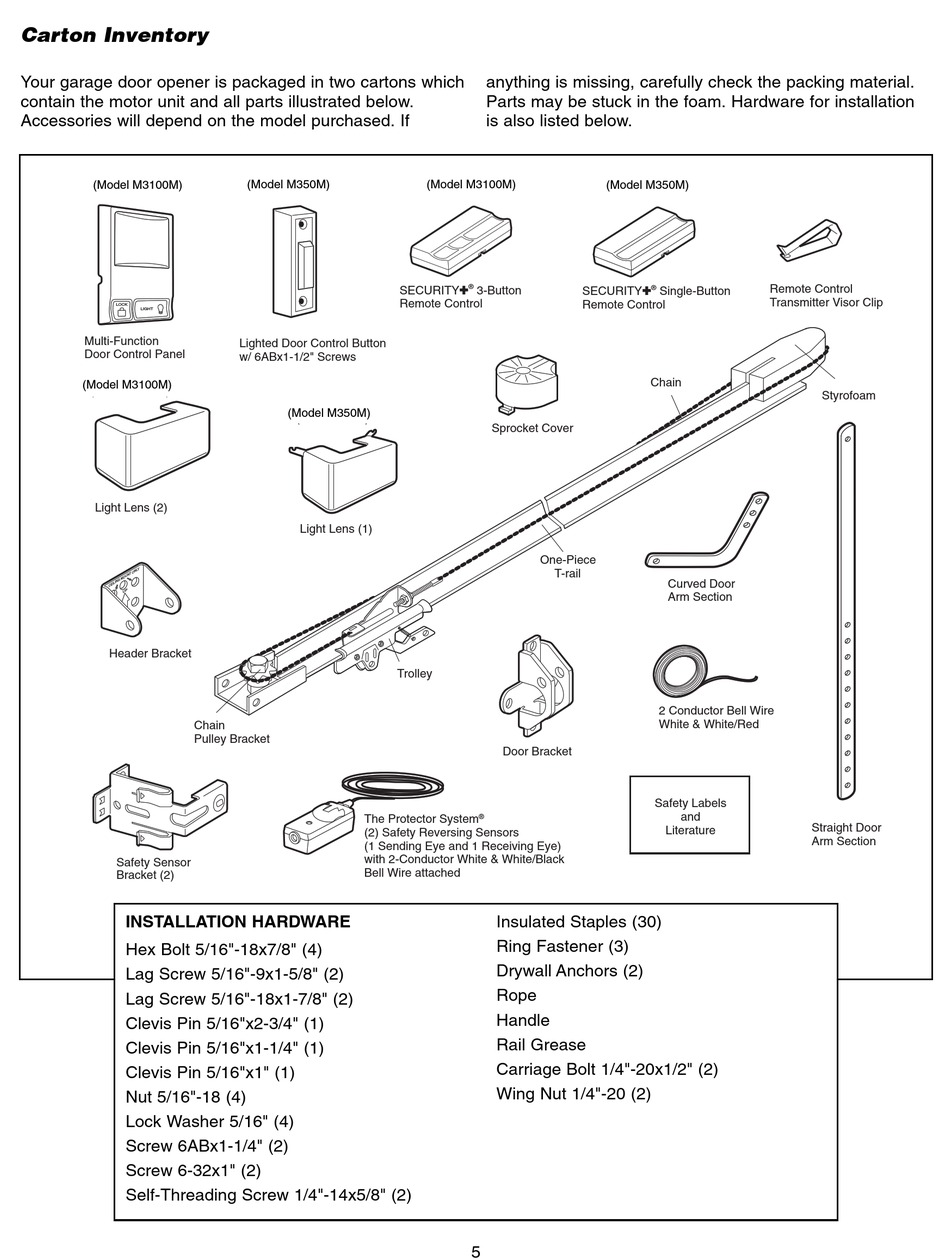

Carton Inventory

Your garage door opener is packaged in two cartons which
contain the motor unit and all parts illustrated below.
Accessories will depend on the model purchased. If
(Model M3100M)
(Model M3100)
Multi-Function
Door Control Panel
(Model M3100M)
(Model M3100)
Light Lens (2)
Header Bracket
Chain
Pulley Bracket
Safety Sensor
Bracket (2)
INSTALLATION HARDWARE
Hex Bolt 5/16"-18x7/8" (4)
Lag Screw 5/16"-9x1-5/8" (2)
Lag Screw 5/16"-18x1-7/8" (2)
Clevis Pin 5/16"x2-3/4" (1)
Clevis Pin 5/16"x1-1/4" (1)
Clevis Pin 5/16"x1" (1)
Nut 5/16"-18 (4)
Lock Washer 5/16" (4)
Screw 6ABx1-1/4" (2)
Screw 6-32x1" (2)
Self-Threading Screw 1/4"-14x5/8" (2)
(Model M350M)
(Model M350)
SECURITY✚
Remote Control
Lighted Door Control Button
w/ 6ABx1-1/2" Screws
(Model M350M)
(Model M350)
Light Lens (1)
Trolley
The Protector System
(2) Safety Reversing Sensors
(1 Sending Eye and 1 Receiving Eye)
with 2-Conductor White & White/Black
Bell Wire attached
anything is missing, carefully check the packing material.
Parts may be stuck in the foam. Hardware for installation
is also listed below.
(Model M3100M) (Model M350M)
(Model M3100)
®
3-Button
SECURITY✚
Remote Control
Sprocket Cover
One-Piece
T-rail
Door Bracket
®
Insulated Staples (30)
Ring Fastener (3)
Drywall Anchors (2)
Rope
Handle
Rail Grease
Carriage Bolt 1/4"-20x1/2" (2)
Wing Nut 1/4"-20 (2)
5
(Model M350)
Remote Control
®
Single-Button
Transmitter Visor Clip
Chain
Curved Door
Arm Section
2 Conductor Bell Wire
White & White/Red
Safety Labels
and
Literature
Styrofoam
Straight Door
Arm Section
