  • Page 1 ZIC2410 Series MeshConnect ZICM2410-EVB3 Evaluation Board Hardware Reference Guide 0007-05-08-03-001 (Rev C)

  • Page 2: Table Of Contents

    HEADPHONE / MICROPHONE JACKS ............ 15   4.10 ADDITIONAL JUMPER FUNCTIONS/CONNECTIONS ......16     REVISION HISTORY ..............17     APPENDIX-1: SCHEMATIC OF ZICM2410-EVB3 ....... 18   APPENDIX-2: BILL OF MATERIALS (ZICM2410-EVB3) ....19   Rev C Document No. 0007-05-08-03-001 Page 2 of 19...

  • Page 3: Introduction

    This document describes the hardware, features and functions of the CEL ZICM2410-EVB3 Evaluation Board, one of the major hardware components in the CEL ZICM2410P0-KIT2 evaluation kit. At the heart of the evaluation board is the ZICM2410P0 (or ZICM2410P2), CEL’s transceiver module solution for IEEE 802.15.4 wireless applications.

  • Page 4: Zicm2410-Evb3 Evaluation Board

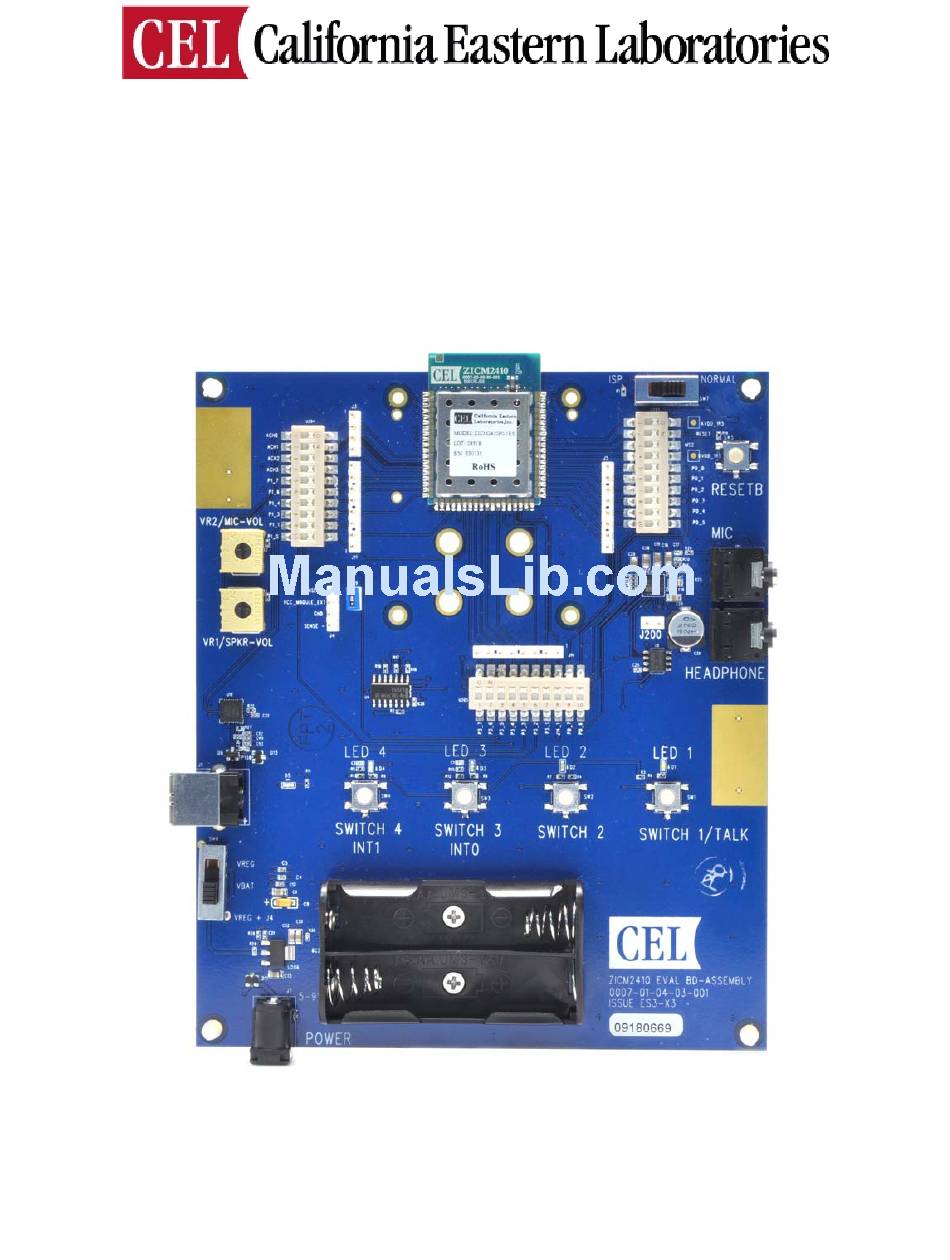

    CAUTION: Contains parts and assemblies susceptible to damage by Electrostatic Discharge (ESD) The ZICM2410-EVB3 is a PC interface board to which the ZICM2410P0 / ZICM2410P2 module has been mounted. A ZICM2410-EVB3 can be used to interface PC applications with the module, in order to program user applications to the ZICM2410.
  • Page 5 ZICM2410-EVB3 Hardware Reference Guide Table 1 – ZICM2410-EVB3 Descriptions / Functions of the Major Components Components Description / Function Microphone input and Headphone output for connection when using the evaluation Audio / Voice Jacks board’s voice / audio features. ZICM2410 Module ZICM2410 module.

  • Page 6: Meshconnect Zicm2410P0 Module

    CAUTION: Contains parts and assemblies susceptible to damage by Electrostatic Discharge (ESD) DESCRIPTION The ZICM2410P0 / ZICM2410P2 module is the primary active component/device under test of the ZICM2410-EVB3 evaluation board. Figure 2 shows the ZICM2410P0 / ZICM2410P2 modules, whose major components are as follows: ...

  • Page 7: Zicm2410P0 Module Connection

    ZICM2410-EVB3 Hardware Reference Guide ZICM2410P0 MODULE CONNECTION Table 2, Table 3 and Table 4 describe the ZICM2410P0 module pins and their connection to the DIP switches, which can be used for isolation (to disconnect the evaluation board from the ZICM2410P0). Also listed is the ZIC2410 (discrete IC) pin number. The tables also indicate the default settings of the isolation DIP switches (U203, U204 and U205) for operation with the pre- programmed application.
  • Page 8 ZICM2410-EVB3 Hardware Reference Guide Table 3 - ZICM2410 / EVB3 Connections, U205 PIN # MODULE U205 DESCRIPTION POSITION MODULE U205 NAME GPIO P3.7 P3_7 When U205:1 “ON” - Connected to SPI Bus on EVB3 GPIO P3.6 P3_6 When U205:2 “ON” - Connected to SPI Bus on EVB3 GPIO P3.5...
  • Page 9 ZICM2410-EVB3 Hardware Reference Guide Table 4 - ZICM2410 / EVB3 Connections, U203 PIN # U203 MODULE DESCRIPTION MODULE POSITION PIN NAME U203 GPIO P0.5 P0_5 When U203:10 “ON” - Connected to I2S Bus on EVB3 GPIO P0.4 P0_4 When U203:9 “ON” - Connected to I2S Bus on EVB3 GPIO P0.3...

  • Page 10: Zicm2410P2 Module Connection

    ZICM2410-EVB3 Hardware Reference Guide ZICM2410P2 MODULE CONNECTION Table 5, Table 6 and Table 7 describe the ZICM2410P2 module pins and their connection to the DIP switches, which can be used for isolation (to disconnect the evaluation board from the ZICM2410P2). Also listed is the ZIC2410 (discrete IC) pin number. The tables also indicate the default settings of the isolation DIP switches (U203, U204 and U205) for operation with the pre- programmed application.
  • Page 11 ZICM2410-EVB3 Hardware Reference Guide Table 6 - ZICM2410 / EVB3 Connections, U205 PIN # MODULE U205 DESCRIPTION MODULE POSITION U205 NAME GPIO P3.7 P3_7 When U205:1 “ON” - Connected to SPI Bus on EVB3 GPIO P3.6 P3_6 When U205:2 “ON” - Connected to SPI Bus on EVB3 GPIO P3.5...
  • Page 12 ZICM2410-EVB3 Hardware Reference Guide Table 7 - ZICM2410 / EVB3 Connections, U203 PIN # U203 MODULE DESCRIPTION MODULE U203 POSITION PIN NAME GPIO P0.5 P0_5 When U203:10 “ON” - Connected to I2S Bus on EVB3 GPIO P0.4 P0_4 When U203:9 “ON” - Connected to I2S Bus on EVB3 GPIO P0.3...

  • Page 13: On Board Resources

    If this occurs, simply press the RESETB button. RESET The ZICM2410-EVB3, by default, has the switch labeled ‘RESETB’ (SW5) connected to the ‘RESET#’ pin of the ZICM2410 module. When pressed, the ZIC2410 will be reset. Using the isolation DIP switches (U203:2), SW5 can be disconnected and external circuitry added.

  • Page 14: Power Header (J4)

    LEDs Figure 5 - Photo, LEDs The ZICM2410-EVB3 includes four colored LEDs. They are connected to various GPIOs of the ZICM2410 module through an inverter as shown in Figure 6. To turn on a LED, the corresponding GPIO pin must be set high. To turn off a LED, the GPIO pin must be cleared (set low).

  • Page 15: Pushbutton Switches

    / voice data uses the ZIC2410’s I2S interface. HEADPHONE / MICROPHONE JACKS The ZICM2410-EVB3 is equipped with two 3.5 mm jacks, one for headphones and one for a microphone input. The evaluation board has been optimized for headphones with 32 Ω...

  • Page 16: Additional Jumper Functions/Connections

    ZICM2410-EVB3 Hardware Reference Guide impedance and single-ended microphones with 2.2 kΩ impedance. 4.10 ADDITIONAL JUMPER FUNCTIONS/CONNECTIONS Table 12 –Functions/Connections of Other Jumpers/Connectors Jumper Function Description Analog Input Pins 4-pin connector ACH0 ACH1 The four ADC input channels are available on this connector. ACH0 ACH2 and ACH1 are connected to VR1 and VR2 respectively.

  • Page 17: Revision History

    ZICM2410-EVB3 Hardware Reference Guide 5 REVISION HISTORY Revision Date Description 11Jun09 Released Updated to support the use of a ZICM2410P2 module on the EVB3 18Sep09 evaluation board. 24Sep10 Removed references to ZigBee. Rev C Document No. 0007-05-08-03-001 Page 17 of 19...

  • Page 18: Appendix-1: Schematic Of Zicm2410-Evb3

    LNJ414 POWER Reset Button Drawing Title: LNJ326 ZICM2410 EVAL BD ASSEMBLY SCHEMATIC Size Document Number LNJ926 ISSUE 0007-01-01-03-001 ES3-X2 LEDs Date: Sept 6, 2008 Sheet Figure 9 – Diagram, ZICM2410-EVB3 Schematic Rev C Document No. 0007-05-08-03-001 Page 18 of 19...

  • Page 19: Appendix-2: Bill Of Materials (Zicm2410-Evb3)

    ZICM2410-EVB3 Hardware Reference Guide APPENDIX-2: BILL OF MATERIALS (ZICM2410-EVB3) (CEL Doc # 0007-01-02-03-001 Issue ES-X3) This document is subject to revision without notification. Table 13 – BOM, ZICM2410-EVB3 Rev C Document No. 0007-05-08-03-001 Page 19 of 19...
