THC63LVDM83D / THC63LVDF(R)84C Evaluation Kit
1.General Description
THEVAM83D and, THEVAF(R)84C boards are
designed to support video data transmission
between the host and display. One high-speed lane
can carry up to 24bits data and 3bits of
synchronizing signals at a pixel clock frequency
from 8MHz to 160MHz.
Table 1 Clock Frequency
Type Parts Number
Tx THEVAM83D
Rx THEVAF(R)84C
3. Overview

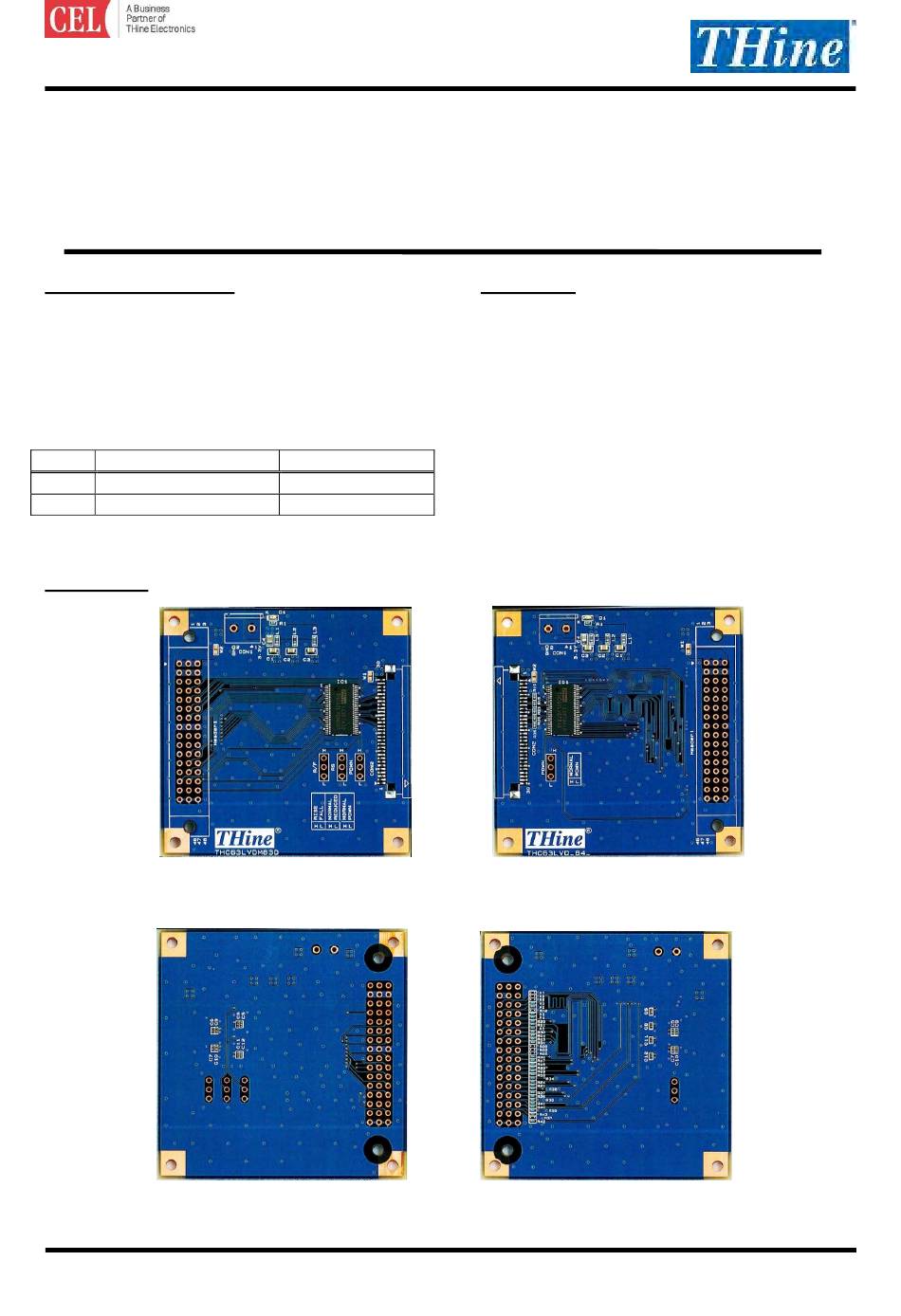

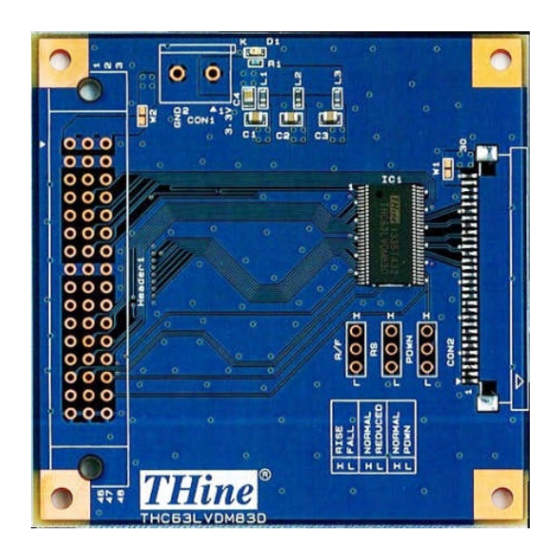

(a) THEVAM83D (Top Side)
(a) THEVAM83D (Bottom Side)
Figure 2 THEVAM83D and THEVAF(R)84C Bottom Side View
Copyright(C) 2015 THine Electronics, Inc.
LVDS Single Link Evaluation Board
Parts Number: THEVAM83D, THEVAF(R)84C
TTL Clock Freq.
8MHz to 160MHz
8MHz to 112MHz
Figure 1 THEVAM83D and THEVAF(R)84C Top Side View
2. Features
・Compatible with TIA/EIA-644 LVDS Standard
・7:1 LVDS Transmitter and Receiver
・Single power supply
・Power Down Mode
< THEVAM83D>
･LVDS swing is reducible as 200mV by RS-pin
to reduce EMI and power consumption.
･ Input clock triggering edge is selectable by
R/F-pin
< THEVAF84C>･Falling Edge Clock
< THEVAR84C>･Rising Edge Clock
(b) THEVAF(R)84C (Top Side)
(b)THEVAF(R)84C (Bottom Side)
1/9
